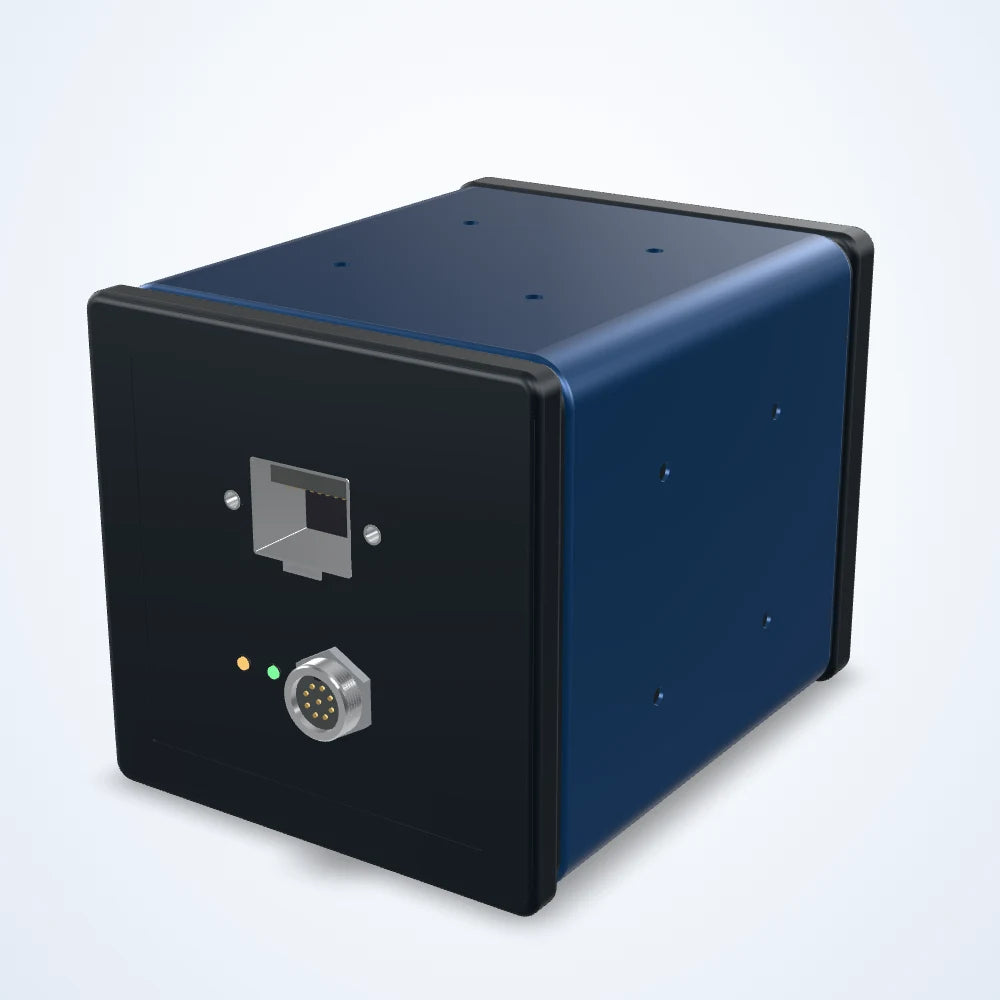

65 MP GigE area scan camera, GMAX3265, global shutter, 2 fps, M58

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

65 MP GigE area scan camera, GMAX3265, global shutter, 2 fps, M58 (LS-CMR-0070)

Model LS-CMR-0070

Resolution9344px x 7000px
Sensor29.9mmx22.4 mm
InterfaceGigE
Speed1.7 fps
Lens mountM58
Pixel size3.2 μm x 3.2 μm

$4,970.00

Ships in 3-4 weeks

0.78 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

65 MP area scan camera for inspection, measurement and guidance on the production line. GMAX3265 CMOS sensor; up to 2 frames per second; global shutter; GigE interface; M58 lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0070

Sensor and imaging

Resolution	9344px x 7000px
Pixel size	3.2 μm x 3.2 μm
Max. frame rate	1.7 fps
Sensor make	GPIXEL
Sensor model	GMAX3265
Shutter	Global Shutter
Sensor size	29.9mmx22.4 mm
Sensor type	CMOS
Dynamic range	66 dB
Pixel bit depth	12 bit
SNR	40.0 dB

Interfaces and I/O

Data interface	GigE
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 50°C(Working), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	DC 12-24 V
Power consumption	24 V@8.5 W

Mechanical

Dimensions	72 mm x 72 mm x 92.13 mm
Lens mount	M58-Mount FBL12
Weight	482g
