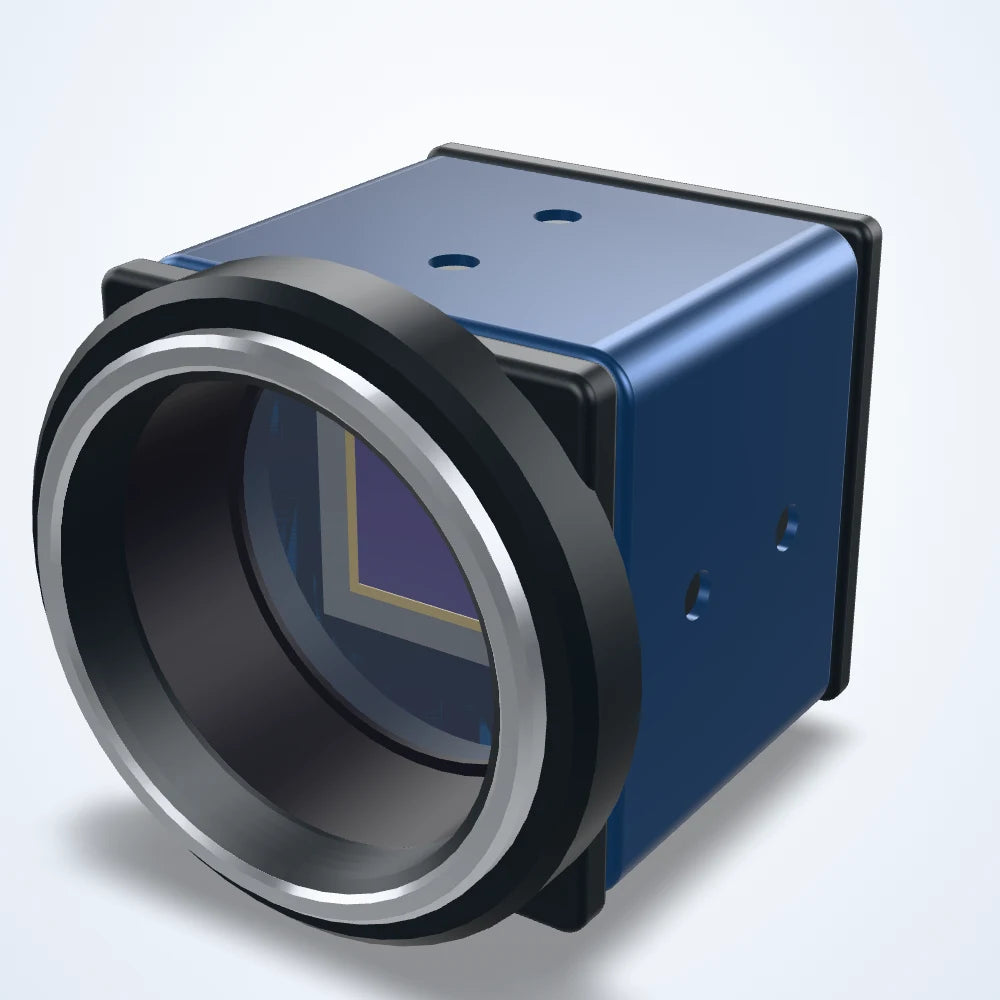

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

19 MP GigE area scan camera, IMX183, 1" rolling shutter, 5.9 fps (LS-CMR-0060)

Model LS-CMR-0060

Resolution5472 px x 3468 px
Sensor1"
InterfaceUSB3.0
Speed19.2 fps
Lens mountC-mount
Pixel size2.4 μm x 2.4 μm

$700.00

Ships in 3-4 weeks

0.25 kg shipping weight

Not available in the United States. Available for delivery to other countries.

19 MP area scan camera for inspection, measurement and guidance on the production line. IMX183 CMOS sensor (1"); 5472 x 3468 pixels of 2.4 μm; up to 5.9 frames per second; rolling shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0060

Sensor and imaging

Resolution	5472 px x 3468 px
Pixel size	2.4 μm x 2.4 μm
Max. frame rate	19.2 fps
Sensor make	Sony
Sensor model	IMX183
Shutter	Rolling Shutter
Sensor size	1"
Sensor type	CMOS
Pixel bit depth	8 / 10 / 12 bits
Dynamic range	65.5 dB

Interfaces and I/O

Data interface	USB3.0
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 60°C(Operating), -30 - 70°C(Storage)
Certification	USB3 Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	DC 9-24 V, Supporting USB
Power consumption	Monochrome: 12 V @2.4 W

Mechanical

Dimensions	29.0 × 29.0 × 30.0 mm
Lens mount	C-mount
Weight	80g
Mounting holes	4-M2X3; 3-M3X3; 2-M2X3; 2-M3X3
