5.3 MP GigE area scan camera, XGS5000, 2/3" global shutter, 21 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5.3 MP GigE area scan camera, XGS5000, 2/3" global shutter, 21 fps (LS-CMR-0033)

Model LS-CMR-0033

Resolution2592 px x 2048 px
Sensor2/3"
InterfaceGigE
Speed21 fps
Lens mountC-mount
Pixel size3.2 μm x 3.2 μm

$471.00

Ships in 3-4 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

5.3 MP area scan camera for inspection, measurement and guidance on the production line. XGS5000 CMOS sensor (2/3"); 2592 x 2048 pixels of 3.2 μm; up to 21 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0033

Sensor and imaging

Resolution	2592 px x 2048 px
Pixel size	3.2 μm x 3.2 μm
Max. frame rate	21 fps
Sensor make	ONSEMI
Sensor model	XGS5000
Shutter	Global Shutter
Sensor size	2/3"
Sensor type	CMOS
Exposure time	25 μs ~ 10 s
SNR	>38.0 dB
Pixel bit depth	12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	PoE or 6-24 VDC

Mechanical

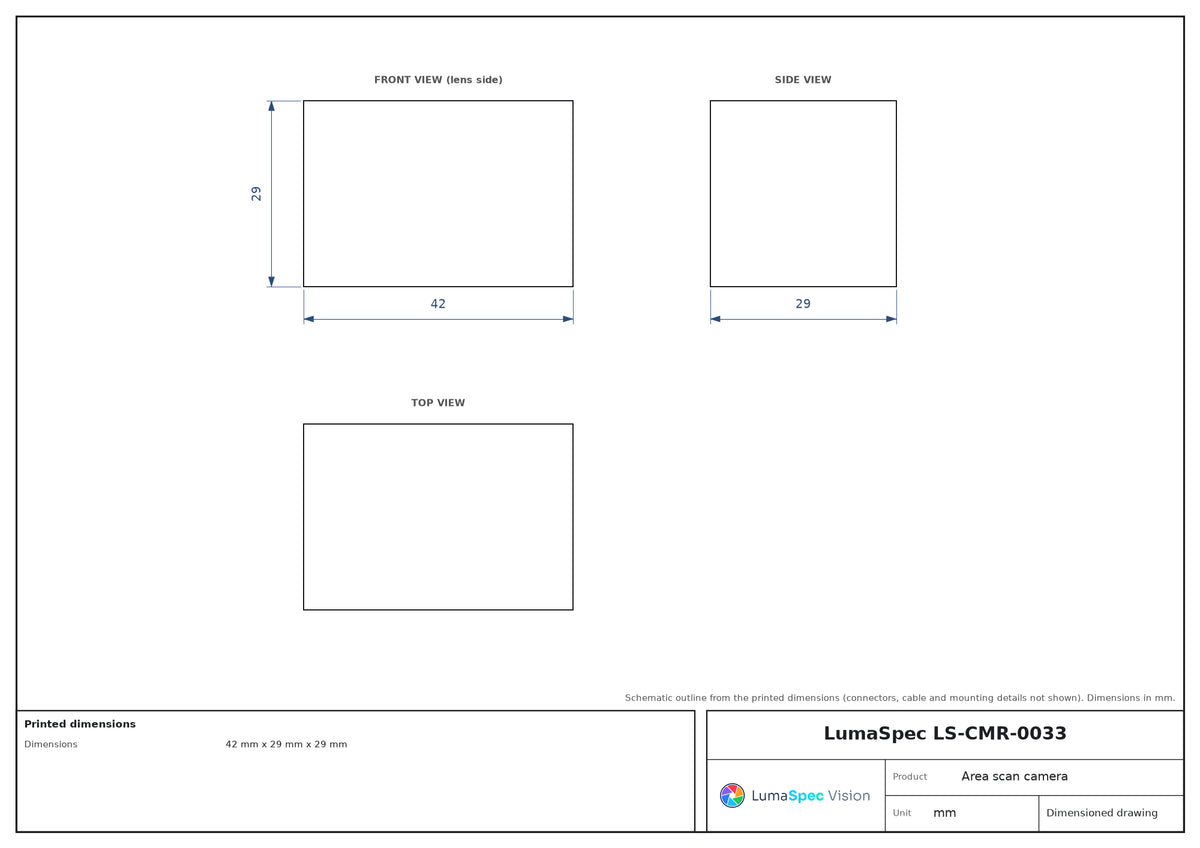

Dimensions	42 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	88g
