0.5 MP GigE area scan camera, PYTHON500, 1/3.6" global shutter, 200 fps
  • 0.5 MP GigE area scan camera, PYTHON500, 1/3.6" global shutter, 200 fps
  • 0.5 MP GigE area scan camera, PYTHON500, 1/3.6" global shutter, 200 fps
  • 0.5 MP GigE area scan camera, PYTHON500, 1/3.6" global shutter, 200 fps

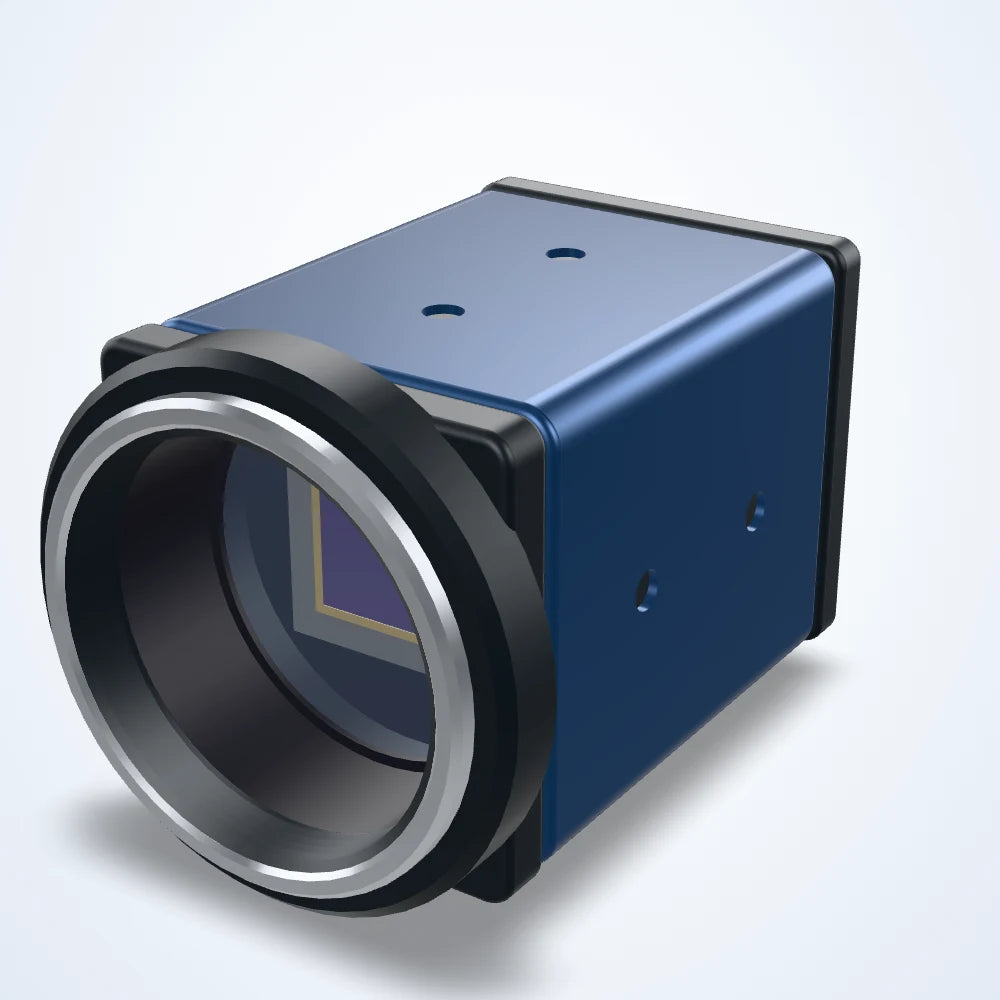

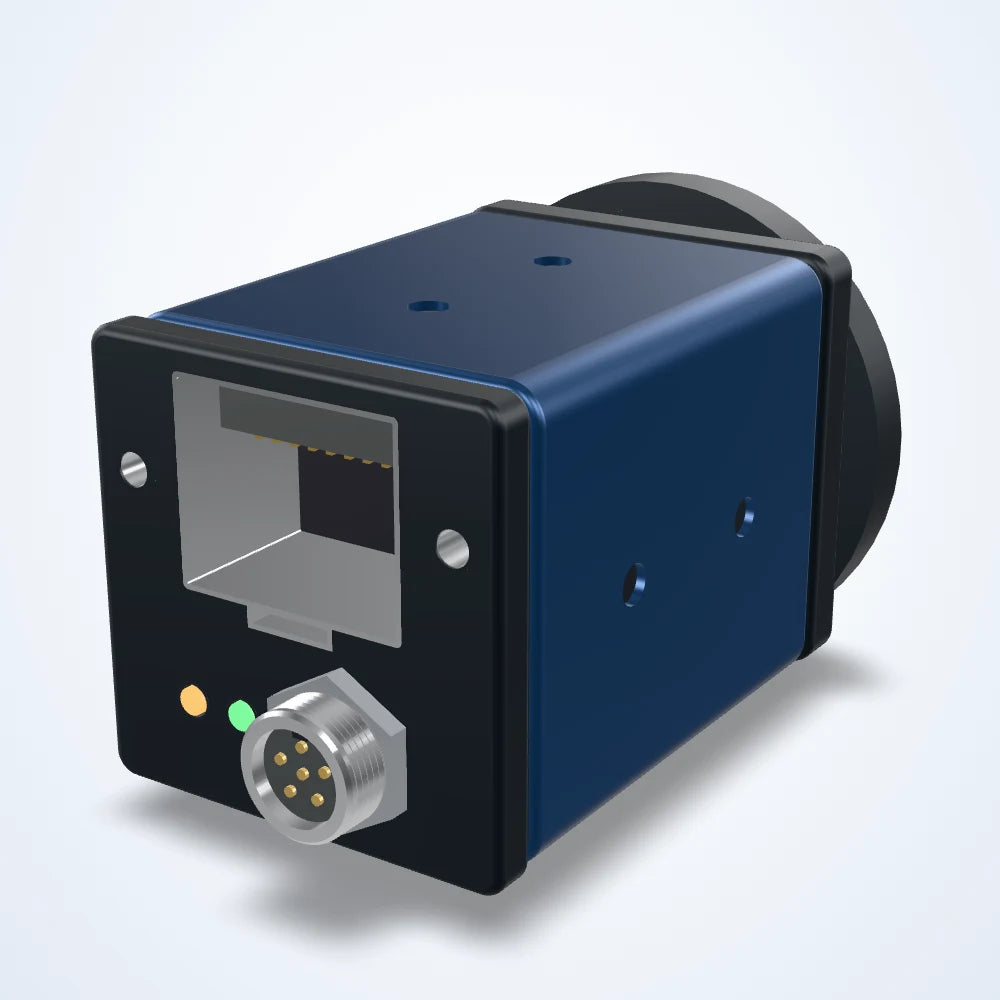

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

0.5 MP GigE area scan camera, PYTHON500, 1/3.6" global shutter, 200 fps (LS-CMR-0012)

Model LS-CMR-0012

  • Resolution800 px x 600 px
  • Sensor1/3.6"
  • InterfaceGigE
  • Speed200 fps
  • Lens mountC-mount
  • Pixel size4.8 μm x 4.8 μm
$375.00

Ships in 3-4 weeks

0.26 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.5 MP GigE area scan camera, PYTHON500, 1/3.6" global shutter, 200 fps (LS-CMR-0012)LS-CMR-0012

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.5 MP area scan camera for inspection, measurement and guidance on the production line. PYTHON500 CMOS sensor (1/3.6"); 800 x 600 pixels of 4.8 μm; up to 200 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0012

Sensor and imaging

Resolution800 px x 600 px
Pixel size4.8 μm x 4.8 μm
Max. frame rate200 fps
Sensor makeON Semiconductor
Sensor modelPYTHON 500
ShutterGlobal Shutter
Sensor size1/3.6"
Sensor typeCMOS
Dynamic range60.0 dB
SNR>38.0 dB
Pixel bit depth8 / 10 bits

Interfaces and I/O

Data interfaceGigE
Digital I/OOpto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationGigE Vision and GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger modeSoft Trigger,Hardware Trigger,Free Run
Power supplyPoE or 6-24 VDC
Power consumption12 V @ ≈3.3 W

Mechanical

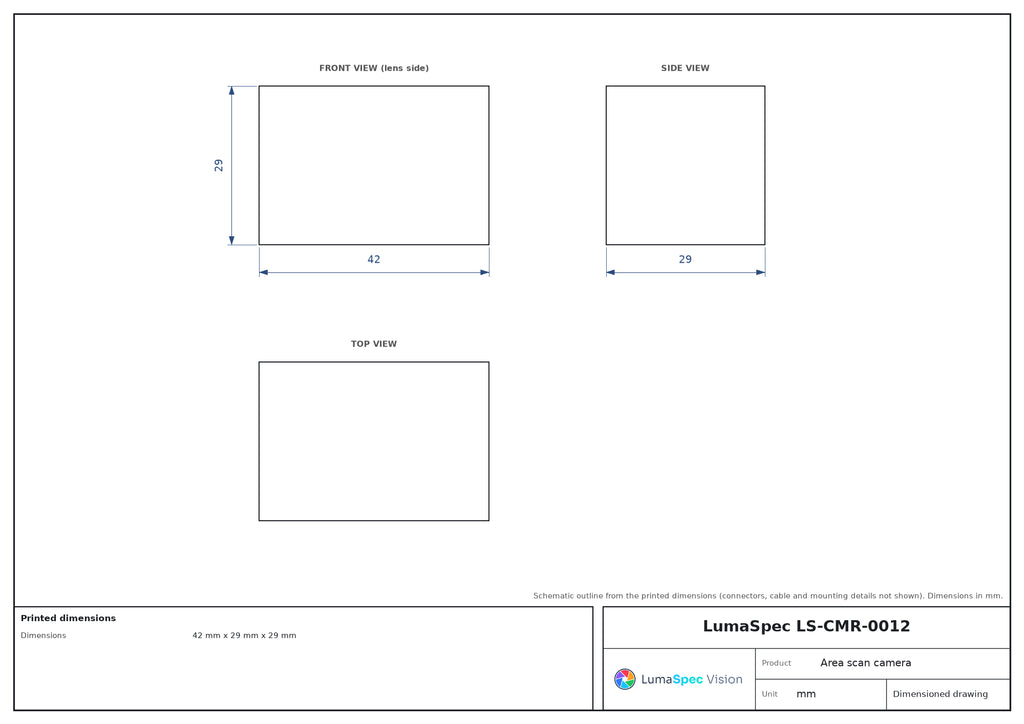

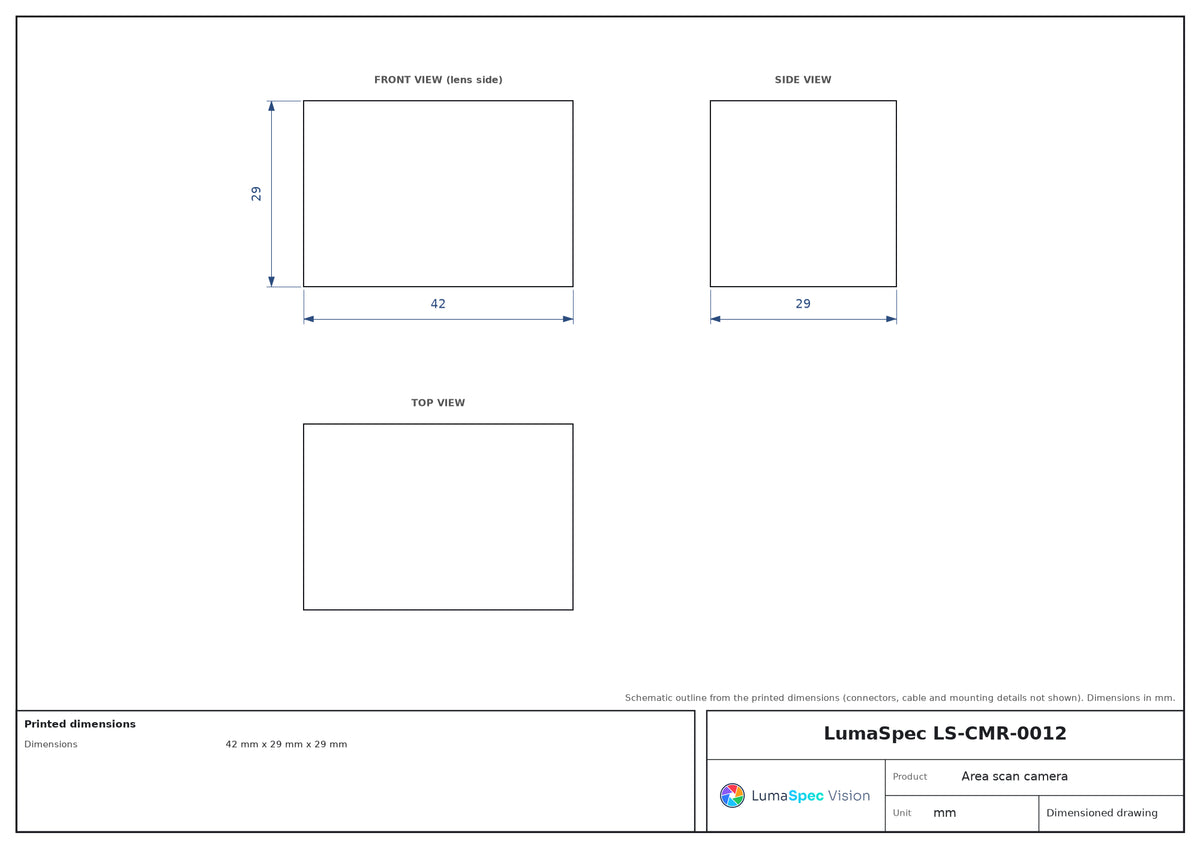

Dimensions42 mm x 29 mm x 29 mm
Lens mountC-mount (CS-Mount can be customized )
Weight88g

Other models in the GigE area scan cameras (LS-CMR-S03) series

See all 64 models
ModelSize / key dataPriceAvailabilityLink
LS-CMR-0034 5 MP, 1/2.5", GigE, Mono $340.00 Ships in 3-4 weeks View
LS-CMR-0006 0.3 MP, 1/4", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0007 0.4 MP, 1/2.9", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0008 0.4 MP, 1/2.9", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0010 0.5 MP, 1/3.6", GigE, Mono $350.00 Ships in 3-4 weeks View
LS-CMR-0011 0.5 MP, 1/3.6", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0013 1.2 MP, 1/3", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0023 2.1 MP, 1/2.8", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0046 6.3 MP, 1/1.8", GigE, Mono/Color $350.00 Ships in 3-4 weeks View
LS-CMR-0017 1.3 MP, 1/2", GigE, Mono/Color $360.00 Ships in 3-4 weeks View
LS-CMR-0047 6.3 MP, 1/1.8", GigE, Mono/Color $360.00 Ships in 3-4 weeks View
LS-CMR-0045 6.3 MP, 1/1.8", GigE, Mono/Color $370.00 Ships in 3-4 weeks View
LS-CMR-0019 1.6 MP, 1/2.9", GigE, Mono/Color $395.00 Ships in 3-4 weeks View
LS-CMR-0036 5 MP, 1/2.5", GigE, Mono/Color $400.00 Ships in 3-4 weeks View
LS-CMR-0037 5 MP, 1/2.5", GigE, Mono/Color $400.00 Ships in 3-4 weeks View
LS-CMR-0035 5 MP, 2/3", GigE, Mono/Color $470.00 Ships in 3-4 weeks View
LS-CMR-0041 5 MP, 2/3", GigE, Mono $470.00 Ships in 3-4 weeks View
LS-CMR-0042 5 MP, 2/3", GigE, Color $470.00 Ships in 3-4 weeks View
LS-CMR-0033 5.3 MP, 2/3", GigE, Mono/Color $471.00 Ships in 3-4 weeks View
LS-CMR-0024 2.3 MP, 1/1.2", GigE, Mono/Color $500.00 Ships in 3-4 weeks View
LS-CMR-0030 3.1 MP, 1/1.8", GigE, Color/Mono $520.00 Ships in 3-4 weeks View
LS-CMR-0026 2.3 MP, 1/2.2", GigE, Mono $535.00 Ships in 3-4 weeks View
LS-CMR-0043 5 MP, 2/3", GigE, Mono/Color $550.00 Ships in 3-4 weeks View
LS-CMR-0053 12 MP, 1/1.7", GigE, Mono/Color $560.00 Ships in 3-4 weeks View
