5 MP GigE area scan camera, MT9P031, 1/2.5" rolling shutter, 14 fps

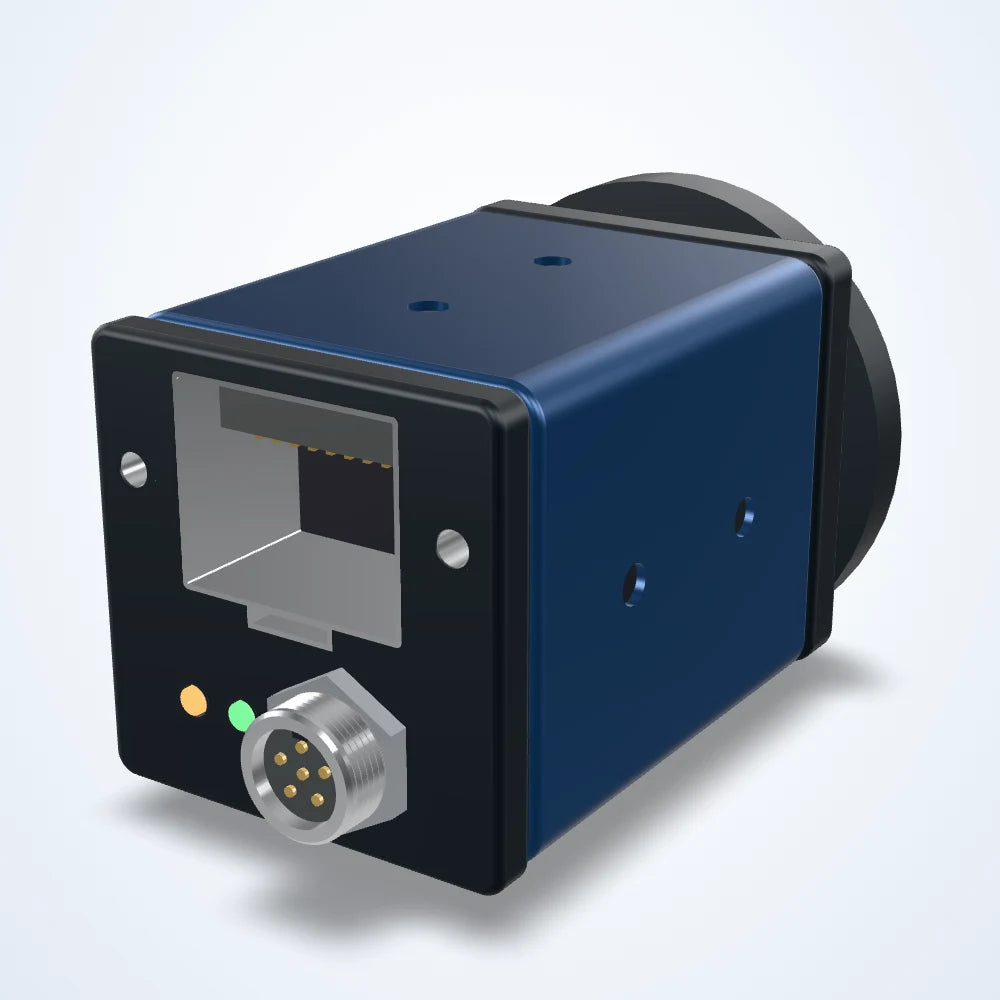

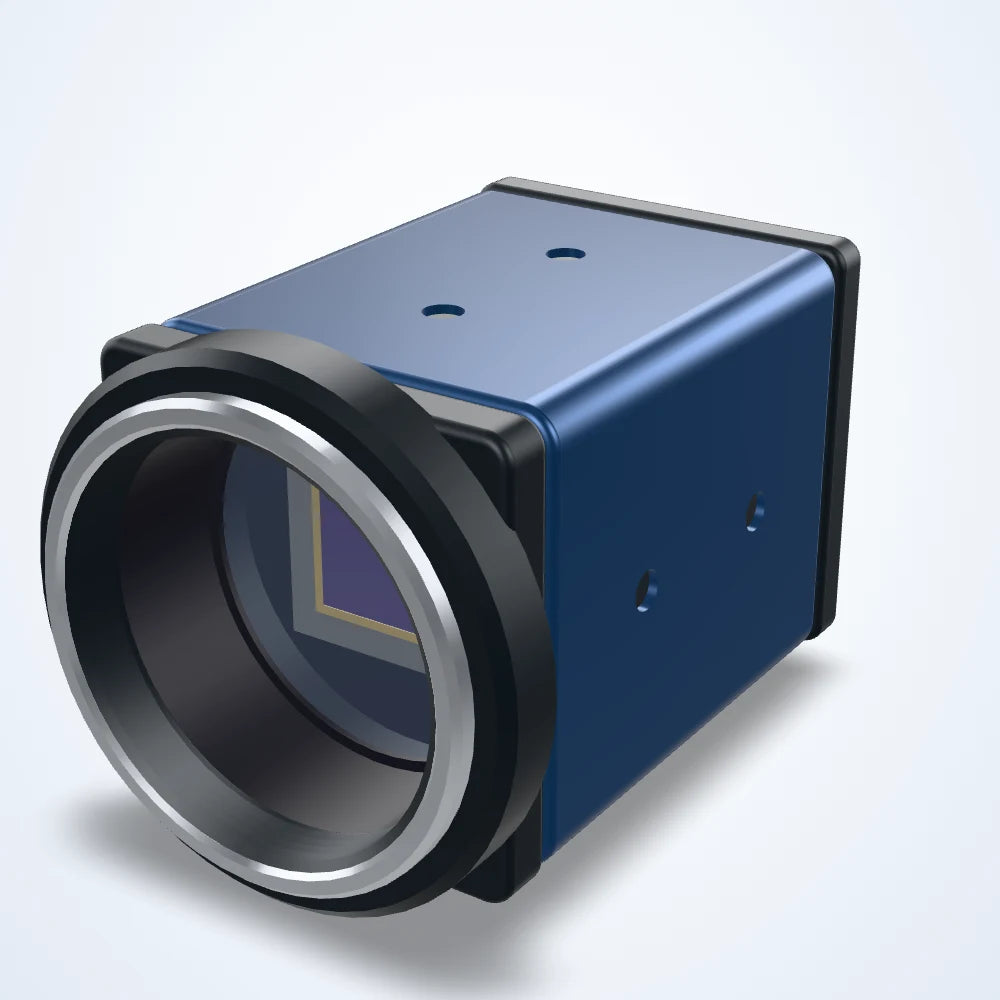

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5 MP GigE area scan camera, MT9P031, 1/2.5" rolling shutter, 14 fps (LS-CMR-0034)

Model LS-CMR-0034

Resolution2592 px x 1944 px
Sensor1/2.5"
InterfaceGigE
Speed14 fps
Lens mountC-mount
Pixel size2.2 μm x 2.2 μm

$340.00

Ships in 3-4 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

5 MP area scan camera for inspection, measurement and guidance on the production line. MT9P031 CMOS sensor (1/2.5"); 2592 x 1944 pixels of 2.2 μm; up to 14 frames per second; rolling shutter; GigE interface; C-mount lens mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0034

Sensor and imaging

Resolution	2592 px x 1944 px
Pixel size	2.2 μm x 2.2 μm
Max. frame rate	14 fps
Sensor make	Aptina
Sensor model	MT9P031
Shutter	Rolling Shutter
Sensor size	1/2.5"
Sensor type	CMOS
Dynamic range	Support DOL mode HDR
Pixel bit depth	10 bit

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), 1 output(opto-isolated)

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	PoE or 6-24 VDC

Mechanical

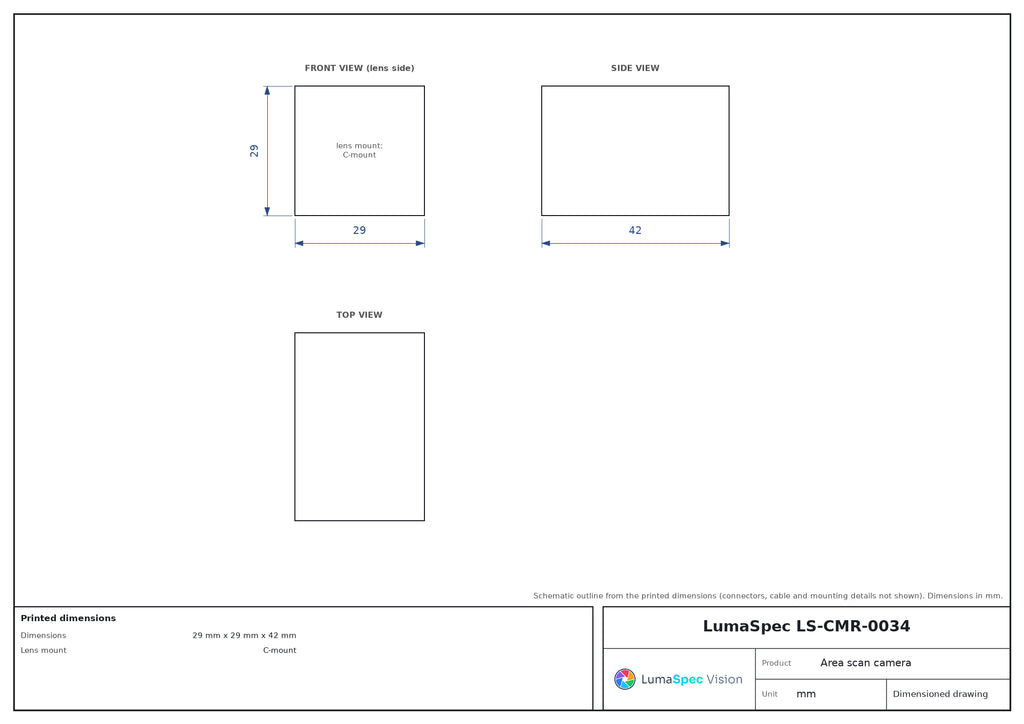

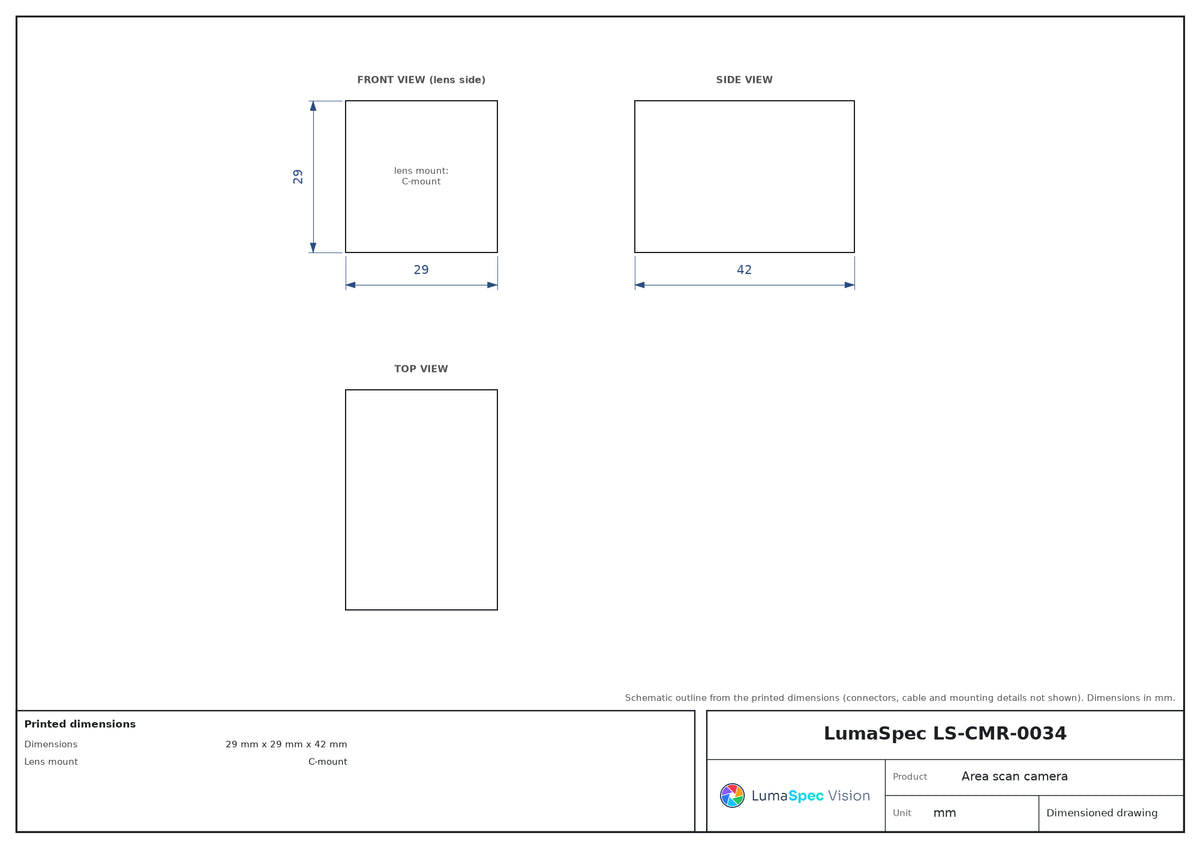

Dimensions	29 mm x 29 mm x 42 mm
Lens mount	C-mount
Weight	88g
