5 MP GigE area scan camera, IMX264, 2/3" global shutter, 20 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5 MP GigE area scan camera, IMX264, 2/3" global shutter, 20 fps (LS-CMR-0035)

Model LS-CMR-0035

Resolution2448 px x 2048 px
Sensor2/3"
InterfaceGigE
Speed20 fps
Lens mountC-mount
Pixel size3.45 μm x 3.45 μm

$470.00

Ships in 3-4 weeks

0.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

5 MP area scan camera for inspection, measurement and guidance on the production line. IMX264 CMOS sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 20 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0035

Sensor and imaging

Resolution	2448 px x 2048 px
Pixel size	3.45 μm x 3.45 μm
Max. frame rate	20 fps
Sensor make	Sony
Sensor model	IMX 264
Shutter	Global Shutter
Sensor size	2/3"
Sensor type	CMOS
Dynamic range	60.0 dB
SNR	>38.5 dB
Pixel bit depth	8 / 10 / 12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	1× Opto-isolated input, 1× Opto-isolated output, 1× configurable input and output

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	PoE or 6-24 VDC
Power consumption	12 V @ ≈3.2 W

Mechanical

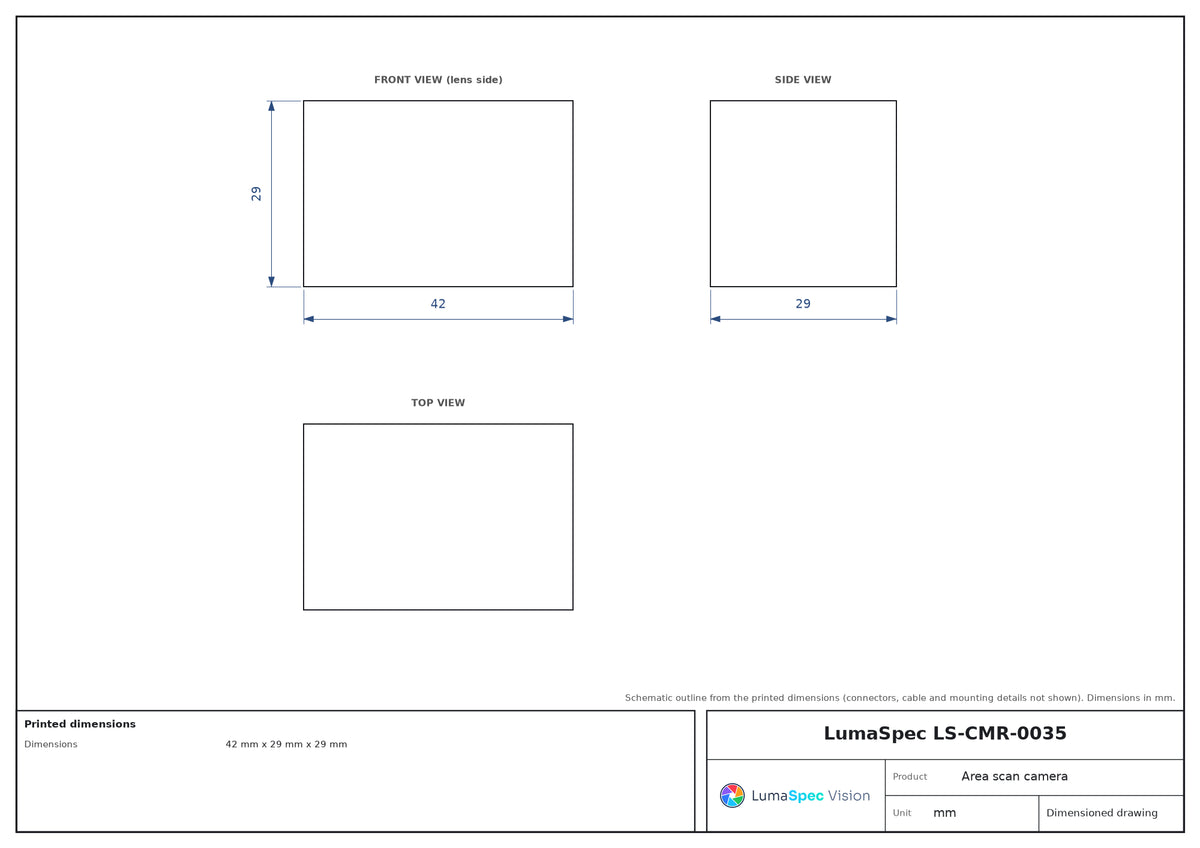

Dimensions	42 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	88g
