12 MP GigE area scan camera, IMX226, 1/1.7" rolling shutter, 9 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

12 MP GigE area scan camera, IMX226, 1/1.7" rolling shutter, 9 fps (LS-CMR-0053)

Model LS-CMR-0053

Resolution4000 px x 3000 px
Sensor1/1.7"
InterfaceGigE
Speed9 fps
Lens mountC-mount
Pixel size1.85 μm x 1.85 μm

$560.00

Ships in 3-4 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

12 MP area scan camera for inspection, measurement and guidance on the production line. IMX226 CMOS sensor (1/1.7"); 4000 x 3000 pixels of 1.85 μm; up to 9 frames per second; rolling shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0053

Sensor and imaging

Resolution	4000 px x 3000 px
Pixel size	1.85 μm x 1.85 μm
Max. frame rate	9 fps
Sensor make	Sony
Sensor model	IMX 226
Shutter	Rolling Shutter
Sensor size	1/1.7"
Sensor type	CMOS
Dynamic range	60.0 dB
SNR	>38.5 dB
Pixel bit depth	8 / 10 / 12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), 1 output(opto-isolated)

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	PoE or 6-24 VDC
Power consumption	12 V @ ≈3.4 W

Mechanical

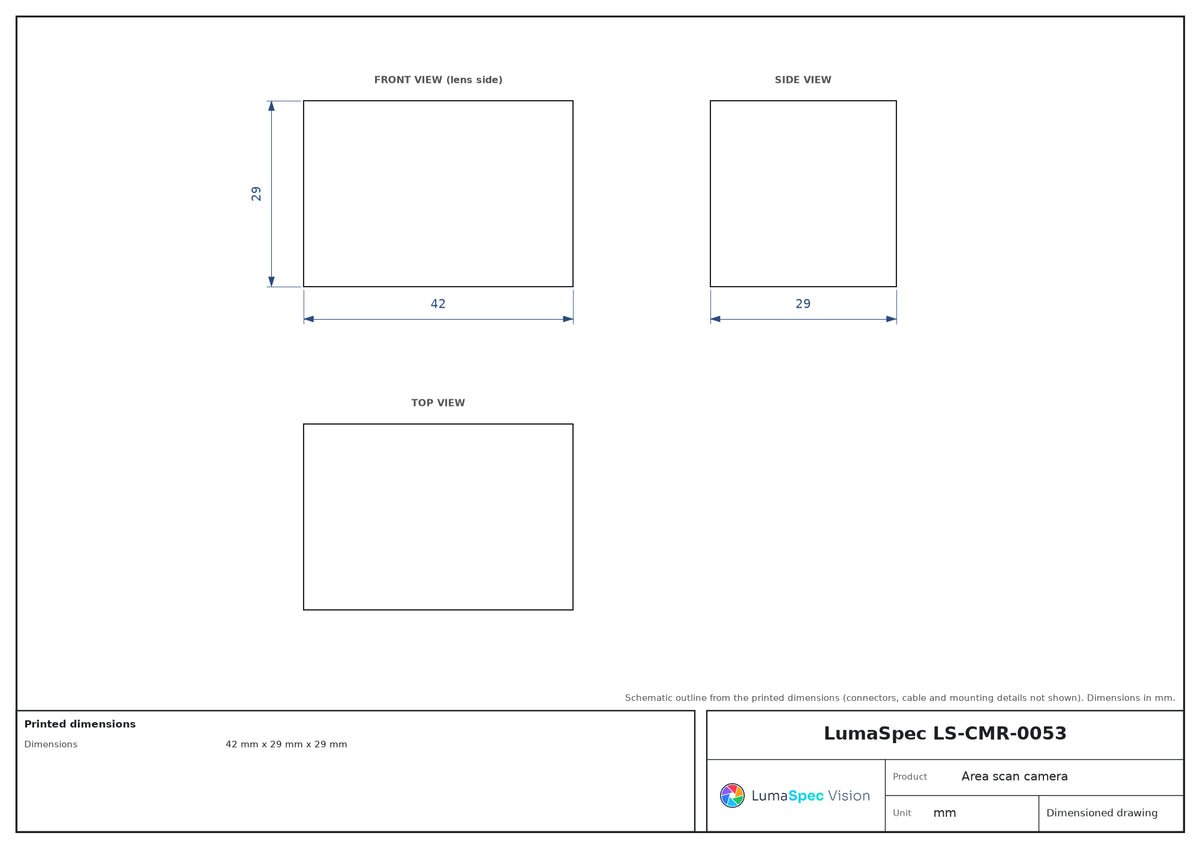

Dimensions	42 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	88g
