5 MP GigE area scan camera, AR0521, 1/2.5" rolling shutter, 23 fps

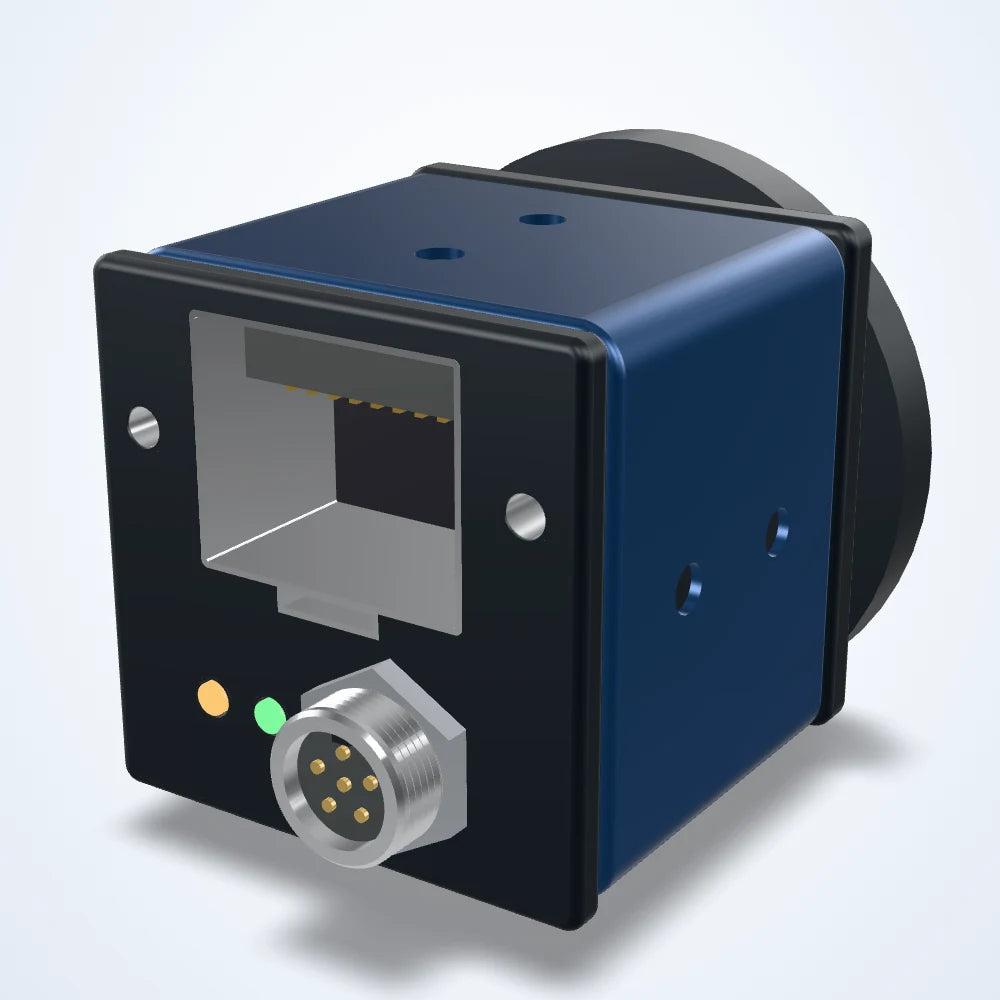

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5 MP GigE area scan camera, AR0521, 1/2.5" rolling shutter, 23 fps (LS-CMR-0036)

Model LS-CMR-0036

Resolution2592 px x 1944 px
Sensor1/2.5"
InterfaceGigE
Speed23 fps
Lens mountC-mount
Pixel size2.2 μm x 2.2 μm

$400.00

Ships in 3-4 weeks

0.23 kg shipping weight

Not available in the United States. Available for delivery to other countries.

5 MP area scan camera for inspection, measurement and guidance on the production line. AR0521 CMOS sensor (1/2.5"); 2592 x 1944 pixels of 2.2 μm; up to 23 frames per second; rolling shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0036

Sensor and imaging

Resolution	2592 px x 1944 px
Pixel size	2.2 μm x 2.2 μm
Max. frame rate	23 fps
Sensor make	On Semiconductor
Sensor model	AR0521
Shutter	Rolling Shutter
Sensor size	1/2.5"
Sensor type	CMOS
Dynamic range	60.0 dB
SNR	>38.0 dB
Pixel bit depth	8 / 10 / 12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), 1 output(opto-isolated), 1 bi-directional custom non-isolated I/O

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	6-24 VDC
Power consumption	12 V @ ≈2.8 W

Mechanical

Dimensions	29 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	60g
Mounting holes	2-M2X3; 3-M3X3.5; 4-M2X3.5
