Area scan cameras

6.3 MP GigE area scan camera, IMX178, 1/1.8" rolling shutter, 19.1 fps (LS-CMR-0046)

Model LS-CMR-0046

Resolution3072 px x 2048 px
Sensor1/1.8"
InterfaceGigE
Speed19.1 fps
Lens mountC-mount
Pixel size2.4 μm x 2.4 μm

$350.00

Ships in 3-4 weeks

0.28 kg shipping weight

Not available in the United States. Available for delivery to other countries.

6.3 MP area scan camera for inspection, measurement and guidance on the production line. IMX178 CMOS sensor (1/1.8"); 3072 x 2048 pixels of 2.4 μm; up to 19.1 frames per second; rolling shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0046

Sensor and imaging

Resolution	3072 px x 2048 px
Pixel size	2.4 μm x 2.4 μm
Max. frame rate	19.1 fps
Sensor make	Sony
Sensor model	IMX 178
Shutter	Rolling Shutter
Sensor size	1/1.8"
Sensor type	CMOS
Dynamic range	>71 dB
Pixel bit depth	8 bit / 10 bit / 12 bit

Interfaces and I/O

Data interface	GigE
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 60°C(Operating), -30 - 70°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Via hardware trigger, software trigger or free run mode
Power supply	DC 9-24 V, Supporting PoE
Power consumption	Monochrome: 12 V @2.4 W

Mechanical

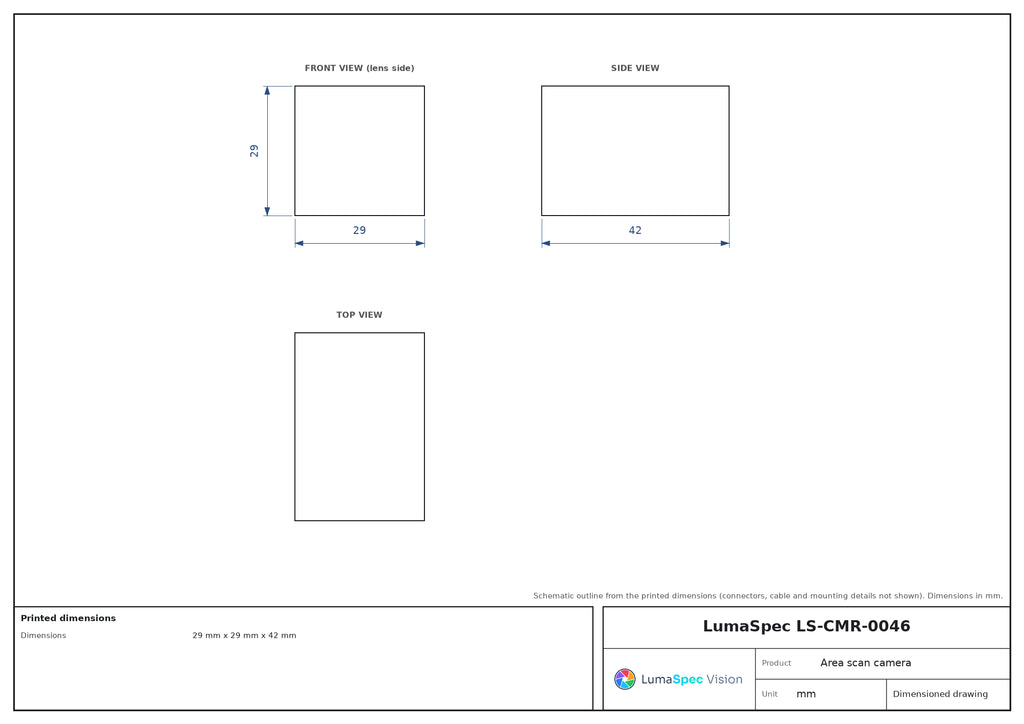

Dimensions	29 mm x 29 mm x 42 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	100g
Mounting holes	4-M2X3; 3-M3X3; 2-M2X3; 2-M3X3
