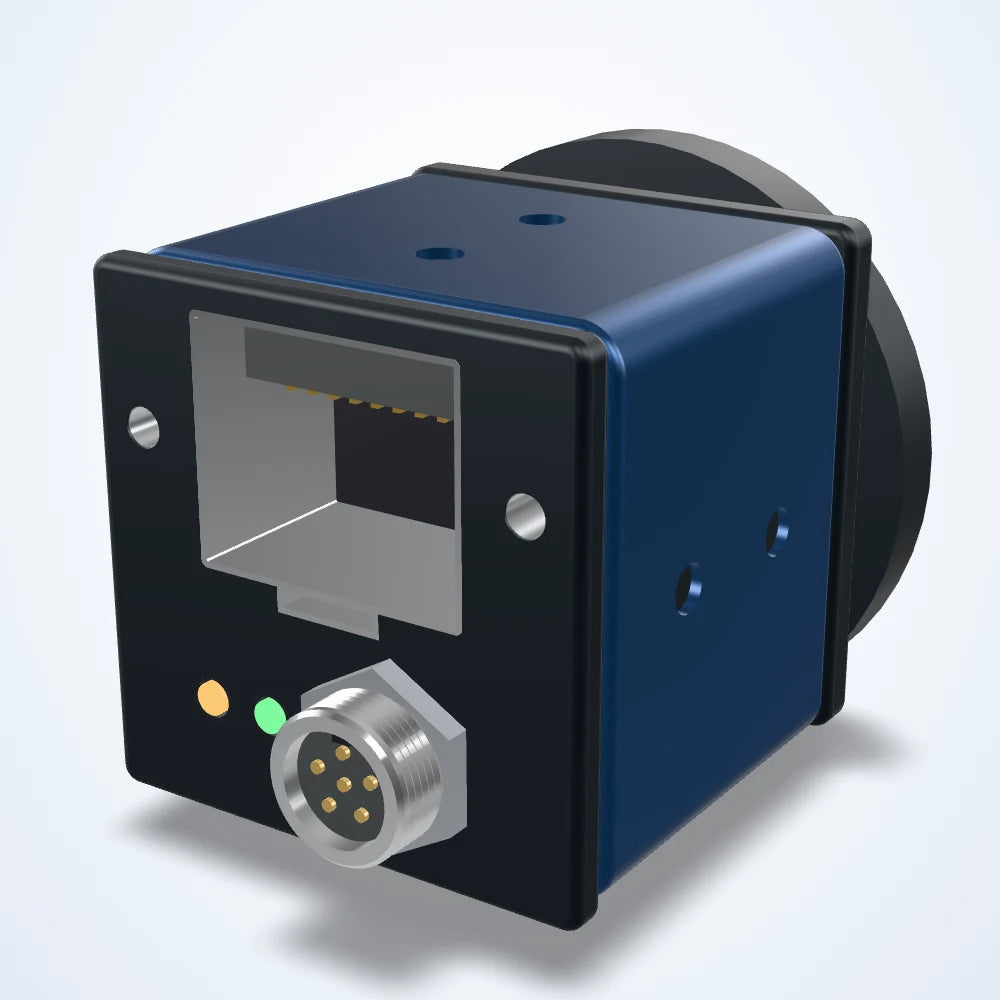

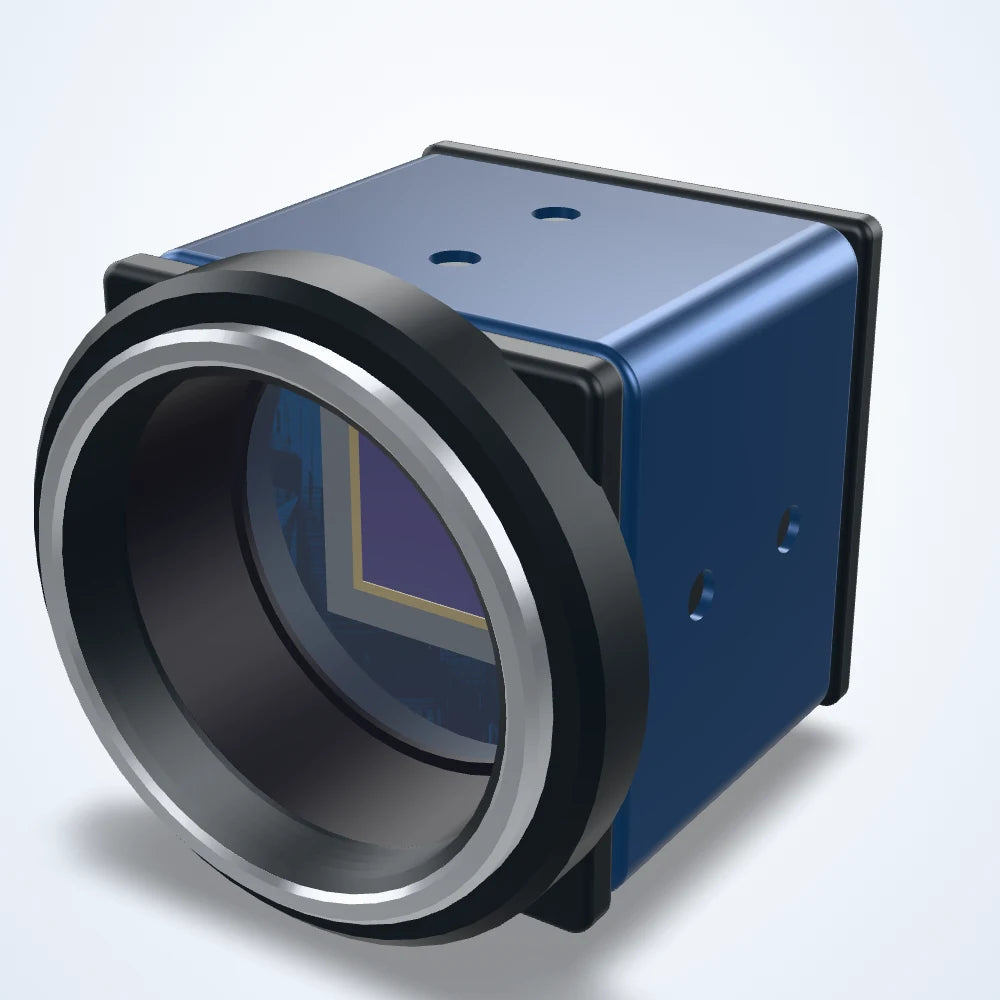

1.2 MP GigE area scan camera, AR0135, 1/3" global shutter, 54 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1.2 MP GigE area scan camera, AR0135, 1/3" global shutter, 54 fps (LS-CMR-0014)

Model LS-CMR-0014

Resolution1280 px x 960 px
Sensor1/3"
InterfaceGigE
Speed54 fps
Lens mountC-mount
Pixel size3.75 μm x 3.75 μm

$305.00

Ships in 3-4 weeks

0.23 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1.2 MP area scan camera for inspection, measurement and guidance on the production line. AR0135 CMOS sensor (1/3"); 1280 x 960 pixels of 3.75 μm; up to 54 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0014

Sensor and imaging

Resolution	1280 px x 960 px
Pixel size	3.75 μm x 3.75 μm
Max. frame rate	54 fps
Sensor make	ON Semiconductor
Sensor model	AR0135
Shutter	Global Shutter
Sensor size	1/3"
Sensor type	CMOS
Dynamic range	71.0 dB
SNR	>40.0 dB
Pixel bit depth	8 / 10 / 12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), 1 output(opto-isolated),1 configurable input and output(without opto-isolated)

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	6-24 VDC
Power consumption	12 V @ ≈2.8 W

Mechanical

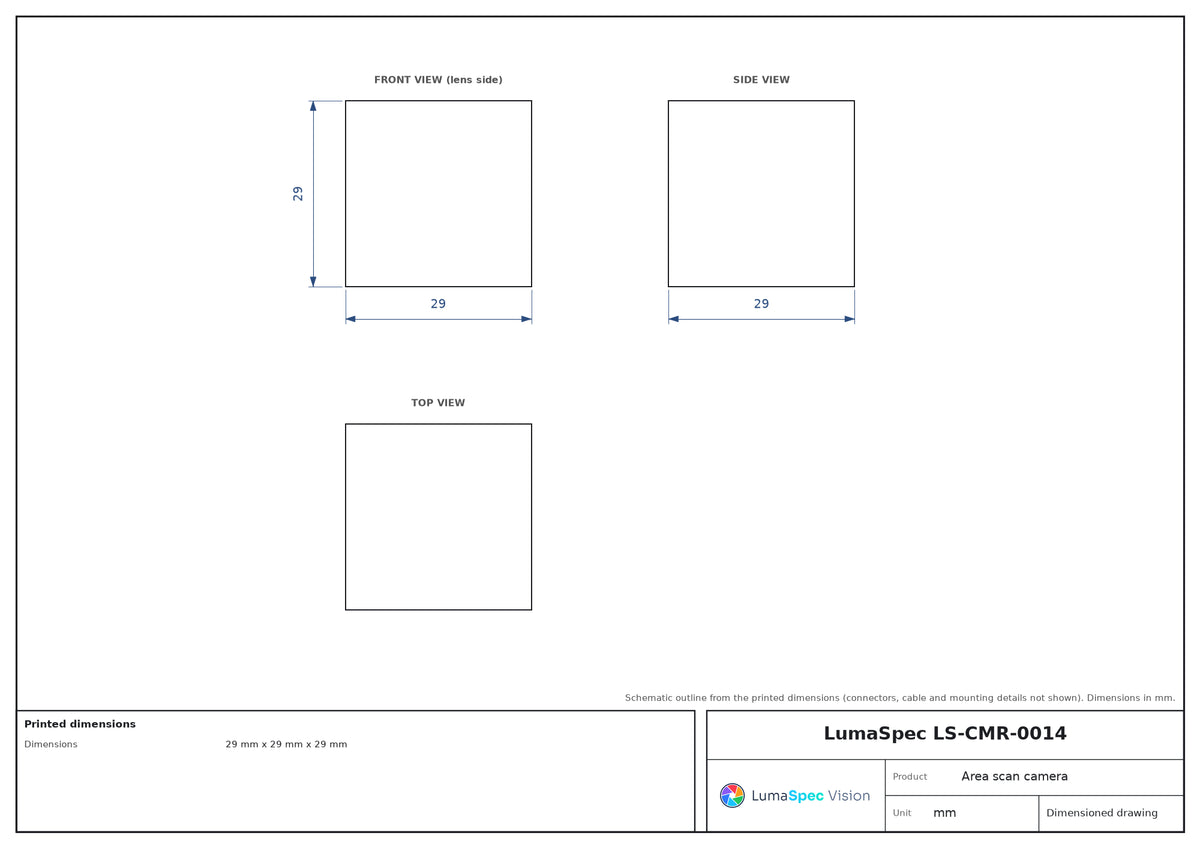

Dimensions	29 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	60g
Mounting holes	2-M2X3; 3-M3X3.5; 4-M2X3.5
