1.3 MP GigE area scan camera, 1/2.7" global shutter, 85 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1.3 MP GigE area scan camera, 1/2.7" global shutter, 85 fps (LS-CMR-0016)

Model LS-CMR-0016

Resolution1280 px x 1024 px
SensorSS
InterfaceGigE
Speed85 fps
Lens mountC-mount
Pixel size4.0 μm x 4.0 μm

$330.00

Ships in 3-4 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1.3 MP area scan camera for inspection, measurement and guidance on the production line. 1280 x 1024 pixels of 4 μm; up to 85 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0016

Sensor and imaging

Resolution	1280 px x 1024 px
Pixel size	4.0 μm x 4.0 μm
Max. frame rate	85 fps
Sensor type	SS
Shutter	Global Shutter
Sensor size	1/2.7"
Dynamic range	60.0 dB
SNR	40.0 dB
Pixel bit depth	8 / 10 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	PoE or 6-24 VDC
Power consumption	12 V@ ≈3.4 W

Mechanical

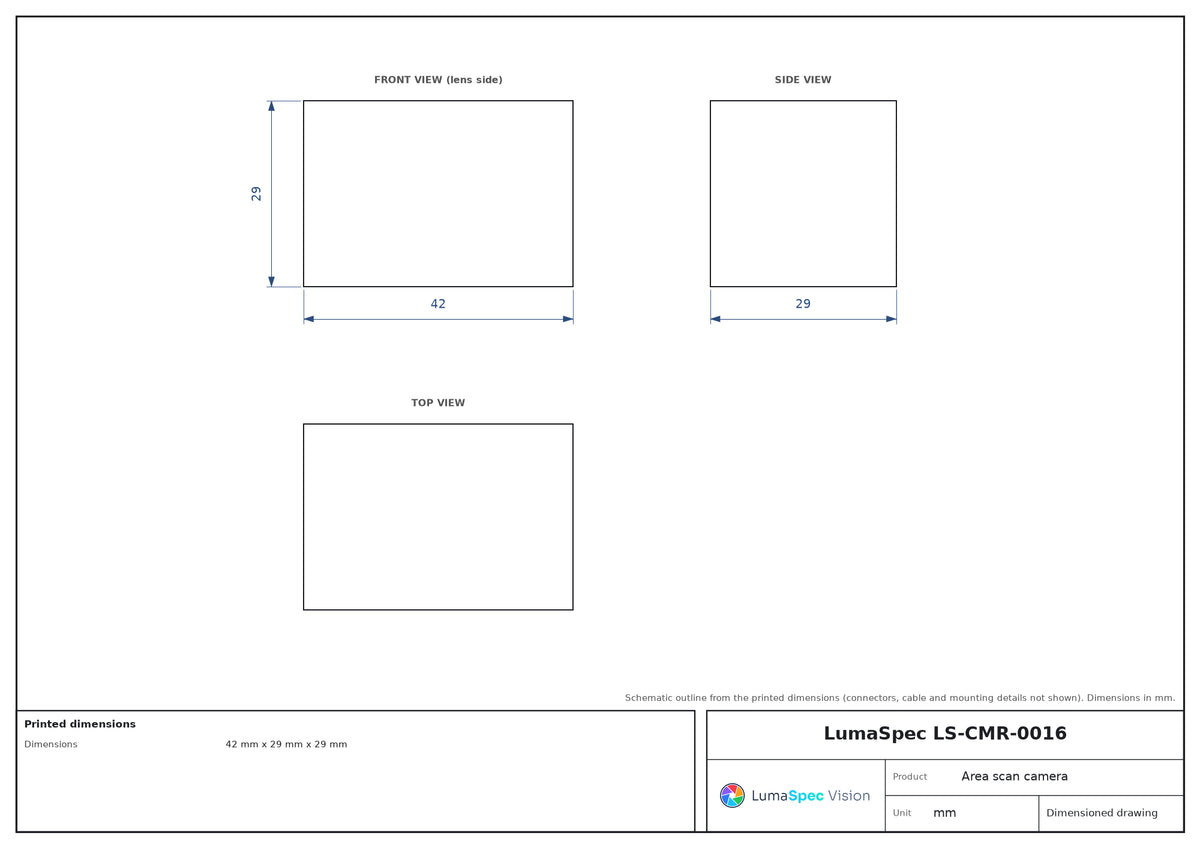

Dimensions	42 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	88g
