1.6 MP GigE area scan camera, IMX273, 1/2.9" global shutter, 77 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1.6 MP GigE area scan camera, IMX273, 1/2.9" global shutter, 77 fps (LS-CMR-0020)

Model LS-CMR-0020

Resolution1440 px x 1080 px
Sensor1/2.9"
InterfaceGigE
Speed77 fps
Lens mountC-mount
Pixel size3.45 μm x 3.45 μm

$330.00

Ships in 3-4 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1.6 MP area scan camera for inspection, measurement and guidance on the production line. IMX273 CMOS sensor (1/2.9"); 1440 x 1080 pixels of 3.45 μm; up to 77 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0020

Sensor and imaging

Resolution	1440 px x 1080 px
Pixel size	3.45 μm x 3.45 μm
Max. frame rate	77 fps
Sensor make	Sony
Sensor model	IMX 273
Shutter	Global Shutter
Sensor size	1/2.9"
Sensor type	CMOS
Dynamic range	70.0 dB
SNR	>38 dB
Pixel bit depth	8 / 10 / 12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), 1 output(opto-isolated),1 configurable input and output(without opto-isolated)

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	PoE or 6-26 VDC
Power consumption	12 V @ ≈3.6 W

Mechanical

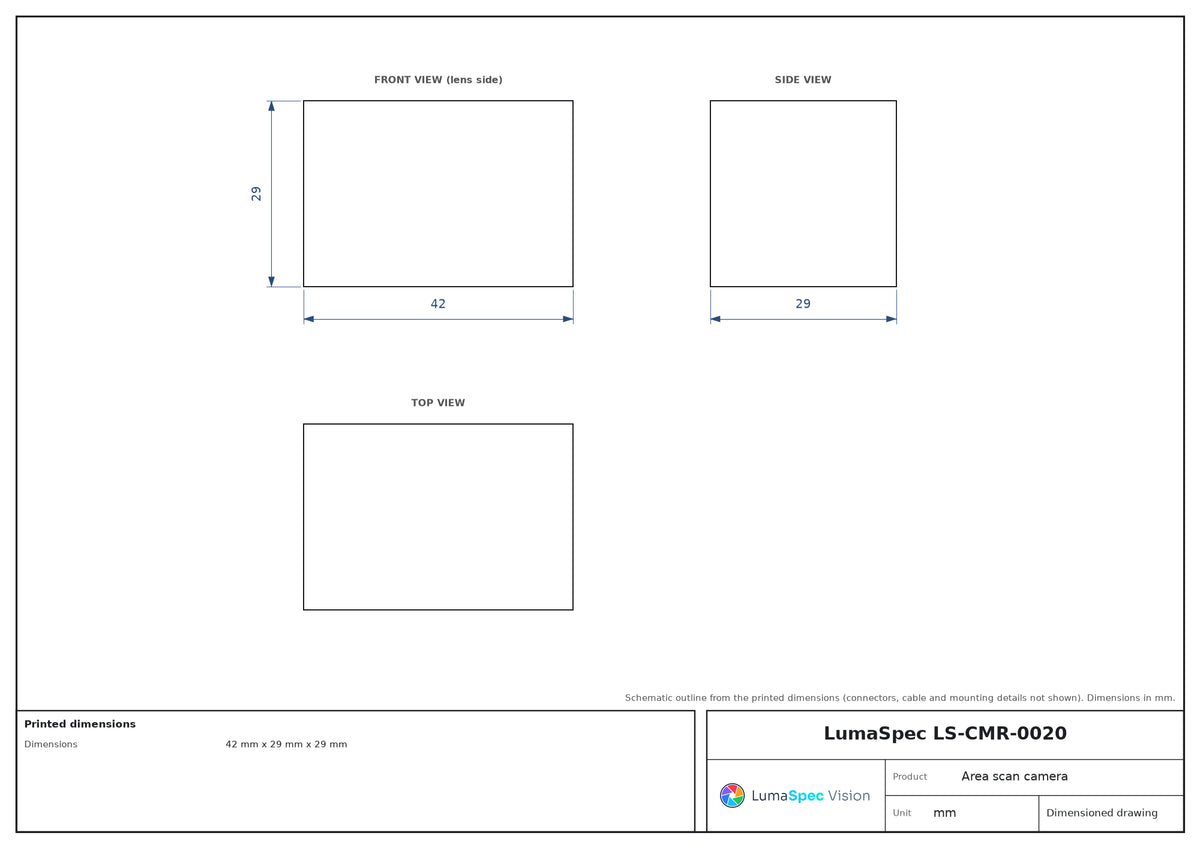

Dimensions	42 mm x 29 mm x 29 mm
Lens mount	C-mount (CS-Mount can be customized)
Weight	88g
