Area scan cameras
0.5 MP GigE area scan camera, PYTHON480, 1/3.6" global shutter, 120 fps, Without POE (LS-CMR-0010)
Model LS-CMR-0010
- Resolution800 px x 600 px
- Sensor1/3.6"
- InterfaceGigE
- Speed120 fps
- Lens mountC-mount
- Pixel size4.8 μm x 4.8 μm
$350.00
Ships in 3-4 weeks
0.26 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.5 MP area scan camera for inspection, measurement and guidance on the production line. PYTHON480 CMOS sensor (1/3.6"); 800 x 600 pixels of 4.8 μm; up to 120 frames per second; global shutter; GigE interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0010 |
|---|
Sensor and imaging
| Resolution | 800 px x 600 px |
|---|---|
| Pixel size | 4.8 μm x 4.8 μm |
| Max. frame rate | 120 fps |
| Sensor make | ON Semiconductor |
| Sensor model | PYTHON 480 |
| Shutter | Global Shutter |
| Sensor size | 1/3.6" |
| Sensor type | CMOS |
| Dynamic range | 60.0 dB |
| SNR | >38.0 dB |
| Pixel bit depth | 8 / 10 bits |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | GigE Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run |
|---|---|
| Power supply | PoE or 6-24 VDC |
Mechanical

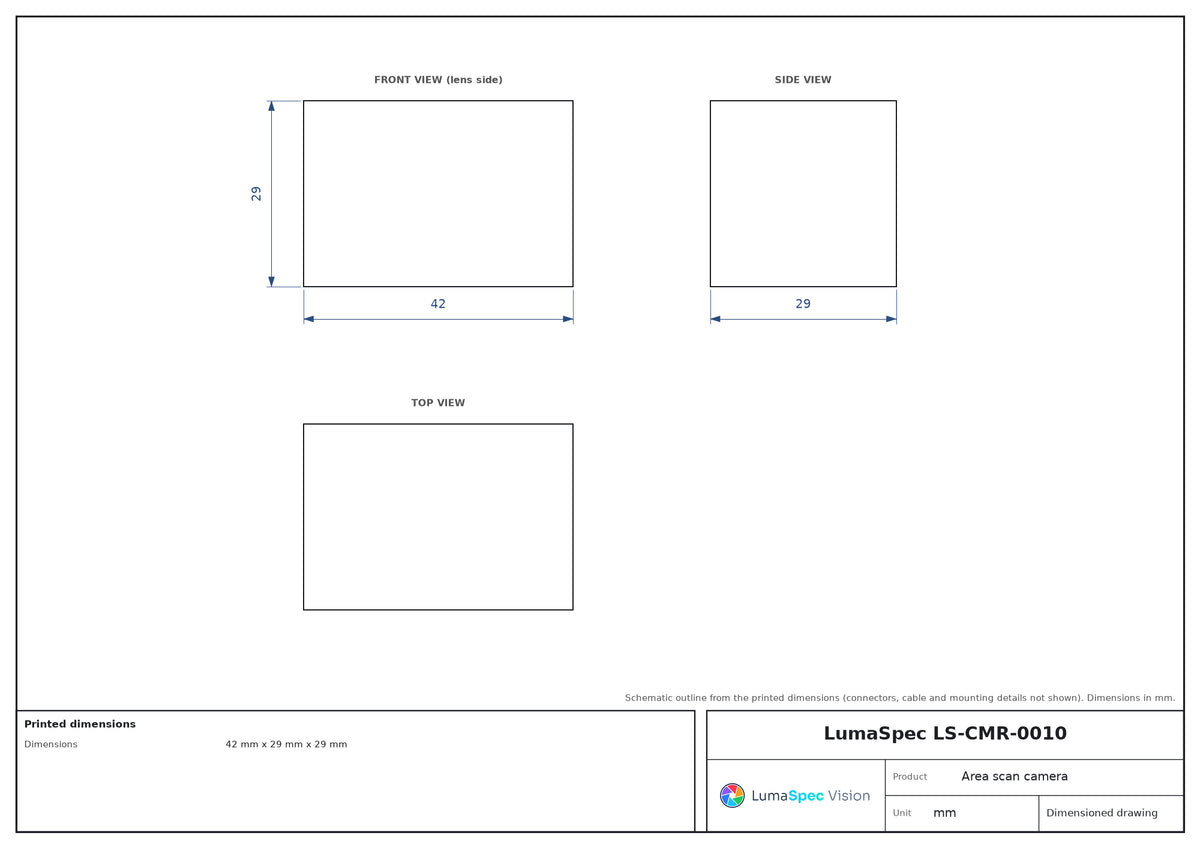

| Dimensions | 42 mm x 29 mm x 29 mm |
|---|---|
| Lens mount | C-mount (CS-Mount can be customized) |
| Weight | 88g |
