Rendered illustration: the actual product may differ in appearance.
Area scan cameras
26.2 MP GigE area scan camera, GMAX0505, global shutter, 4.5 fps (LS-CMR-0065)
Model LS-CMR-0065-M
- Resolution5120 x 5120
- Sensor1.1”
- InterfaceGigE
- Speed4.5 fps (7 fps Lossless Compression)
- Lens mountC-mount
- Pixel size2.5 μm x 2.5 μm
$1,790.00
Ships in 3-4 weeks
3.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 sensor; 5120 x 5120 pixels of 2.5 μm; up to 4.5 frames per second; global shutter; GigE interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0065 |
|---|---|
| ROI | Supported |
| Gamma / LUT | LUT Range: 0 to 3.99998 |
| Image Acquisition Mode | Software Trigger / Hardware Trigger / Free Run |
| SPC | Supported |
Sensor and imaging
| Resolution | 5120 x 5120 |
|---|---|
| Max. frame rate | 4.5 fps (7 fps Lossless Compression) |
| Sensor model | GMAX0505 (1.1" CMOS) |
| Pixel size | 2.5 μm x 2.5 μm |
| Pixel bit depth | 12-bit |
| Shutter | Rolling / Global Reset Release |
| SNR | 36 dB |
| Dynamic range | 63 dB |
| Gain | 1 ~ 32X |
| Exposure time | Standard: 5 μs ~ 10 sec |
| Sensor make | Gpixel |
| Sensor size | 1.1” |
| Sensor type | CMOS |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 1× Opto-Isolated Input, 1× Opto-Isolated Output, 1× Configurable I/O (No Opto-Isolation) |
Light
| Color Type | Mono |
|---|
Environment and compliance
| Operating temperature | 0 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | GigE Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | PoE, DC9V~24 V |
Mechanical

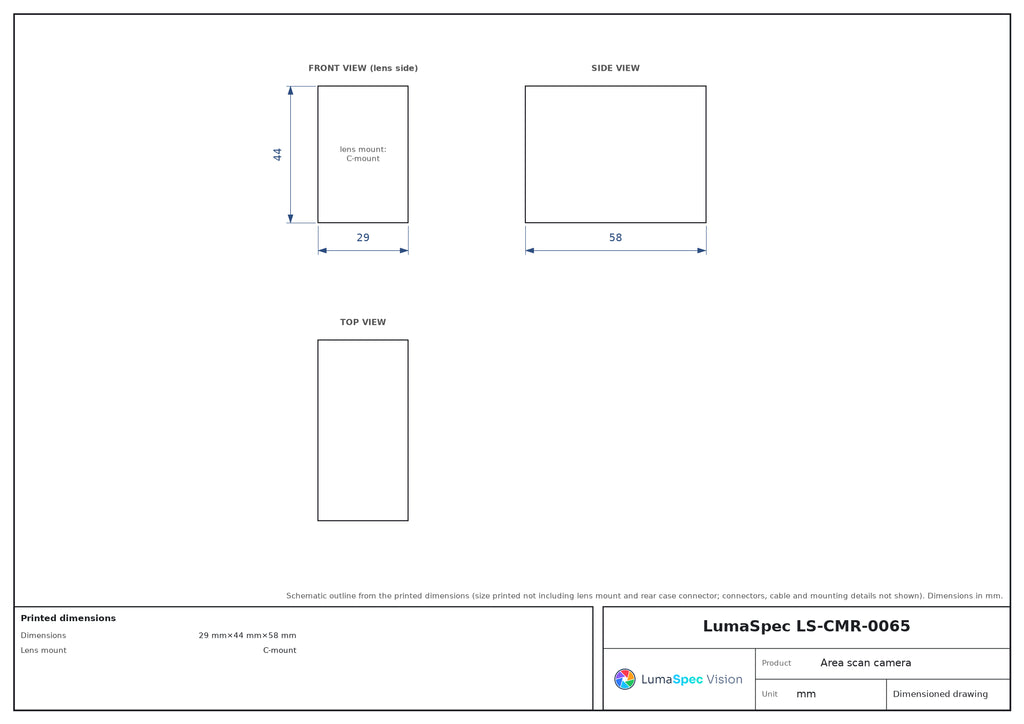

| Dimensions | 29 mm×44 mm×58 mm(not including lens mount and rear case connector) |
|---|---|
| Lens mount | C-mount |
| Weight | 140g |
