5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps
  • 5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps
  • 5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps
  • 5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps

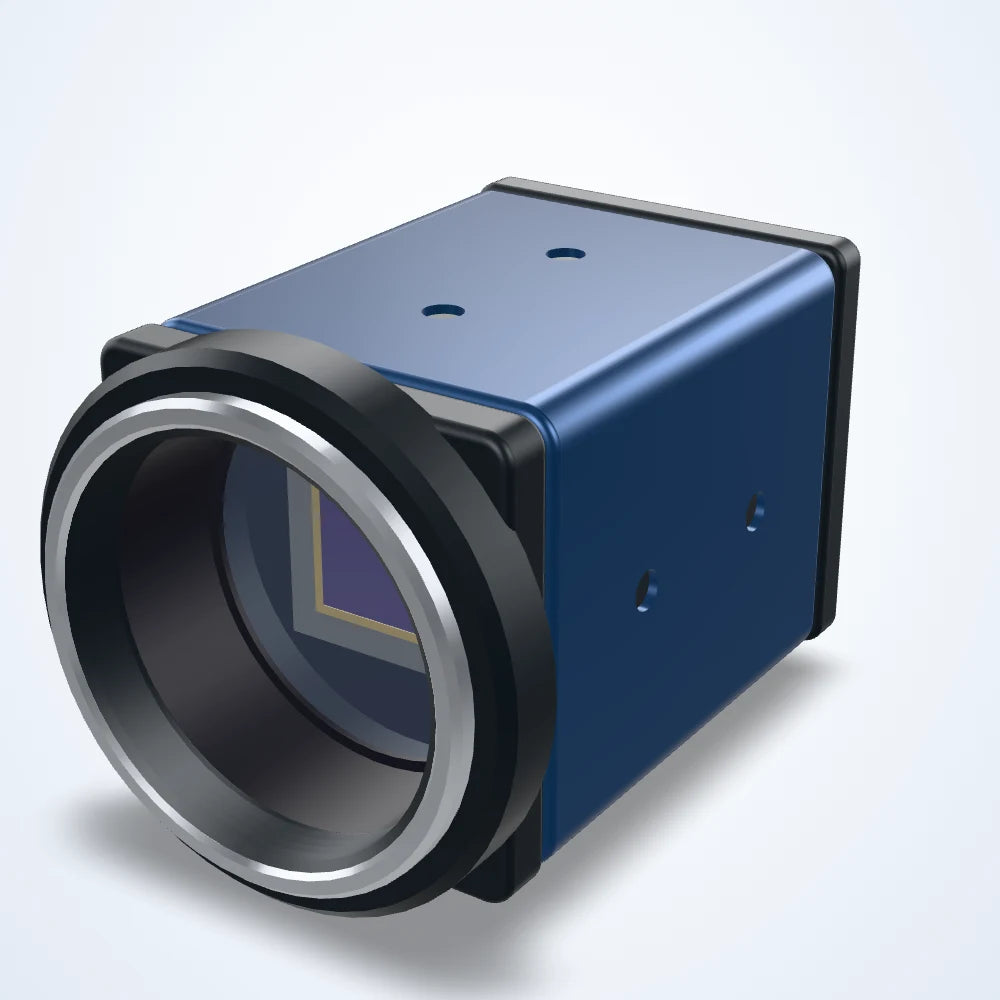

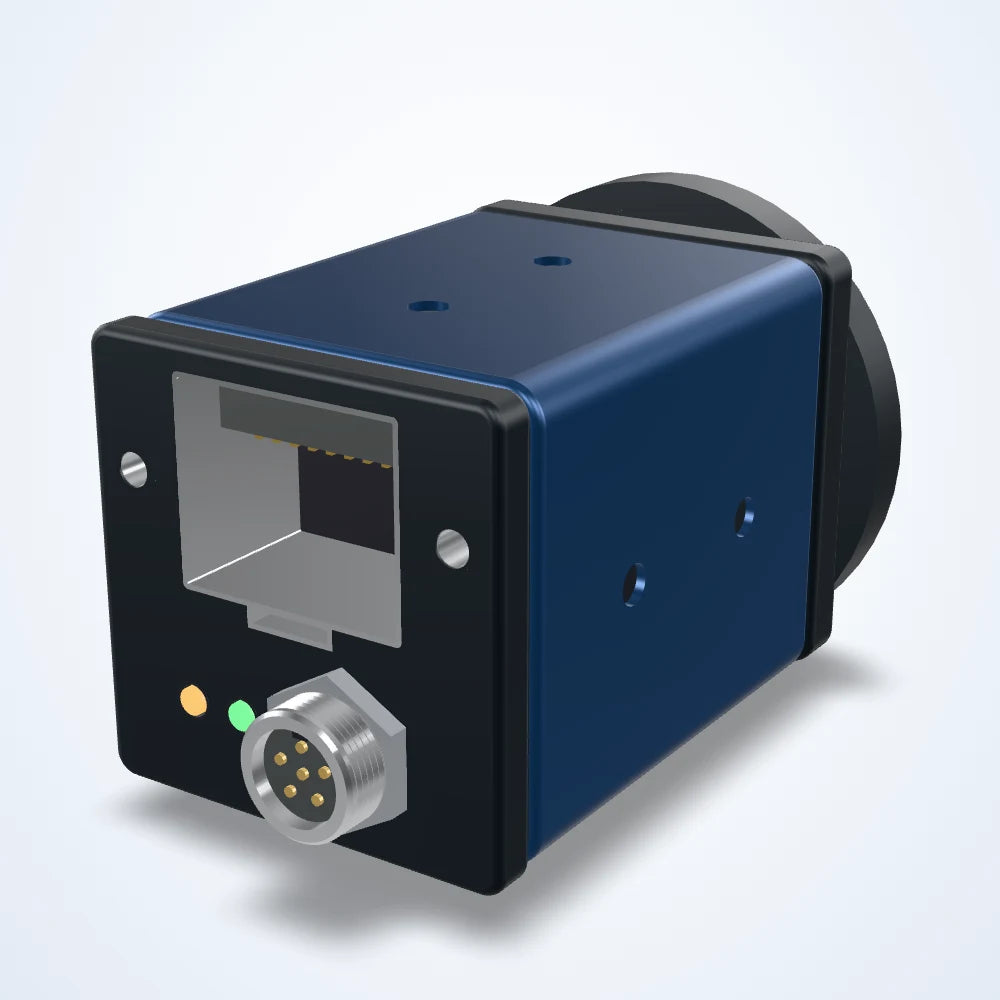

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps (LS-CMR-0038)

Model LS-CMR-0038

  • Resolution2448 px x 2048 px
  • Sensor2/3"
  • InterfaceGigE
  • Speed24 fps
  • Lens mountC-mount
  • Pixel size3.45 μm x 3.45 μm
$4,290.00

Ships in 3-4 weeks

0.26 kg shipping weight

MountColor

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps (LS-CMR-0038)LS-CMR-0038

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5 MP area scan camera for inspection, measurement and guidance on the production line. IMX250MZR CMOS sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 24 frames per second; global shutter; GigE interface; C-mount lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0038

Sensor and imaging

Resolution2448 px x 2048 px
Pixel size3.45 μm x 3.45 μm
Max. frame rate24 fps
Sensor makeSony
Sensor modelIMX250MZR
ShutterGlobal Shutter
Sensor size2/3"
Sensor typeCMOS
Pixel bit depth12 bit

Interfaces and I/O

Data interfaceGigE

Environment and compliance

Operating temperature-30~80 °C (Storage), -30~50°C (Working)
CertificationGigE Vision and GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Via hardware trigger ● software trigger or free run mode
Power supplyDC 6-24 V, Supporting PoE

Mechanical

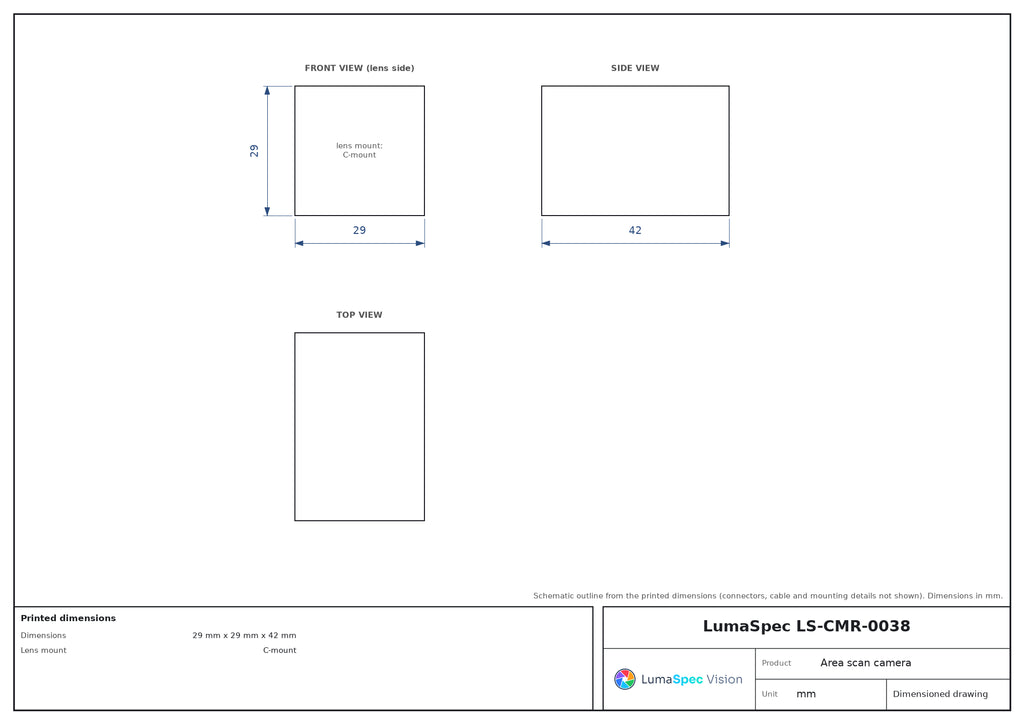

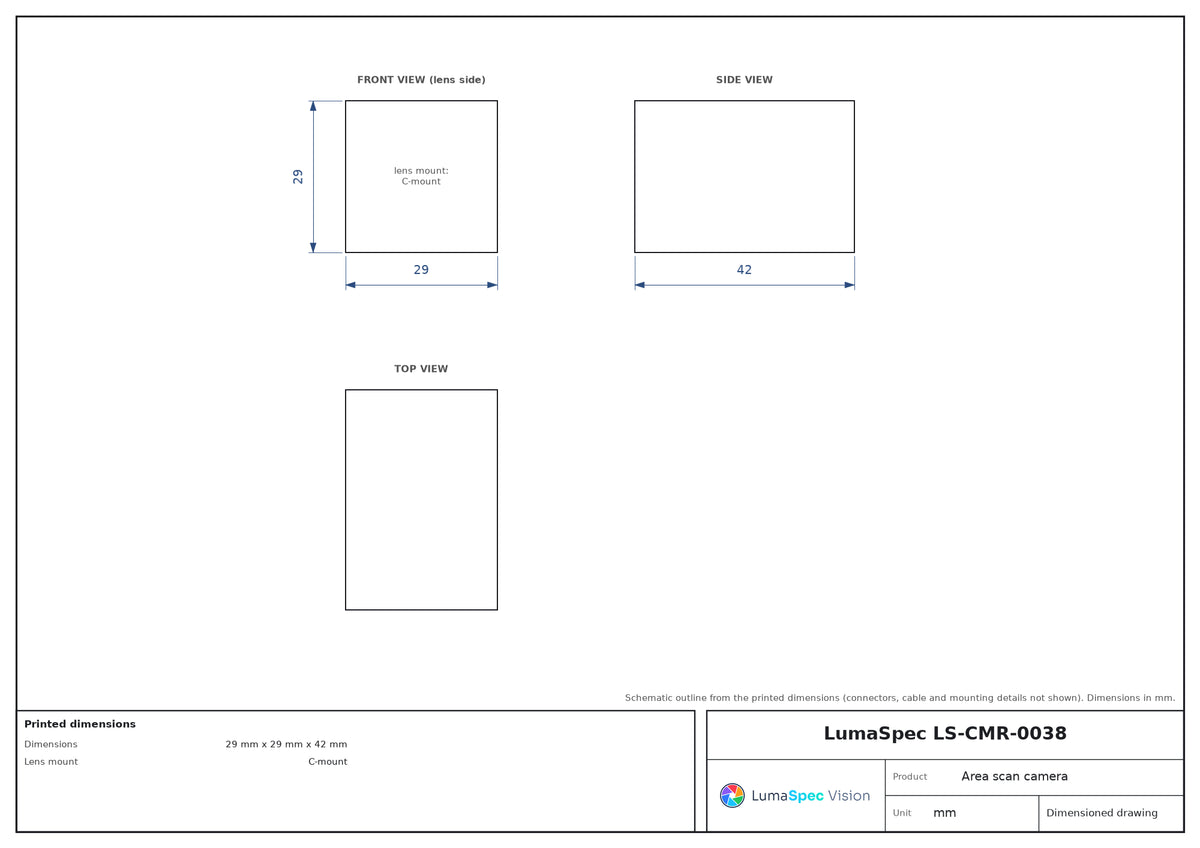

Dimensions29 mm x 29 mm x 42 mm (88g)
Lens mountC-mount
Shipping weight0.26 kg
