5 MP GigE area scan camera, IMX264, 2/3" global shutter, 74 fps (LS-CMR-0044)

Model LS-CMR-0044

  • Resolution2448 px x 2048 px
  • Sensor2/3"
  • InterfaceGigE
  • Speed24.2 fps
  • Lens mountC-mount
  • Pixel size3.45 μm x 3.45 μm
$4,250.00

Ships in 3-4 weeks

0.28 kg shipping weight

MountColor

Not available in the United States. Available for delivery to other countries.

5 MP area scan camera for inspection, measurement and guidance on the production line. IMX264 CMOS sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 74 frames per second; global shutter; GigE interface; C-mount lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0044

Sensor and imaging

Resolution2448 px x 2048 px
Pixel size3.45 μm x 3.45 μm
Max. frame rate24.2 fps
Sensor makeSony
Sensor modelIMX 264
ShutterGlobal Shutter
Sensor size2/3"
Sensor typeCMOS
Dynamic range72.0 dB
Pixel bit depth8 / 10 / 12 bits
SNR40.0 dB

Interfaces and I/O

Data interfaceGigE
Digital I/OOpto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature-30 - 60°C(Operating), -30 - 70°C(Storage)
CertificationGigE Vision and GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger; ● Hardware Trigger; ● Free Run Mode
Power supplyDC 9-24 V, Supporting PoE

Mechanical

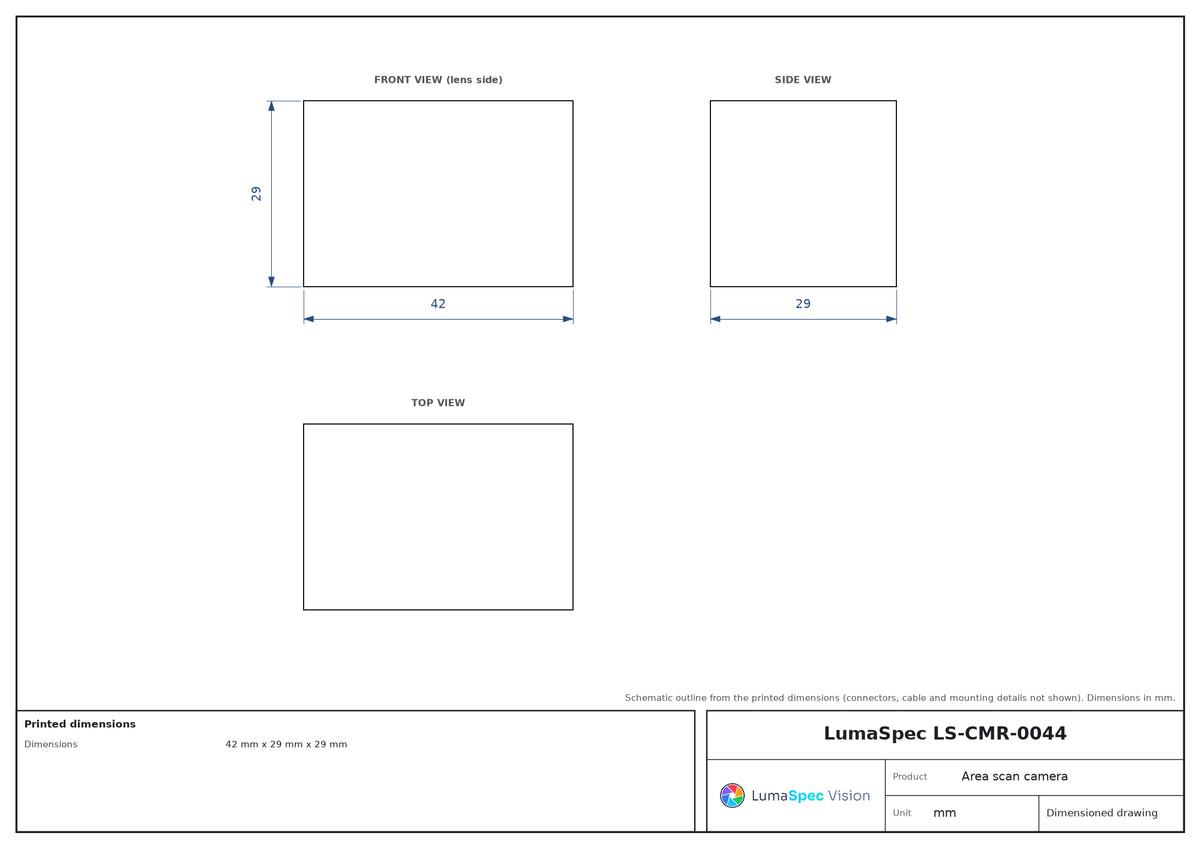

Dimensions42 mm x 29 mm x 29 mm
Lens mountC-mount (CS-Mount can be customized)
Weight100g
