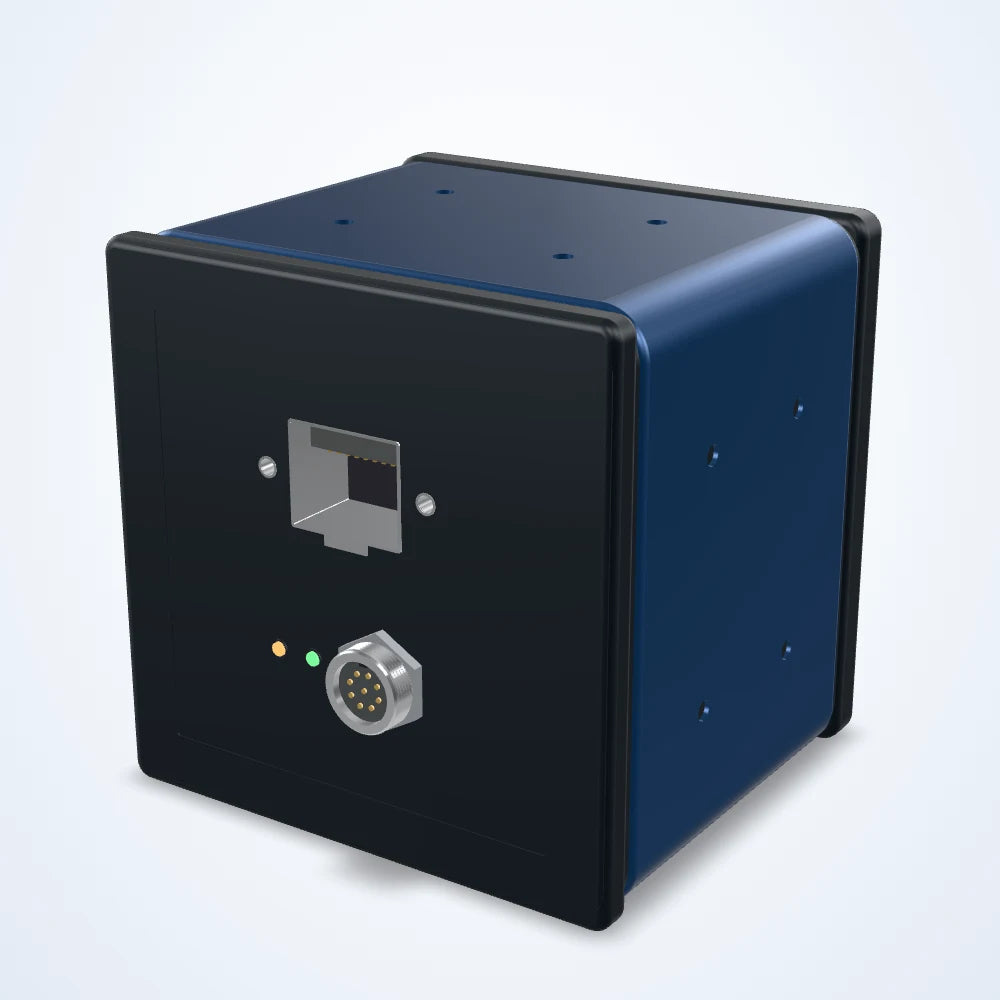

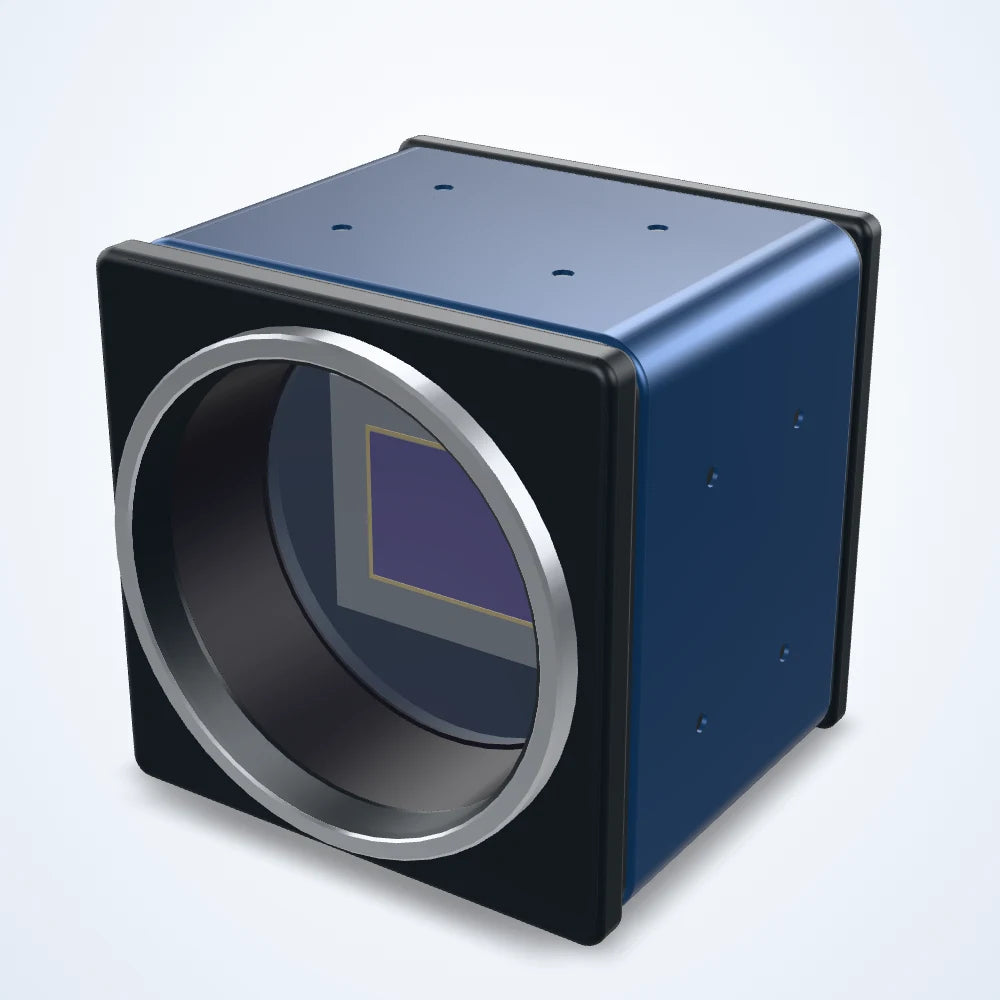

65.4 MP GigE area scan camera, GMAX3265, global shutter, 2 fps, M58

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

65.4 MP GigE area scan camera, GMAX3265, global shutter, 2 fps, M58 (LS-CMR-0069)

Model LS-CMR-0069

Resolution9344 x 7000 (65MP)
Sensor29.9 x 22.4 mm
InterfaceGigE
Speed1.7 fps
Lens mountM58
Pixel size3.2 μm

$4,970.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

65.4 MP area scan camera for inspection, measurement and guidance on the production line. GMAX3265 sensor; 9344 x 7000 pixels of 3.2 μm; up to 2 frames per second; global shutter; GigE interface; M58 lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0069

Sensor and imaging

Resolution	9344 x 7000 (65MP)
Max. frame rate	1.7 fps
Sensor model	Gpixel GMAX3265
Sensor size	29.9 x 22.4 mm
Pixel size	3.2 μm
Shutter	Global
Pixel bit depth	12-bit
Sensor make	Gpixel
Sensor type	CMOS
Dynamic range	66.0 dB
SNR	40.0 dB

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), 1 output(opto-isolated),1 RS232

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger ● Hardware Trigger ● Free Run
Power supply	PoE or 12-24 VDC
Power consumption	24 V@8.5 W

Mechanical

Lens mount	M58
Dimensions	72 mm x 72 mm x 92.13 mm
Mounting holes	4-M4
Shipping weight	2.00 kg
