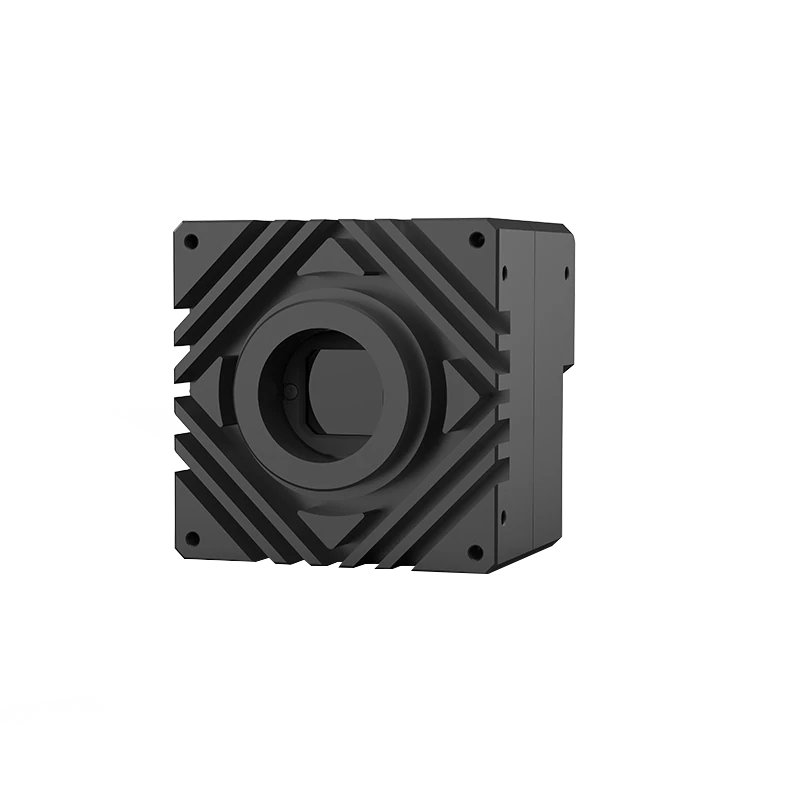

10 GigE area scan camera (LS-CMR-S19)

Area scan cameras

10 GigE area scan camera (LS-CMR-S19)

  • 18 models
  • from $2,699.00
  • Series LS-CMR-S19

The 10 GigE area scan camera (LS-CMR-S19) is a range of 18 area scan cameras from LumaSpec Vision, from $2,699.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 18 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.5 MP, 10GigE, Color/Mono, 1.8 MP, 10GigE, Color/Mono, 2.8 MP, 10GigE, Color/Mono, 4.2 MP, 10GigE, Color/Mono, 5.0 MP, 10GigE, Color/Mono, 5.6 MP, 10GigE, Color/Mono, 9.1 MP, 10GigE, Color/Mono, 13 MP, 10GigE, Color/Mono, 17 MP, 10GigE, Color/Mono, 18 MP, 10GigE, Color/Mono, 26 MP, 10GigE, Color, 26 MP, 10GigE, Color/Mono, 31 MP, 10GigE, Color/Mono, 46 MP, 10GigE, Color/Mono, 65 MP, 10GigE, Color/Mono, 104 MP, 10GigE, Color/Mono
Interface
10GigE
Resolution
Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP +
Shutter
Global, Rolling
Lens mount
M58, C-mount
Sensor format
1/2", 1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large
Colour
Color

Features

  • Reserved fan interface to control camera temperature
  • 0.5MP to 100MP pixels with a maximum frame rate of 1594FPS
  • Standard 10 Gigabit network interface; stable communication over Cat6 (super six) network cable
  • Cost greatly reduced compared with CameraLink interface plus capture card
  • Transmission distance up to 100 meters, backward compatible with Gigabit Ethernet
  • Effective bandwidth 1200MByte, 10 times Gigabit network, greatly reducing image transmission time and delay
  • Supports GigE Vision and GenICam, same SDK as the Gigabit network camera, shortening development cycle
  • Using standard 10 Gigabit network interface design.

Typical uses

  • PCB
  • Screen detection
  • Lithium battery
  • Railway

All 18 models in the 10 GigE area scan camera (LS-CMR-S19)

Link
LS-CMR-03080.5 MP, 10GigE, Color/Mono816× [email protected]1594.751/1.7"$2,699.00View
LS-CMR-03091.8 MP, 10GigE, Color/Mono1600×1100@650FPS6501.1"$2,699.00View
LS-CMR-03102.8 MP, 10GigE, Color/Mono1936×1464@408FPS4082/3"$2,699.00View
LS-CMR-03114.2 MP, 10GigE, Color/Mono2048×2048@172FPS1721"$2,699.00View
LS-CMR-03125.6 MP, 10GigE, Color/Mono2592×2160@120FPS1201/2"$2,699.00View
LS-CMR-03135.0 MP, 10GigE, Color/Mono2448x2048@164FPS1642/3"$2,699.00View
LS-CMR-03149.1 MP, 10GigE, Color/Mono4208×2160@120FPS1202/3"$2,949.00View
LS-CMR-031513 MP, 10GigE, Color/Mono4096×3072@90FPS901"$3,829.00View
LS-CMR-031717 MP, 10GigE, Color/Mono4096x4096@45.25FPS45.254/3"$3,829.00View
LS-CMR-031613 MP, 10GigE, Color/Mono4096x3072@100FPS1001.1"$3,829.00View
LS-CMR-031818 MP, 10GigE, Color/Mono4512×4096@63FPS631"$5,339.00View
LS-CMR-031926 MP, 10GigE, Color/Mono5120×5120@42FPS421.1"$5,519.00View
LS-CMR-032126 MP, 10GigE, Color6240×4168@45FPS451.8"$5,519.00View
LS-CMR-032026 MP, 10GigE, Color/Mono5120x5120@42FPS421.3"$5,519.00View
LS-CMR-032346 MP, 10GigE, Color/Mono8240X5628@24FPS241.4"$7,269.00View
LS-CMR-032231 MP, 10GigE, Color/Mono6480×4860@35FPS3527.9mm (APS-C)$7,559.00View
LS-CMR-032465 MP, 10GigE, Color/Mono9344×7000@15.5FPS15.529.9×22.4mm$8,849.00View
LS-CMR-0325104 MP, 10GigE, Color/Mono11276x9200@11.6FPS11.636.1×29.4mm$10,959.00quoteView
