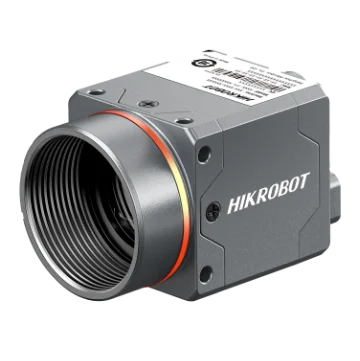

CT Series USB3.0 Area Scan Cameras

Area scan cameras

CT Series USB3.0 Area Scan Cameras

  • 68 models
  • from $479.00
  • Series HIK-CT-USB

The CT Series USB3.0 Area Scan Cameras is a range of 68 area scan cameras from Hikrobot, from $479.00. It comes in 32 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 68 models Series datasheet (PDF)

The series at a glance

Sizes / versions
1.6 MP, 1/2.9", USB3, Color, 1.6 MP, 1/2.9", USB3, Mono, 1.6 MP, USB3, Color, 1.6 MP, USB3, Mono, 2 MP, 1/2.53", USB3, Color, 2 MP, 1/2.53", USB3, Mono, 2 MP, USB3, Color, 2 MP, USB3, Mono, 3.1 MP, 1/1.8", USB3, Color, 3.1 MP, 1/1.8", USB3, Mono, 3.1 MP, USB3, Color, 3.1 MP, USB3, Mono, 5 MP, 2/3", USB3, Color, 5 MP, 2/3", USB3, Mono, 5 MP, USB3, Color, 5 MP, USB3, Mono and 16 more
Interface
USB3
Resolution
Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
Shutter
Global, Rolling
Colour
Color, Mono
Lens mount
C-mount
Sensor format
1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2"

Features

  • The devices with PRO version and MAX version support waterproof connector.
  • The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
  • The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology.
  • The device with MAX version integrates lens and light source, enabling lens focusing and light source control.
  • Adopts Type-C interface and supports higher transmission bandwidth.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
  • PRO and MAX versions feature fully waterproof connectors
  • PRO and MAX versions feature precise temperature control for fast thermal equilibrium

All 68 models in the CT Series USB3.0 Area Scan Cameras

Link
MV-CT0MU0016/G/NN/NN1.6 MP, 1/2.9", USB3, Mono1440 × 1080249 fps @ 1440 × 1080 Mono 8Type-C interface$479.00View
MV-CT0CU0016/G/NN/NN1.6 MP, 1/2.9", USB3, Color1440 × 1080249 fps @ 1440 × 1080 Bayer GB 8Type-C interface$479.00View
MV-CT016G-249UC01-BASE1.6 MP, USB3, Color1440 × 1080249 fps @1440 × 1080 Bayer GB 8Type-C port$479.00View
MV-CT016G-249UM01-BASE1.6 MP, USB3, Mono1440 × 1080249 fps @1440 × 1080 Mono 8Type-C port$479.00View
MV-CT0MU0020/G/NN/NN2 MP, 1/2.53", USB3, Mono1624 × 1240180.1 fps @ 1624 × 1240 Mono 8Type-C interface$549.00View
MV-CT0CU0020/G/NN/NN2 MP, 1/2.53", USB3, Color1624 × 1240180.1 fps @ 1624 × 1240 Bayer GB 8Type-C interface$549.00View
MV-CT020G-180UC01-BASE2 MP, USB3, Color1624 × 1240180.1 fps @1624 × 1240 Bayer GB 8Type-C port$549.00View
MV-CT020G-180UM01-BASE2 MP, USB3, Mono1624 × 1240180.1 fps @1624 × 1240 Mono 8Type-C port$549.00View
MV-CT0MU0032/G/NN/NN3.1 MP, 1/1.8", USB3, Mono2048 × 1536104.8 fps @ 2048 × 1536 Mono 8Type-C interface$689.00View
MV-CT0CU0032/G/NN/NN3.1 MP, 1/1.8", USB3, Color2048 × 1536104.8 fps @ 2048 × 1536 Bayer GR 8Type-C interface$689.00View
MV-CT1MU0032/G/NN/NN3.1 MP, 1/1.8", USB3, Mono2048 × 1536104.8 fps @ 2048 × 1536 Mono 8Type-C interface$689.00View
MV-CT1CU0032/G/NN/NN3.1 MP, 1/1.8", USB3, Color2048 × 1536104.8 fps @ 2048 × 1536 Bayer GR 8Type-C interface$689.00View
MV-CT2MU0032/G/NN/NN3.1 MP, 1/1.8", USB3, Mono2048 × 1536104.8 fps @ 2048 × 1536 Mono 8Type-C interface$689.00View
MV-CT2CU0032/G/NN/NN3.1 MP, 1/1.8", USB3, Color2048 × 1536104.8 fps @ 2048 × 1536 Bayer GR 8Type-C interface$689.00View
MV-CT032G-104UM01-BASE3.1 MP, USB3, Mono2048 × 1536104.8 fps @2048 × 1536 Mono 8Type-C port$689.00View
MV-CT032G-104UC01-BASE3.1 MP, USB3, Color2048 × 1536104.8 fps @2048 × 1536 Bayer GR 8Type-C port$689.00View
MV-CT032G-104UC01-PRO3.1 MP, USB3, Color2048 × 1536104.8 fps @2048 × 1536 Bayer GR 8Type-C port$689.00View
MV-CT032G-104UM01-PRO3.1 MP, USB3, Mono2048 × 1536104.8 fps @2048 × 1536 Mono 8Type-C port$689.00View
MV-CT032G-104UC01-MAX3.1 MP, USB3, Color2048 × 1536104.8 fps @2048 × 1536 Bayer GR 8Type-C port$689.00View
MV-CT032G-104UM01-MAX3.1 MP, USB3, Mono2048 × 1536104.8 fps @2048 × 1536 Mono 8Type-C port$689.00View
MV-CT0MU0050/G/NN/NN5 MP, 2/3", USB3, Mono2448 × 204880 fps @ 2448 × 2048 Mono 8Type-C interface$859.00View
MV-CT0CU0050/G/NN/NN5 MP, 2/3", USB3, Color2448 × 204880 fps @ 2448 × 2048 Bayer GR 8Type-C interface$859.00View
MV-CT1CU0050/G/NN/NN5 MP, 2/3", USB3, Color2448 × 204880 fps @ 2448 × 2048 Bayer GR 8Type-C interface$859.00View
MV-CT1MU0050/G/NN/NN5 MP, 2/3", USB3, Mono2448 × 204880 fps @ 2448 × 2048 Mono 8Type-C interface$859.00View
MV-CT2MU0050/G/NN/NN5 MP, 2/3", USB3, Mono2448 × 204880 fps @ 2448 × 2048 Mono 8Type-C interface$859.00View
MV-CT2CU0050/G/NN/NN5 MP, 2/3", USB3, Color2448 × 204880 fps @ 2448 × 2048 Bayer GR 8Type-C interface$859.00View
MV-CT2MU0050/G/16LC/WN5 MP, 2/3", USB3, Mono2448 × 204880 fps @ 2448 × 2048 Mono 8Type-C interface$859.00View
MV-CT2CU0050/G/16LC/WN5 MP, 2/3", USB3, Color2448 × 204880 fps @ 2448 × 2048 Bayer GR 8Type-C interface$859.00View
MV-CT050G-79UM01-BASE5 MP, USB3, Mono2448 × 204880 fps @2448 × 2048 Mono 8Type-C port$859.00View
MV-CT050G-79UC01-BASE5 MP, USB3, Color2448 × 204880 fps @2448 × 2048 Bayer GR 8Type-C port$859.00View
MV-CT050G-79UC01-PRO5 MP, USB3, Color2448 × 204880 fps @2448 × 2048 Bayer GR 8Type-C port$859.00View
MV-CT050G-79UM01-PRO5 MP, USB3, Mono2448 × 204880 fps @2448 × 2048 Mono 8Type-C port$859.00View
MV-CT050G-79UC01-MAX5 MP, USB3, Color2448 × 204880 fps @2448 × 2048 Bayer GR 8Type-C port$859.00View
MV-CT050G-79UM01-MAX5 MP, USB3, Mono2448 × 204880 fps @2448 × 2048 Mono 8Type-C port$859.00View
MV-CT0MU0060/R/NN/NN6.3 MP, 1/1.8", USB3, Mono3072 × 204860.9 fps @ 3072 × 2048 Mono 8Type-C interface$969.00View
MV-CT0CU0060/R/NN/NN6.3 MP, 1/1.8", USB3, Color3072 × 204860.9 fps @ 3072 × 2048 Bayer RG 8Type-C interface$969.00View
MV-CT060R-60UC01-BASE6.3 MP, USB3, Color3072× 204860.9 fps @3072× 2048 Bayer RG 8Type-C port$969.00View
MV-CT060R-60UM01-BASE6.3 MP, USB3, Mono3072× 204860.9 fps @3072× 2048 Mono 8Type-C port$969.00View
MV-CT0MU0089/G/NN/NN8.8 MP, 1", USB3, Mono4096 × 216042 fps @ 4096 × 2160 Mono 8Type-C interface$1,149.00View
MV-CT0CU0089/G/NN/NN8.8 MP, 1", USB3, Color4096 × 216042 fps @ 4096 × 2160 Bayer GB 8Type-C interface$1,149.00View
MV-CT1MU0089/G/NN/NN8.8 MP, 1", USB3, Mono4096 × 216042 fps @ 4096 × 2160 Mono 8Type-C interface$1,149.00View
MV-CT1CU0089/G/NN/NN8.8 MP, 1", USB3, Color4096 × 216042 fps @ 4096 × 2160 Bayer GB 8Type-C interface$1,149.00View
MV-CT2MU0089/G/NN/NN8.8 MP, 1", USB3, Mono4096 × 216042 fps @ 4096 × 2160 Mono 8Type-C interface$1,149.00View
MV-CT2CU0089/G/NN/NN8.8 MP, 1", USB3, Color4096 × 216042 fps @ 4096 × 2160 Bayer GB 8Type-C interface$1,149.00View
MV-CT089G-42UM01-BASE8.8 MP, USB3, Mono4096 × 216042 fps @4096 × 2160 Mono 8Type-C port$1,149.00View
MV-CT089G-42UC01-BASE8.8 MP, USB3, Color4096 × 216042 fps @4096 × 2160 Bayer GB 8Type-C port$1,149.00View
MV-CT089G-42UM01-MAX8.8 MP, USB3, Mono4096 × 216042 fps @4096 × 2160 Mono 8Type-C port$1,149.00View
MV-CT089G-42UM01-PRO8.8 MP, USB3, Mono4096 × 216042 fps @4096 × 2160 Mono 8Type-C port$1,149.00View
MV-CT089G-42UC01-MAX8.8 MP, USB3, Color4096 × 216042 fps @4096 × 2160 Bayer GB 8Type-C port$1,149.00View
MV-CT089G-42UC01-PRO8.8 MP, USB3, Color4096 × 216042 fps @4096 × 2160 Bayer GB 8Type-C port$1,149.00View
MV-CT0MU0120/G/NN/NN12.3 MP, 1.1", USB3, Mono4096 × 300031 fps @ 4096 × 3000 Mono 8Type-C interface$1,349.00View
MV-CT0CU0120/G/NN/NN12.3 MP, 1.1", USB3, Color4096 × 300031 fps @ 4096 × 3000 Bayer GB 8Type-C interface$1,349.00View
MV-CT1MU0120/G/NN/NN12.3 MP, 1.1", USB3, Mono4096 × 300031 fps @ 4096 × 3000 Mono 8Type-C interface$1,349.00View
MV-CT1CU0120/G/NN/NN12.3 MP, 1.1", USB3, Color4096 × 300031 fps @ 4096 × 3000 Bayer GB 8Type-C interface$1,349.00View
MV-CT2MU0120/G/16LC/WN12.3 MP, 1.1", USB3, Mono4096 × 300031 fps @ 4096 × 3000 Mono 8Type-C interface$1,349.00View
MV-CT2CU0120/G/16LC/WN12.3 MP, 1.1", USB3, Color4096 × 300031 fps @ 4096 × 3000 Bayer GB 8Type-C interface$1,349.00View
MV-CT2MU0120/G/NN/NN12.3 MP, 1.1", USB3, Mono4096 × 300031 fps @ 4096 × 3000 Mono 8Type-C interface$1,349.00View
MV-CT2CU0120/G/NN/NN12.3 MP, 1.1", USB3, Color4096 × 300031 fps @ 4096 × 3000 Bayer GB 8Type-C interface$1,349.00View
MV-CT120G-30UM01-BASE12.3 MP, USB3, Mono4096 × 300031 fps @4096 × 3000 Mono 8Type-C port$1,349.00View
MV-CT120G-30UC01-BASE12.3 MP, USB3, Color4096 × 300031 fps @4096 × 3000 Bayer GB 8Type-C port$1,349.00View
MV-CT120G-30UM01-PRO12.3 MP, USB3, Mono4096 × 300031 fps @4096 × 3000 Mono 8Type-C port$1,349.00View
MV-CT120G-30UC01-PRO12.3 MP, USB3, Color4096 × 300031 fps @4096 × 3000 Bayer GB 8Type-C port$1,349.00View
MV-CT120G-30UM01-MAX12.3 MP, USB3, Mono4096 × 300031 fps @4096 × 3000 Mono 8Type-C port$1,349.00View
MV-CT120G-30UC01-MAX12.3 MP, USB3, Color4096 × 300031 fps @4096 × 3000 Bayer GB 8Type-C port$1,349.00View
MV-CT0MU0200/R/NN/NN20 MP, 1", USB3, Mono5472 × 364819.3 fps @ 5472 × 3648 Mono 8Type-C interface$1,629.00View
MV-CT0CU0200/R/NN/NN20 MP, 1", USB3, Color5472 × 364819.3 fps @ 5472 × 3648 Bayer GB 8Type-C interface$1,629.00View
MV-CT200R-19UC01-BASE20 MP, USB3, Color5472 × 364819.3 fps @5472 × 3648 Bayer GB 8Type-C port$1,629.00View
MV-CT200R-19UM01-BASE20 MP, USB3, Mono5472 × 364819.3 fps @5472 × 3648 Mono 8Type-C port$1,629.00View
