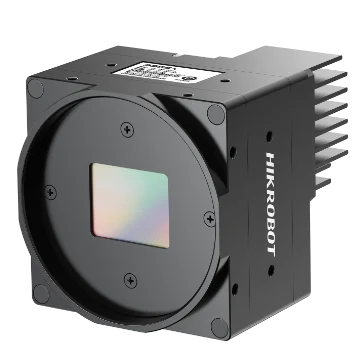

CH Series CoaXPress Area Scan Cameras

Area scan cameras

CH Series CoaXPress Area Scan Cameras

  • 66 models
  • from $1,489.00
  • Series HIK-CH-CXP

The CH Series CoaXPress Area Scan Cameras is a range of 66 area scan cameras from Hikrobot, from $1,489.00. It comes in 32 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 66 models Series datasheet (PDF)

The series at a glance

Sizes / versions
5 MP, 2/3", CoaXPress, Color, 5 MP, 2/3", CoaXPress, Mono, 5.6 MP, 1/2", CoaXPress, Color, 5.6 MP, 1/2", CoaXPress, Mono, 12.3 MP, 1.1", CoaXPress, Color, 12.3 MP, 1.1", CoaXPress, Mono, 12.6 MP, 1.1", CoaXPress, Color, 12.6 MP, 1.1", CoaXPress, Mono, 12.6 MP, CoaXPress, Mono, 14.2 MP, CoaXPress, Color, 14.2 MP, CoaXPress, Mono, 21 MP, CoaXPress, Color, 21 MP, CoaXPress, Mono, 24.5 MP, 1.2", CoaXPress, Mono, 26.2 MP, 1.1", CoaXPress, Color, 26.2 MP, 1.1", CoaXPress, Mono and 16 more
Interface
CoaXPress
Resolution
5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP +
Shutter
Global, Rolling
Colour
Color, Mono
Lens mount
M58, M72, C-mount, F-mount
Sensor format
1/2", 2/3", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large

Features

  • Resolution 5120 × 5120, pixel size 2.5 µm
  • Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
  • CXP-12 interface for data transmission
  • Compatible with CoaXPress and the GenICam standard
  • Global-shutter CMOS with high dynamic range, good SNR and excellent image quality
  • Low-power fanless design for stable on-the-fly capture
  • Resolution of 2592 × 2160, pixel size of 2.5 µm × 2.5 µm.
  • Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.

All 66 models in the CH Series CoaXPress Area Scan Cameras

Link
MVGL-AC512G-150YC26.2 MP, CoaXPress, Color5120 × 5120150 fps @5120 × 5120 Bayer BG 81.1”$1,489.00View
HIK-C650-CCXP65.4 MP, CoaXPress, Color9344 × 700071 fps @9344 × 7000 Bayer RG 829.9 mm x 22.4 mm$1,919.00View
MV-CH050-90XM-C-NN5.6 MP, 1/2", CoaXPress, Mono2592 × 2160213 fps @ 2592 × 2160 Mono 81/2"$7,859.00quoteView
MV-CH050-90XC-C-NN5.6 MP, 1/2", CoaXPress, Color2592 × 2160213 fps @ 2592 × 2160 Bayer BG 81/2"$7,859.00quoteView
MV-CH050-90Y1M-NN5 MP, 2/3", CoaXPress, Mono2448 × 2048164 fps @ 2448 × 2048 Mono 82/3"$7,859.00quoteView
MV-CH050-90Y1M-NN V25 MP, 2/3", CoaXPress, Mono2448 × 2048164 fps @ 2448 × 2048 Mono 82/3"$7,859.00quoteView
MV-CH050-90Y1C-NN5 MP, 2/3", CoaXPress, Color2448 × 2048164 fps @ 2448 × 2048 Bayer GB 82/3"$7,859.00quoteView
MV-CH050-90Y1C-NN V25 MP, 2/3", CoaXPress, Color2448 × 2048164 fps @ 2448 × 2048 Bayer GB 82/3"$7,859.00quoteView
MV-CH120-40XM-M58S-NN12.6 MP, CoaXPress, Mono4096 × 3072188 fps @ 4096 × 3072 Mono 822.5 mm × 16.9 mm$7,859.00quoteView
MV-CH120-90X2M-C-NN12.6 MP, 1.1", CoaXPress, Mono4096 × 307295 fps @ 4096 × 3072 Mono 81.1"$7,859.00quoteView
MV-CH120-90X2C-C-NN12.6 MP, 1.1", CoaXPress, Color4096 × 307295 fps @ 4096 × 3072 Bayer GB 81.1"$7,859.00quoteView
MV-CH120-90Y1M-NH12.6 MP, 1.1", CoaXPress, Mono4096 × 307293.9 fps @ 4096 × 3072 Mono 81.1"$7,859.00quoteView
MV-CH120-90Y1C-NH12.6 MP, 1.1", CoaXPress, Color4096 × 307293.9 fps @ 4096 × 3072 Bayer GB 81.1"$7,859.00quoteView
MV-CH120-90Y1M-NN12.6 MP, 1.1", CoaXPress, Mono4096 × 307293.9 fps @ 4096 × 3072 Mono 81.1"$7,859.00quoteView
MV-CH120-90Y1C-NN12.6 MP, 1.1", CoaXPress, Color4096 × 307293.9 fps @ 4096 × 3072 Bayer GB 81.1"$7,859.00quoteView
MV-CH120-60Y1M-NN V212.6 MP, 1.1", CoaXPress, Mono4096 × 307280 fps @ 4096 × 3072 Mono 81.1"$7,859.00quoteView
MV-CH120-60Y1C-NN V212.6 MP, 1.1", CoaXPress, Color4096 × 307280 fps @ 4096 × 3072 Bayer GB 81.1"$7,859.00quoteView
MV-CH120-90Y2M-C-NN12.3 MP, 1.1", CoaXPress, Mono4096 × 3008149 fps @ 4096 × 3008 Mono 81.1"$7,859.00quoteView
MV-CH120-90Y2C-C-NN12.3 MP, 1.1", CoaXPress, Color4096 × 3008149 fps @ 4096 × 3008 Bayer GB 81.1"$7,859.00quoteView
MV-CH140-90XM-M58S-NN14.2 MP, CoaXPress, Mono4608 × 3072169 fps @ 4608 × 3072 Mono 825.34 mm × 16.9 mm$8,069.00quoteView
MV-CH140-90YM-M58S-NF14.2 MP, CoaXPress, Mono4608 × 3072339 fps @ 4608 × 3072 Mono 825.34 mm × 16.9 mm$8,069.00quoteView
MV-CH140-90YC-M58S-NF14.2 MP, CoaXPress, Color4608 × 3072339 fps @ 4608 × 3072 Bayer GR 825.34 mm × 16.9 mm$8,069.00quoteView
MV-CH210-90YM-M58S-NN21 MP, CoaXPress, Mono5120 × 4096222 fps @ 5120 × 4096 Mono 823.04 mm × 18.43 mm$9,819.00quoteView
MV-CH210-90YC-M58S-NN21 MP, CoaXPress, Color5120 × 4096222 fps @ 5120 × 4096 Bayer GB 823.04 mm × 18.43 mm$9,819.00quoteView
MV-CH210-90YC-M58S-NF21 MP, CoaXPress, Color5120 × 4096222 fps @5120 × 4096 Bayer GB 823.04 mm × 18.43 mm$9,819.00quoteView
MV-CH250-20XM-M58S-NN26.2 MP, CoaXPress, Mono5120 × 512080 fps @ 5120 × 512023 mm × 23 mm$10,399.00quoteView
MV-CH250-20XC-M58S-NN26.2 MP, CoaXPress, Color5120 × 512080 fps@5120 × 5120 Bayer RG 823 mm (H) x 23 mm (V)$10,399.00quoteView
MV-CH240-10YM-C-NN24.5 MP, 1.2", CoaXPress, Mono5312 × 4608191.7 fps @ 5312 × 4608 Mono 81.2"$10,609.00quoteView
MV-CH250-90XM-C-NN26.2 MP, 1.1", CoaXPress, Mono5120 × 512041.5 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90XC-C-NN26.2 MP, 1.1", CoaXPress, Color5120 × 512041.5 fps @ 5120 × 5120 Bayer BG 81.1"$10,979.00quoteView
MV-CH250-90YM-C-NN26.2 MP, 1.1", CoaXPress, Mono5120 × 5120150 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90YC-C-NN26.2 MP, 1.1", CoaXPress, Color5120 × 5120150 fps @ 5120 × 5120 Bayer BG 81.1"$10,979.00quoteView
MV-CH250-90YM-M58S-NN26.2 MP, 1.1", CoaXPress, Mono5120 × 5120150 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90YC-M58S-NN26.2 MP, 1.1", CoaXPress, Color5120 × 5120150 fps @5120 × 5120 Bayer BG 81.1"$10,979.00quoteView
MV-CH250-90YN-C-NN26.2 MP, 1.1", CoaXPress, Mono5120 × 5120150 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90Y1M-NH26.2 MP, 1.1", CoaXPress, Mono5120 × 512041.3 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90Y1C-NH26.2 MP, 1.1", CoaXPress, Color5120 × 512041.3 fps @ 5120 × 5120 Bayer BG 81.1"$10,979.00quoteView
MV-CH250-90Y1M-NN26.2 MP, 1.1", CoaXPress, Mono5120 × 512041.3 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90Y1C-NN26.2 MP, 1.1", CoaXPress, Color5120 × 512041.3 fps @ 5120 × 5120 Bayer BG 81.1"$10,979.00quoteView
MV-CH250-90Y2M-C-NF26.2 MP, 1.1", CoaXPress, Mono5120 × 512085 fps @ 5120 × 5120 Mono 81.1"$10,979.00quoteView
MV-CH250-90YM-M58S-NN V226.2 MP, CoaXPress, Mono5120 × 5120150 fps @5120 × 5120 Mono 81.1”$10,979.00quoteView
MV-CH250-90YC-M58S-NN V226.2 MP, CoaXPress, Color5120 × 5120150 fps @5120 × 5120 Bayer BG 81.1”$10,979.00quoteView
MV-CH250-90YM-C-NN V226.2 MP, CoaXPress, Mono5120 × 5120150 fps @5120 × 5120 Mono 81.1”$10,979.00quoteView
MV-CH250-90YC-C-NN V226.2 MP, CoaXPress, Color5120 × 5120150 fps @5120 × 5120 Bayer BG 81.1”$10,979.00quoteView
MV-CH250-90XN-C-NN26.2 MP, CoaXPress5120 × 512041.5 fps @5120 × 5120 Mono 81.1''$10,979.00quoteView
MV-CH250-90YN-C-NN V226.2 MP, CoaXPress5120 × 5120150 fps @5120 × 5120 Mono 81.1”$10,979.00quoteView
MV-CH650-90XM-M58S-NF65.4 MP, CoaXPress, Mono9344 × 700031.5 fps @ 9216 × 700029.9 mm × 22.4 mm$11,789.00quoteView
MV-CH650-90XC-M58S-NF65.4 MP, CoaXPress, Color9344 × 700031.5 fps @ 9344 × 700029.9 mm × 22.4 mm$11,789.00quoteView
MV-CH650-90YM-M58S-NN65.4 MP, CoaXPress, Mono9344 × 700071 fps @ 9344 × 700029.9 mm × 22.4 mm$17,349.00quoteView
MV-CH650-90YC-M58S-NN65.4 MP, CoaXPress, Color9344 × 700071 fps @ 9344 × 700029.9 mm × 22.4 mm$17,349.00quoteView
MV-CH650-90YC-F-NN65.4 MP, CoaXPress, Mono9344 × 700071 fps @ 9344 × 700029.9 mm × 22.4 mm$17,349.00quoteView
MV-CH650-90XM-F-NF65.4 MP, CoaXPress, Mono9344 × 700031.5 fps @ 9216 × 700029.9 mm × 22.4 mm$17,349.00quoteView
MV-CH650-90YM-M58S-NN V265.4 MP, CoaXPress, Mono9344 × 700071 fps @ 9344 × 7000 Mono 829.9 mm × 22.4 mm$17,349.00quoteView
MV-CH1030-90YM-M58S-NN103.6 MP, CoaXPress, Mono11264 × 920024.3 fps @ 11264 × 9200 Mono 836.1 mm × 29.4 mm$21,829.00quoteView
MV-CH1050-10YM-M58S-NL104.9 MP, CoaXPress, Mono10240 × 1024045 fps @ 10240 × 10240 Mono 839.7 mm diagonal$21,959.00quoteView
MV-CH1510-10XM-M72-TF V2151 MP, CoaXPress, Mono14192 × 106406.2 fps @14192 × 10640 Mono 866.7 mm$26,349.00quoteView
MV-CH1510-10XC-M72-TF V2151 MP, CoaXPress, Color14192 × 106406.2 fps @14192 × 10640 Bayer RG 866.7 mm$26,349.00quoteView
MV-CH1510-11XM-M72-TF151.2 MP, CoaXPress, Mono14208 × 106406.2 fps @ 14208 × 1064066.7 mm$26,369.00quoteView
MV-CH1510-11XC-M72-TF151.2 MP, CoaXPress, Color14208 × 106406.2 fps @ 14208 × 1064066.7 mm$26,369.00quoteView
MV-CH1520-90YM-M72-TF152.2 MP, CoaXPress, Mono16544 × 920016.3 fps @ 16544 × 9200 Mono 853 mm × 29.4 mm$26,459.00quoteView
MV-CH1510-10XM-M72-NF151.2 MP, CoaXPress, Mono14208 × 106406.2 fps @ 14208 × 1064066.7 mm$33,149.00quoteView
MV-CH1510-10XC-M72-NF151.2 MP, CoaXPress, Color14208 × 106406.2 fps @ 14208 × 1064066.7 mm$33,149.00quoteView
MV-CH2450-10YM-M72-TF245.8 MP, CoaXPress, Mono19200 × 1280012.4 fps @ 19200 × 12800 Mono 864.84 mm$33,619.00quoteView
MV-CH2450-10YC-M72-TF245.8 MP, CoaXPress, Color19200 × 1280012.4 fps @ 19200 × 12800 Bayer RG 864.84 mm$33,619.00quoteView
MV-CH6040-10XM-M72-NF604.7 MP, CoaXPress, Mono28416 × 212801.45 fps @ 28416 × 21280 Mono 866.7 mm$73,649.00quoteView
MV-CH6040-10XC-M72-NF604.7 MP, CoaXPress, Color28416 × 212801.38 fps @14208 × 10640 RGB 866.7 mm$73,649.00quoteView
