Hikrobot MV-CH650-90YM-M58S-NN 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, M58-mount, without fan
  • Hikrobot MV-CH650-90YM-M58S-NN 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, M58-mount, without fan
  • MV-CH650-90YM-M58S-NN dimensions (mm)

Area scan cameras

Hikrobot MV-CH650-90YM-M58S-NN 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, M58-mount, without fan

Model MV-CH650-90YM-M58S-NNHikrobot

  • Resolution9344 × 7000
  • SensorCMOS, global shutter
  • InterfaceCoaXPress with Micro-BNC interface
  • Speed71 fps @ 9344 × 7000
  • Lens mountM58
  • Mono / colourMono
$17,349.00
List price

Ships in 2-3 weeks

1.01 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Area scan cameras

MV-CH650-90YM-M58S-NN: resolution 9344 x 7000; sensor type CMOS, global shutter; sensor size 29.9 mm x 22.4 mm; max. frame rate 71 fps @ 9344 x 7000; mono/color Mono.

Hikrobot MV-CH650-90YM-M58S-NN 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, M58-mount, without fan. Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm. Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH650-90YM-M58S-NN
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3265
Pixel size3.2 μm × 3.2 μm
Sensor size29.9 mm × 22.4 mm
Resolution9344 × 7000
Max. frame rate71 fps @ 9344 × 7000
Dynamic range66 dB
SNR40 dB
Gain1.25x
Exposure time12 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceCoaXPress with Micro-BNC interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above

Electrical

Power supply24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumptionTyp. 13.0 W @ 24 VDC

Mechanical

Lens mountM58*0.75, flange back length 11.48 mm
Dimension84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
WeightApprox. 650 g (1.4 lb.)
Shipping weight (estimated)1.01 kg

Engineering data

Field of view and resolution with the MV-CH650-90YM-M58S-NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area29.9 × 22.4 mmLarge format optical format
Lens image circle needed≥ Ø 37.4 mmM58
Pixel pitch3.2 µm9344 x 7000 px
Image data at max frame rate4644 MB/sCalculated: 71 fps × 9344 × 7000 px at 8 bit
With a 35 mm lens at 500 mm427 × 320 mm0.046 mm per pixel
Dynamic range66 dB
SNR40 dB
Power consumption13.0 Wtyp. at 24 V DC
ShutterGlobal
Exposure range12 µs to 10 s
Weight650 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
16 mm561 × 420 mm0.06 mm per pixel934 × 700 mm0.1 mm per pixel1869 × 1400 mm0.2 mm per pixel
25 mm359 × 269 mm0.038 mm per pixel598 × 448 mm0.064 mm per pixel1196 × 896 mm0.128 mm per pixel
35 mm256 × 192 mm0.027 mm per pixel427 × 320 mm0.046 mm per pixel854 × 640 mm0.091 mm per pixel
50 mm179 × 134 mm0.019 mm per pixel299 × 224 mm0.032 mm per pixel598 × 448 mm0.064 mm per pixel
75 mm120 × 89.6 mm0.013 mm per pixel199 × 149 mm0.021 mm per pixel399 × 299 mm0.043 mm per pixel
100 mm89.7 × 67.2 mm0.01 mm per pixel150 × 112 mm0.016 mm per pixel299 × 224 mm0.032 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

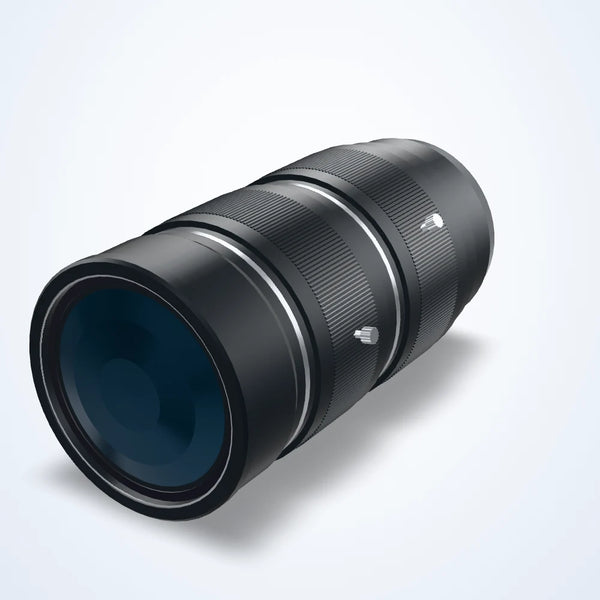

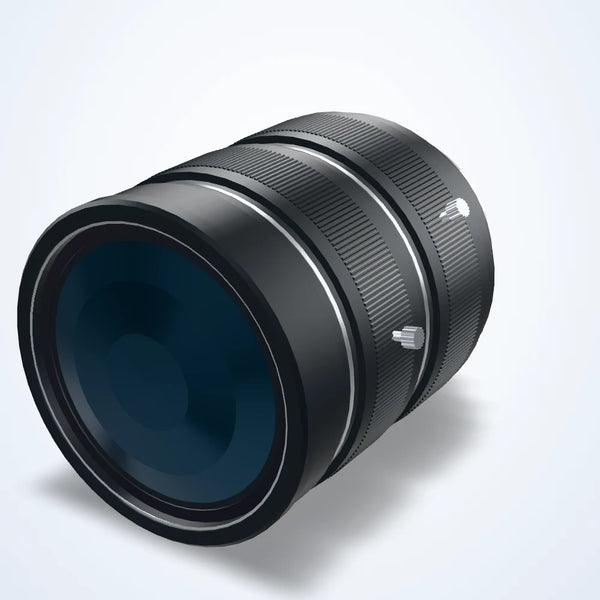

Lenses for this M58 camera

Covers up to 46 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 42 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 46 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 60 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 46 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 44 mm diagonal; this camera's sensor is 37.4 mm

Cables and frame grabbers

Other models in the CH Series CoaXPress Area Scan Cameras series

See all 66 models
