Hikrobot MV-CH1510-10XM-M72-NF 151 MP Area Scan Camera, CoaXPress, IMX411, Mono, M72-mount, with fan
  • Hikrobot MV-CH1510-10XM-M72-NF 151 MP Area Scan Camera, CoaXPress, IMX411, Mono, M72-mount, with fan
  • MV-CH1510-10XM-M72-NF dimensions (mm)

Area scan cameras

Hikrobot MV-CH1510-10XM-M72-NF 151 MP Area Scan Camera, CoaXPress, IMX411, Mono, M72-mount, with fan

Model MV-CH1510-10XM-M72-NFHikrobot

  • Resolution14208 × 10640
  • SensorCMOS, rolling shutter
  • InterfaceCoaXPress with DIN interface
  • Speed6.2 fps @ 14208 × 10640
  • Lens mountM72
  • Mono / colourMono
$33,149.00
List price

Ships in 2-3 weeks

1.5 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-ch1510-10xm-m72-nf

More pixels than most of the series, for finer detail over the same field: MV-CH1510-10XM-M72-NF, the mono version, has a 14208 x 10640 (151 MP) sensor, in the upper half of the 16 resolutions in the series.

MV-CH1510-10XM-M72-NF: resolution 14208 x 10640; sensor type CMOS, rolling shutter; sensor size 66.7 mm; max. frame rate 6.2 fps @ 14208 x 10640; mono/color Mono.

Hikrobot MV-CH1510-10XM-M72-NF 151MP Area Scan Camera, CoaXPress, IMX411, Mono, M72-mount, with fan.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH1510-10XM-M72-NF
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX411
Pixel size3.76 μm × 3.76 μm
Sensor size66.7 mm
Resolution14208 × 10640
Max. frame rate6.2 fps @ 14208 × 10640
Dynamic range78.7 dB
SNR46.4 dB
Gain0 dB to 30 dB
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset, Rolling
Mono/colorMono
Pixel formatMono 8/10/12/16
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationNot supported
Reverse imageSupports horizontal reverse image output

Interfaces and I/O

Data interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareFrame grabber software meeting with CoaXPress Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above

Electrical

Power supplyCamera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC
Power consumptionCamera with fan: Typ. 18 W @ 24 VDC; Camera with TEC non-cooling: Typ. 21 W @ 24 VDC; Camera with TEC cooling: Typ. 55 W @ 24 VDC

Mechanical

Lens mountM72*0.75, flange back length 19.55 mm
DimensionCamera with fan: 100 mm × 100 mm × 74.3 mm (3.9" × 3.9" × 2.9"); Camera with TEC: 120 mm × 120 mm × 84.6 mm (4.7" × 4.7" × 3.3")
WeightCamera with fan: Approx. 1.0 kg (2.2 lb.); Camera with TEC: Approx. 1.9 kg (4.2 lb.)
Shipping weight (estimated)1.50 kg

Engineering data

Field of view and resolution with the MV-CH1510-10XM-M72-NF

Sensor area53.42 × 40.01 mmMedium format optical format
Lens image circle needed≥ Ø 66.7 mmM72
Pixel pitch3.76 µm14208 x 10640 px
Image data at max frame rate937 MB/sCalculated: 6.2 fps × 14208 × 10640 px at 8 bit
With a 60 mm lens at 500 mm445 × 333 mm0.031 mm per pixel
Dynamic range78.7 dB
SNR46.4 dB
ShutterRolling
Exposure range15 µs to 10 s
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
35 mm458 × 343 mm0.032 mm per pixel763 × 572 mm0.054 mm per pixel1526 × 1143 mm0.107 mm per pixel
50 mm321 × 240 mm0.023 mm per pixel534 × 400 mm0.038 mm per pixel1068 × 800 mm0.075 mm per pixel
60 mm267 × 200 mm0.019 mm per pixel445 × 333 mm0.031 mm per pixel890 × 667 mm0.063 mm per pixel
85 mm189 × 141 mm0.013 mm per pixel314 × 235 mm0.022 mm per pixel628 × 471 mm0.044 mm per pixel
100 mm160 × 120 mm0.011 mm per pixel267 × 200 mm0.019 mm per pixel534 × 400 mm0.038 mm per pixel
150 mm107 × 80 mm0.008 mm per pixel178 × 133 mm0.013 mm per pixel356 × 267 mm0.025 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $34,948.00

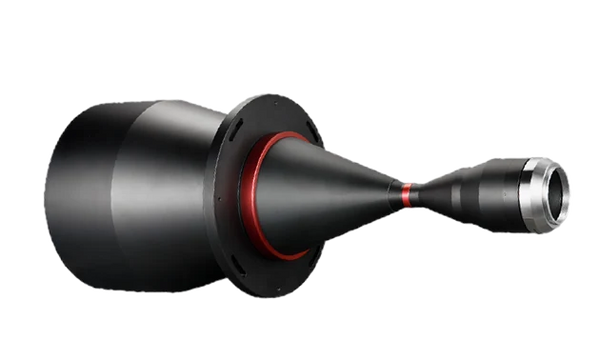

Lenses for this M72 camera

This camera's 66.7 mm sensor diagonal uses 100 % of the lens's 67 mm image circle

This camera's 66.7 mm sensor diagonal uses 100 % of the lens's 67 mm image circle

This camera's 66.7 mm sensor diagonal uses 99 % of the lens's 67.6 mm image circle

This camera's 66.7 mm sensor diagonal uses 100 % of the lens's 67 mm image circle

This camera's 66.7 mm sensor diagonal uses 99 % of the lens's 67.6 mm image circle

This camera's 66.7 mm sensor diagonal uses 98 % of the lens's 67.8 mm image circle

Cables and frame grabbers

Before you buy

Questions about the MV-CH1510-10XM-M72-NF

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CH1510-10XM-M72-NF?

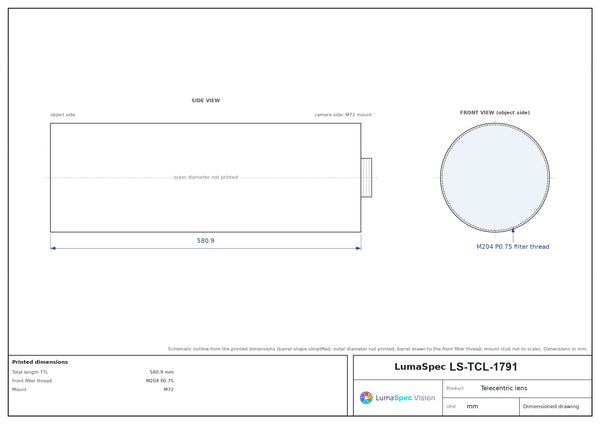

M72-mount lenses whose image circle covers its sensor diagonal (about 66.7 mm): LS-FFL-1245 (90 mm), LS-FFL-1423 (55 mm), LS-TCL-1791 (0.398x) and LS-FFL-1230 (55 mm).

What data rate does the MV-CH1510-10XM-M72-NF need over CoaXPress?

About 937 MB/s at its printed 6.2 fps at 14208 x 10640 (8 bits per pixel, calculated).

Which cables and frame grabbers fit the MV-CH1510-10XM-M72-NF?

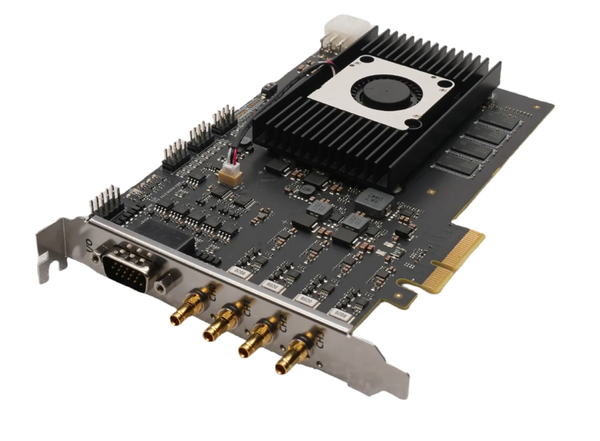

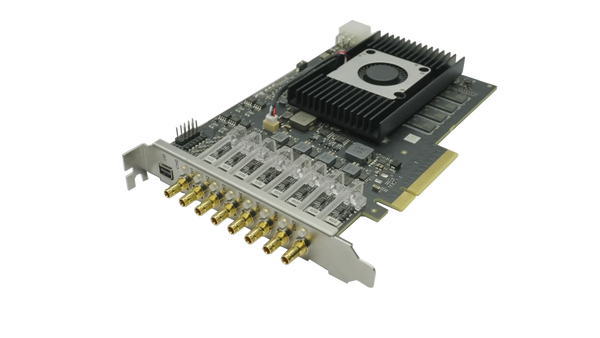

Fit-tested for its CoaXPress interface: LS-CBL-0170 (1.5 m), frame grabber MV-GX1002, frame grabber MV-GX1004, frame grabber MV-GX1008 and frame grabber MV-GX1102.

How does the MV-CH1510-10XM-M72-NF connect?

The data interface is CoaXPress with DIN interface.

What I/O does the MV-CH1510-10XM-M72-NF have?

The digital I/O is 12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1..

Other models in the CH Series CoaXPress Area Scan Camera series

See all 66 models

How this model compares

ModelResolutionSensorInterfaceSpeedLens mountPriceAvailabilityLink
MV-CH650-90XM-M58S-NF9344 x 7000CMOS, global shutterCoaXPress with DIN interface31.5 fps @ 9216 x 7000M58$11,789.00 Quote Ships in 2-3 weeks View
MV-CH650-90XM-F-NF9344 x 7000CMOS, global shutterCoaXPress with DIN interface31.5 fps @ 9216 x 7000F-mount$17,349.00 Quote Ships in 2-3 weeks View
MV-CH1510-10XM-M72-TF V214192 x 10640CMOS, rolling shutterCoaXPress with DIN interface6.2 fps @ 14192 x 10640 Mono 8M72$26,349.00 Quote Ships in 2-3 weeks View
MV-CH1510-10XC-M72-TF V214192 x 10640CMOS, rolling shutterCoaXPress with DIN interface6.2 fps @ 14192 x 10640 Bayer RG 8M72$26,349.00 Quote Ships in 2-3 weeks View
MV-CH1510-11XM-M72-TF14208 x 10640CMOS, rolling shutterCoaXPress with DIN interface6.2 fps @ 14208 x 10640M72$26,369.00 Quote Ships in 2-3 weeks View
MV-CH1510-10XM-M72-NFThis model14208 x 10640CMOS, rolling shutterCoaXPress with DIN interface6.2 fps @ 14208 x 10640M72$33,149.00 Quote Ships in 2-3 weeks
MV-CH1510-10XC-M72-NF14208 x 10640CMOS, rolling shutterCoaXPress with DIN interface6.2 fps @ 14208 x 10640M72$33,149.00 Quote Ships in 2-3 weeks View
MV-CH2450-10YM-M72-TF19200 x 12800CMOS, rolling shutterCoaXPress with HD-BNC interface12.4 fps @ 19200 x 12800 Mono 8M72$33,619.00 Quote Ships in 2-3 weeks View
MV-CH2450-10YC-M72-TF19200 x 12800CMOS, rolling shutterCoaXPress with HD-BNC interface12.4 fps @ 19200 x 12800 Bayer RG 8M72$33,619.00 Quote Ships in 2-3 weeks View
