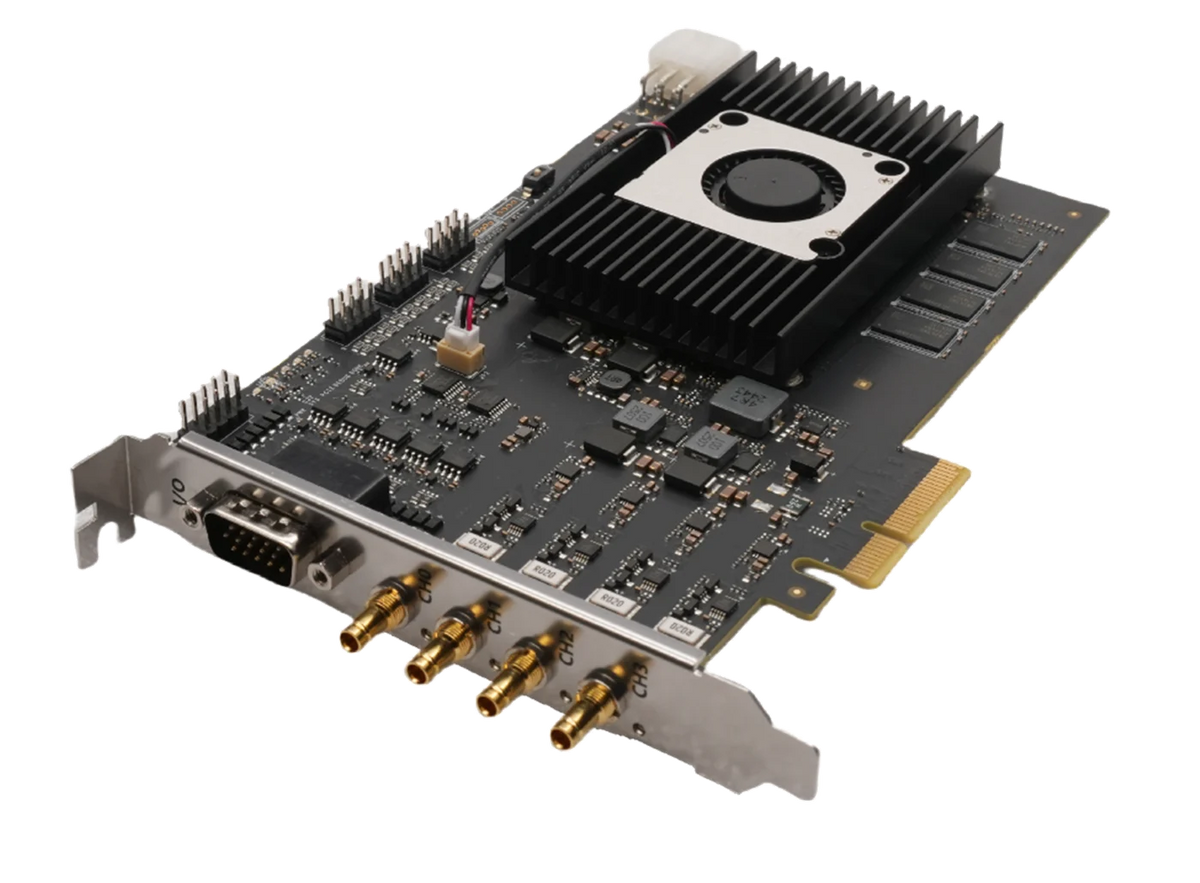

Hikrobot MV-GX1102 Dual CXP-6 Frame Grabber
Model MV-GX1102Hikrobot
- InterfacePCI-E gen3 × 4
- Ports2 ports
- On-board memory4 GB DDR4-RAM, 2 GB DDR4-RAM
- Bus indicator1
$1,949.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GX1102 Dual CXP-6 Frame Grabber. Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps data transfer speed. Supports PoCXP with each channel providing 13 W at most.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GX1102 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 × 4 |
| Bus indicator | 1 |
| Standard | CoaXPress 1.0/1.1 |
| Camera type supported | CXP-6 connector industrial camera |
| Camera quantity supported | 4 at most, 2 at most |
| Camera connection speed | 1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6) |
| Stream | 4, 2 |
| Stream indicator | 4, 2 |
Sensor and imaging
| Pixel format | Mono 8/10/12/16; Bayer 8/10/12/16; RGB 8 |
|---|
Interfaces and I/O
| Interface | DIN 1.0/2.3 × 4, DIN 1.0/2.3 × 2 |
|---|---|
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential.; I/O on bracket: Line 0 to Line 6 supports input and output (3.3 VDC to 24 VDC); I/O on PCB: Line 7 to Line 10 supports input and output (3.3 VDC to 24 VDC) |
| Connector | I/O on bracket: DB15 male header; I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | RoHS, CE, KC |
Computing
| On-board memory | 4 GB DDR4-RAM, 2 GB DDR4-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux |
Electrical
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
|---|---|
| Power consumption | Typ. 11.1 W (without PoCXP), Typ. 8.8 W (without PoCXP) |
Mechanical
| Delivery bandwidth | 3400 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Shipping weight (estimated) | 0.38 kg |
