Frame grabbers

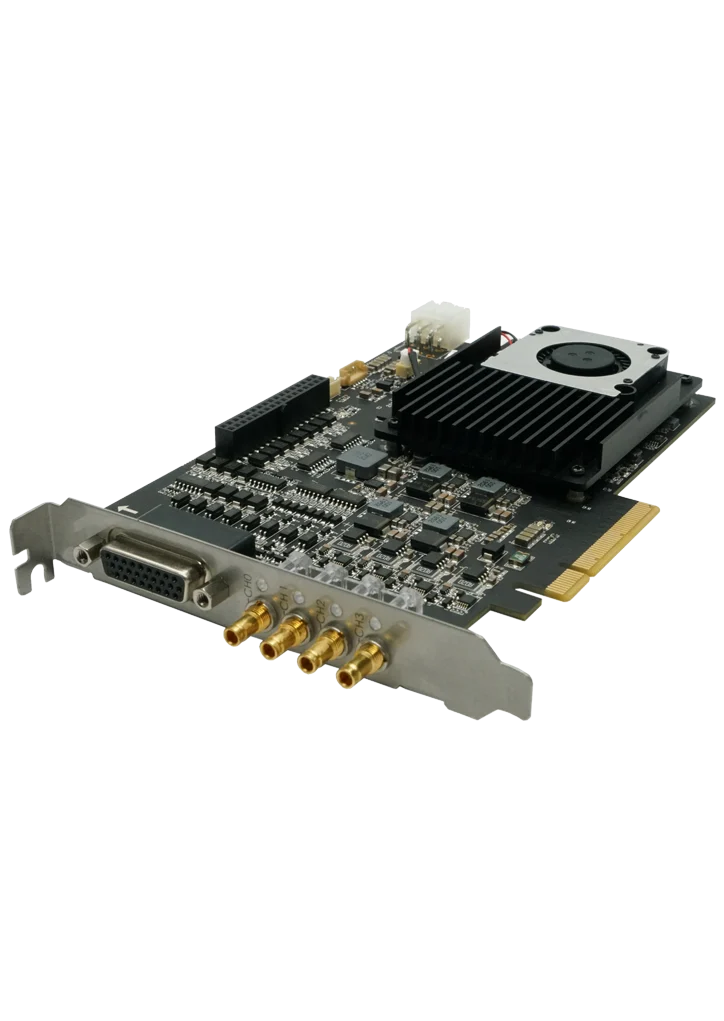

CXP-6 Frame Grabbers
- 5 models
- from $1,949.00
- Series HIK-CXP-6-FRAME-GRABBERS
The CXP-6 Frame Grabbers is a range of 5 frame grabbers from Hikrobot, from $1,949.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- CoaXPress
- Interface
- CoaXPress
- Ports
- 2 ports, 4 ports
Features
- Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps data transfer speed.
- Supports PoCXP with each channel providing 13 W at most.
- Various indicators indicate frame grabber status in real time.
- Adopts multiple I/O connectors for input and output.
- Provides SDK for secondary development.
- Complies with Genlcam standard.
All 5 models in the CXP-6 Frame Grabbers
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-GX1002 | DIN 1.0/2.3 × 2 | 2 at most | PCI-E gen2 × 8 | 2 GB DDR3-RAM | $1,949.00 | View |
| MV-GX1004 | DIN 1.0/2.3 × 4 | 4 at most | PCI-E gen2 × 8 | 4 GB DDR3-RAM | $1,949.00 | View |
| MV-GX1008 | DIN 1.0/2.3 × 2 | 2 at most | PCI-E gen2 × 8 | 2 GB DDR3-RAM | $1,949.00 | View |
| MV-GX1104 | DIN 1.0/2.3 × 4, DIN 1.0/2.3 × 2 | 4 at most, 2 at most | PCI-E gen3 × 4 | 4 GB DDR4-RAM, 2 GB DDR4-RAM | $1,949.00 | View |
| MV-GX1102 | DIN 1.0/2.3 × 4, DIN 1.0/2.3 × 2 | 4 at most, 2 at most | PCI-E gen3 × 4 | 4 GB DDR4-RAM, 2 GB DDR4-RAM | $1,949.00 | View |
