Cables

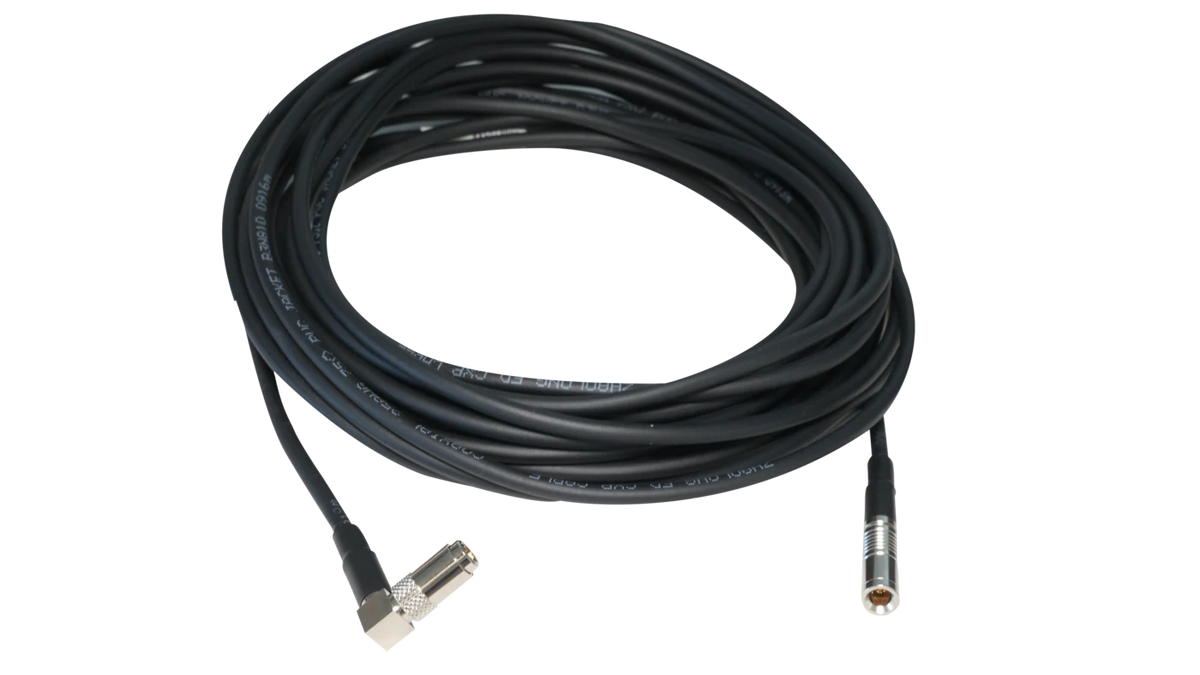

Camera Data Cable, DIN 1.0/2.3 to DIN 1.0/2.3 (angled), 1.5 m (LS-CBL-0170)
Model LS-CBL-0170
- Length1.5 m
- End ADIN 1.0/2.3
- End BDIN 1.0/2.3 (angled)
- Diameter5.0 mm
- Max. voltage300 VDC
- JacketPVC
$159.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, DIN 1.0/2.3 to DIN 1.0/2.3 (angled), 1.5 m. The CXP-6 high-flex angled data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0170 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| Cable diameter | 5.0 mm |
|---|---|
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 (angled) |
| Cable mechanical | Coaxial |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Applicable scenario | Drag chains |
Environment and compliance
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 300 VDC |
|---|
Mechanical
| Length | 1.5 m |
|---|---|
| Min. bending radius | 60 mm |
| Max. U-type bending cycles | 2 million |
| Shipping weight (estimated) | 0.31 kg |
