Cables

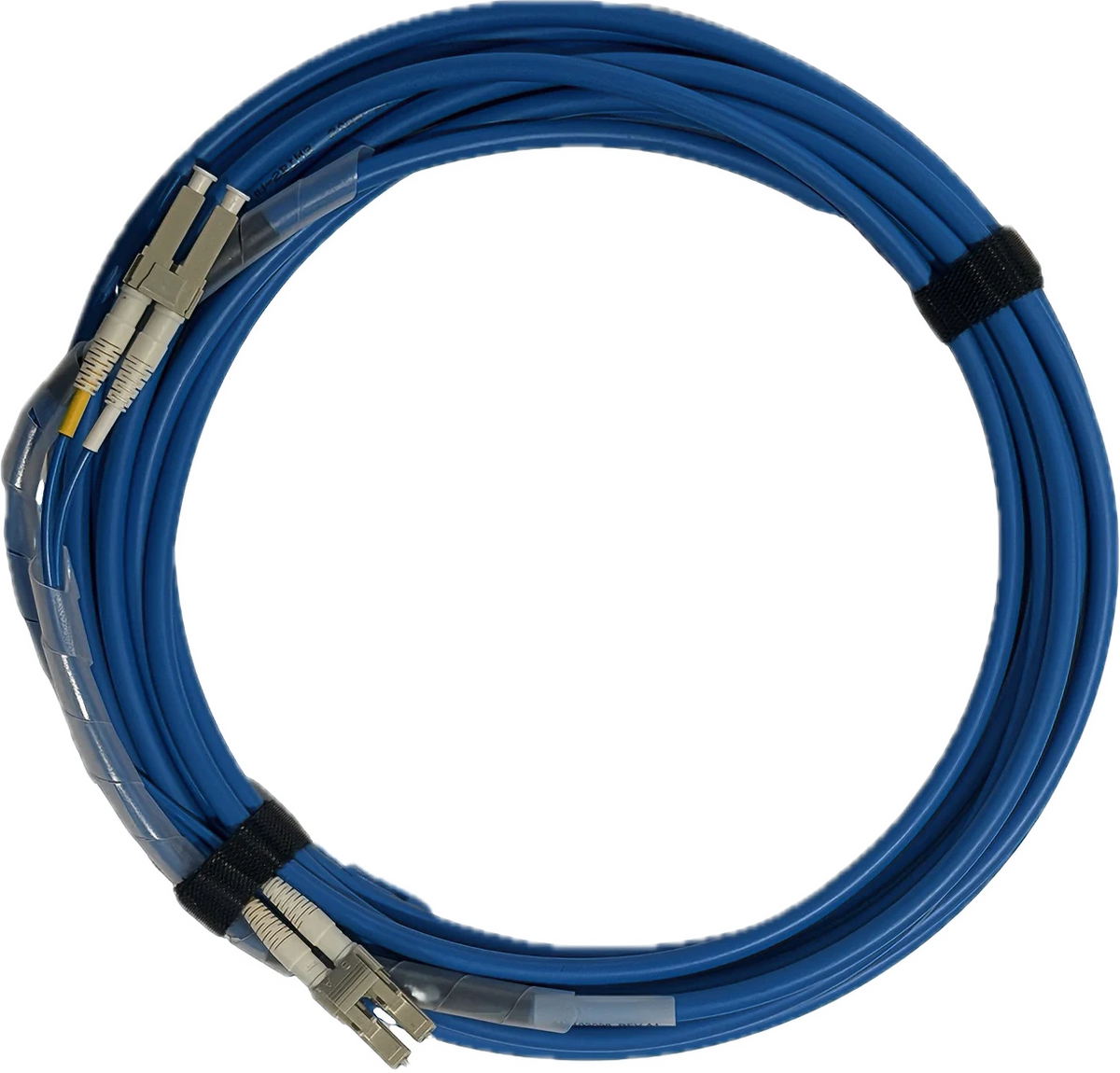

Camera Data Cable, LC (2-core) to LC (2-core), 30 m, drag-chain use (LS-CBL-0007)
Model LS-CBL-0007
- Length30 m
- End ALC (2-core)
- End BLC (2-core)
- Diameter5 mm
$179.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, LC (2-core) to LC (2-core), 30 m. High-flex 10GigE fiber patch cable, 850 nm center wavelength, multimode 50/125 μm, for 10GigE fiber data transmission in motion applications
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0007 |
|---|---|
| Fiber type | Multimode 50 μm/125 μm |
| Insertion loss | ≤0.30 dB |
| Return loss | ≥36 dB |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | LC (2-core) |
|---|---|
| End B connector | LC (2-core) |
| Cable diameter | 5 mm |
| Cable color | Blue |
| Connector durability | 200 mating cycles |
| Applicable scenario | Drag chain |
Light
| Central wavelength | 850 nm |
|---|
Environment and compliance
| Working temperature | -20°C ~ 75°C |
|---|---|
| Certification | RoHS |
Mechanical
| Length | 30 m |
|---|---|
| Min. bending radius | 60 mm |
| Max. U-type bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
