Cables
Camera Data Cable, SDR26 to SDR26, 3 m (LS-CBL-0054)
Model LS-CBL-0054
- Length3 m
- End ASDR26
- End BSDR26
- Diameter9.5 mm
- Max. voltage30 VDC
- JacketPVC
$209.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

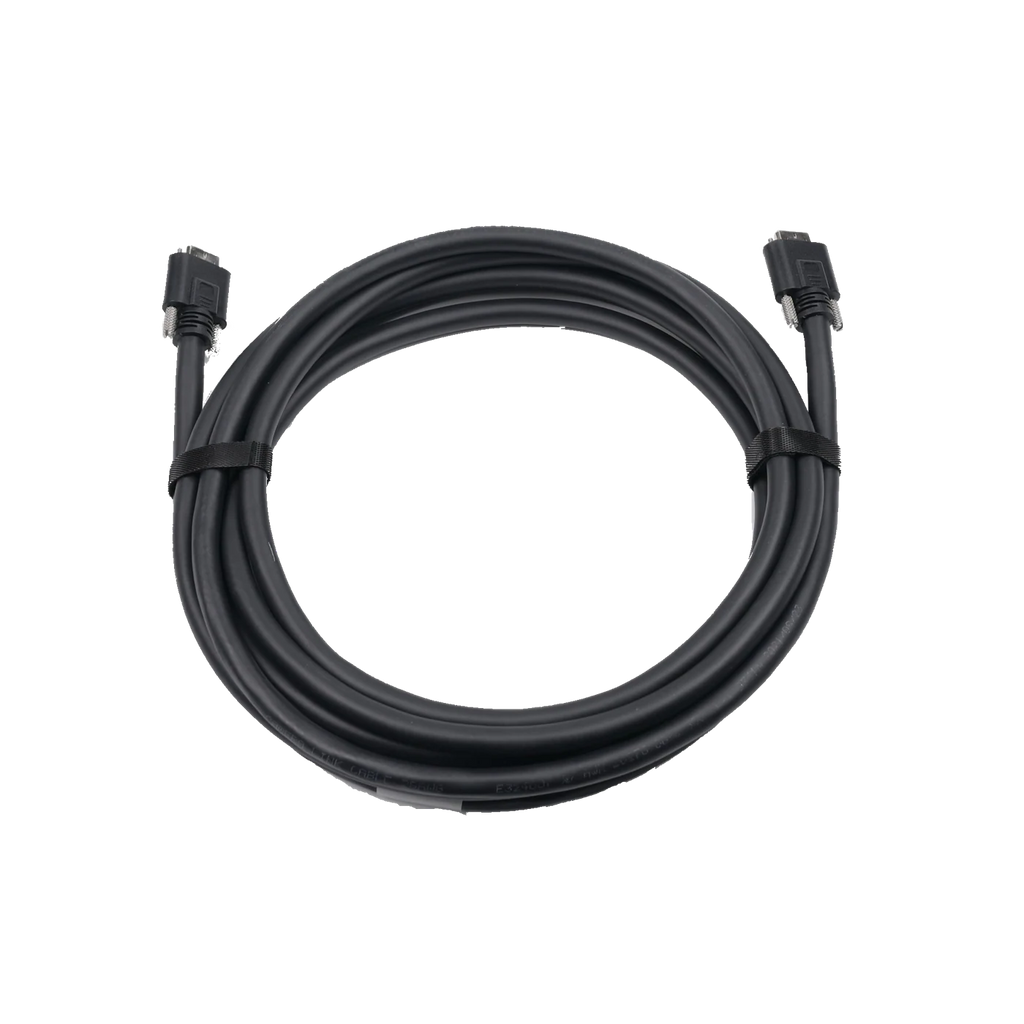

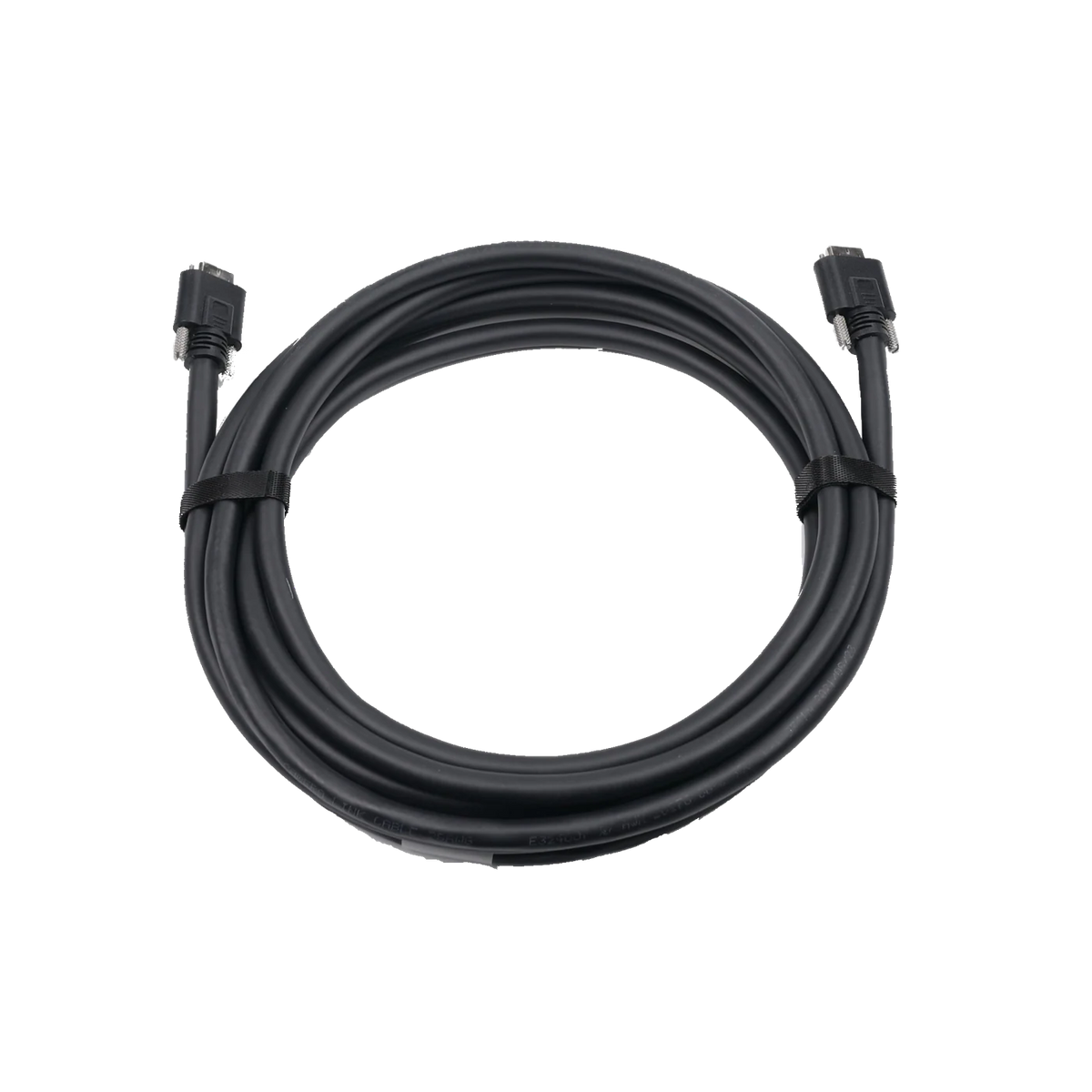

Camera Data Cable, SDR26 to SDR26, 3 m. The SDR26 High-Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0054 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | SDR26 |
|---|---|
| End B connector | SDR26 |
| Cable diameter | 9.5 mm |
| Cable mechanical | UL20276 |
| Cable color | Black |
| Connector durability | ≥ 500 mating cycles |
| Applicable scenario | Drag chain |
Environment and compliance
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
|---|---|
| Certification | UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Min. bending radius | 114 mm |
| Max. U-type bending cycles | 5 million |
| Shipping weight (estimated) | 0.31 kg |
