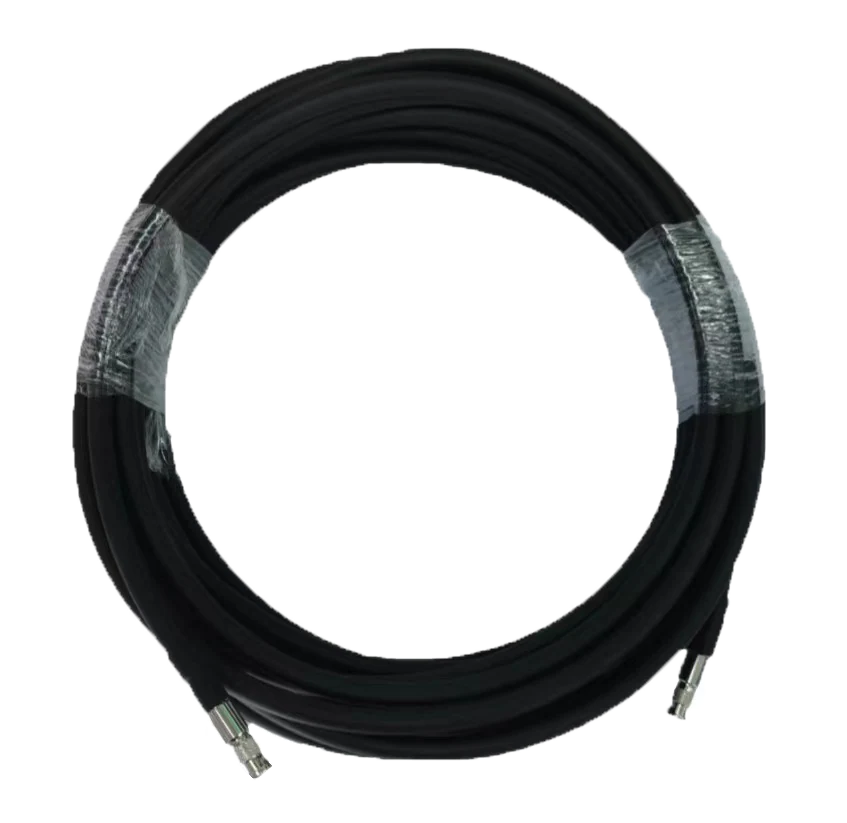

Camera Data Cable, HD-BNC to HD-BNC, 4 m (LS-CBL-0177)
Model LS-CBL-0177
- Length4 m
- End AHD-BNC
- End BHD-BNC
- Diameter5.0mm
- Max. voltage300 VDC
- JacketPVC
$209.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, HD-BNC to HD-BNC, 4 m. CXP-12 high-flex cable for data transmission with CoaXPress cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0177 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | HD-BNC |
|---|---|
| End B connector | HD-BNC |
| Cable diameter | 5.0mm |
| Cable mechanical | Coaxial |
| Cable color | Black |
| Connector durability | 500 cycles |
| Applicable scenario | Drag chain |
Environment and compliance
| Working temperature | -30°C-80°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 300 VDC |
|---|
Mechanical
| Length | 4 m |
|---|---|
| Min. bending radius | 60mm |
| Max. U-type bending cycles | 2 million times |
| Shipping weight (estimated) | 0.31 kg |
