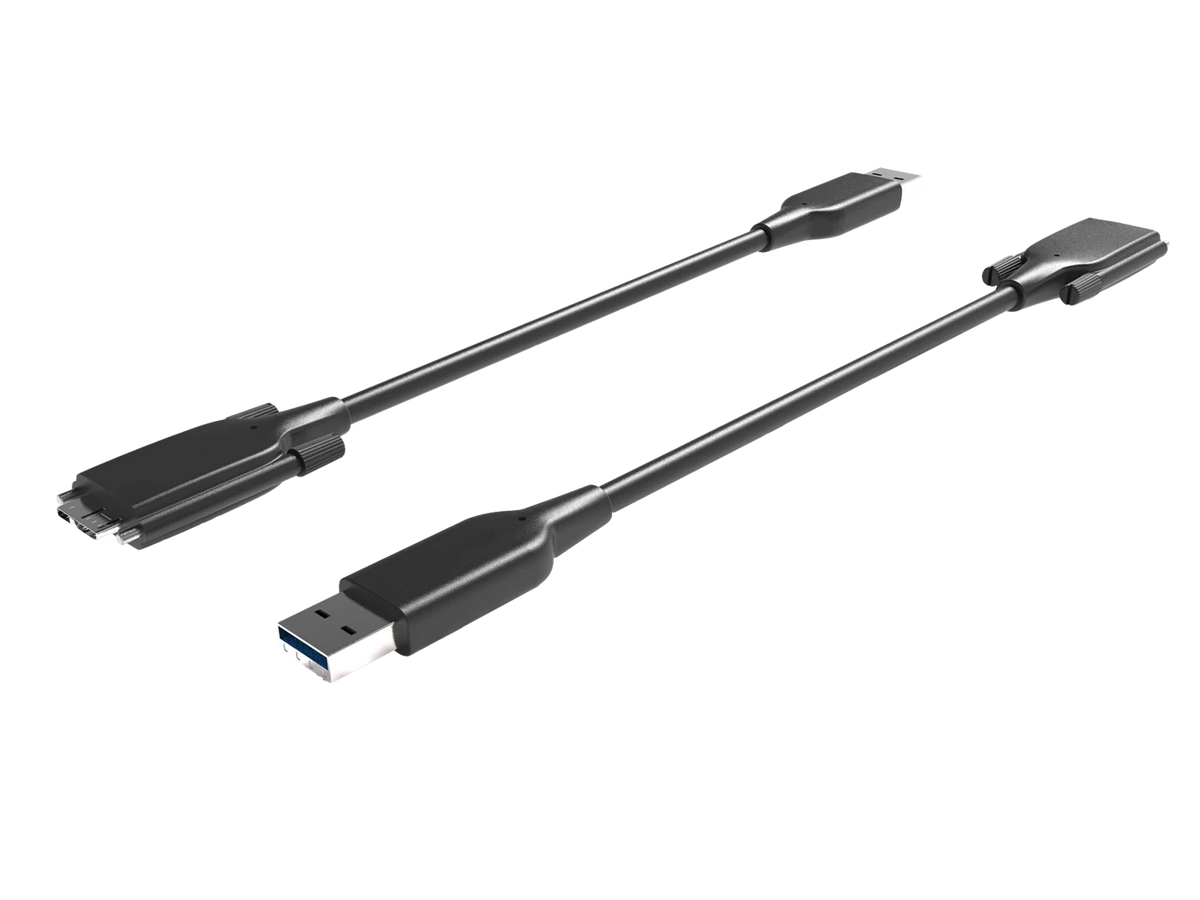

Camera Data Cable, Micro-B male (with screw) to A male, 20 m (LS-CBL-0140)
Model LS-CBL-0140
- Length20 m
- End AMicro-B male (with screw)
- End BA male
- Diameter4.8 mm
- Max. voltage5 VDC
- JacketNitrile PVC
$99.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, Micro-B male (with screw) to A male, 20 m. The USB3.0 Super Flex Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0140 |
|---|---|
| Jacket | Nitrile PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Micro-B male (with screw) |
|---|---|
| End B connector | A male |
| Cable diameter | 4.8 mm |
| Cable mechanical | (1P*26#+ADBMP)2C+1P*26#+1P*24#+FPB |
| Cable color | Black |
| Connector durability | 5, 000 cycles |
| Applicable scenario | Static scenes/tank chain |
Environment and compliance
| Working temperature | -20°C~ 80°C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 5 VDC |
|---|
Mechanical
| Length | 20 m |
|---|---|
| Min. bending radius | 57.6 mm |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
