Cables
Camera Data Cable, Mini-FAKRA, Z-code to Mini-FAKRA, Z-code, 15 m (LS-CBL-0035)
Model LS-CBL-0035
- Length15 m
- End AMini-FAKRA, Z-code
- End BMini-FAKRA, Z-code
- Diameter3.3 ± 0.2 mm
- Max. voltage60 VDC
- JacketPVC
$89.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

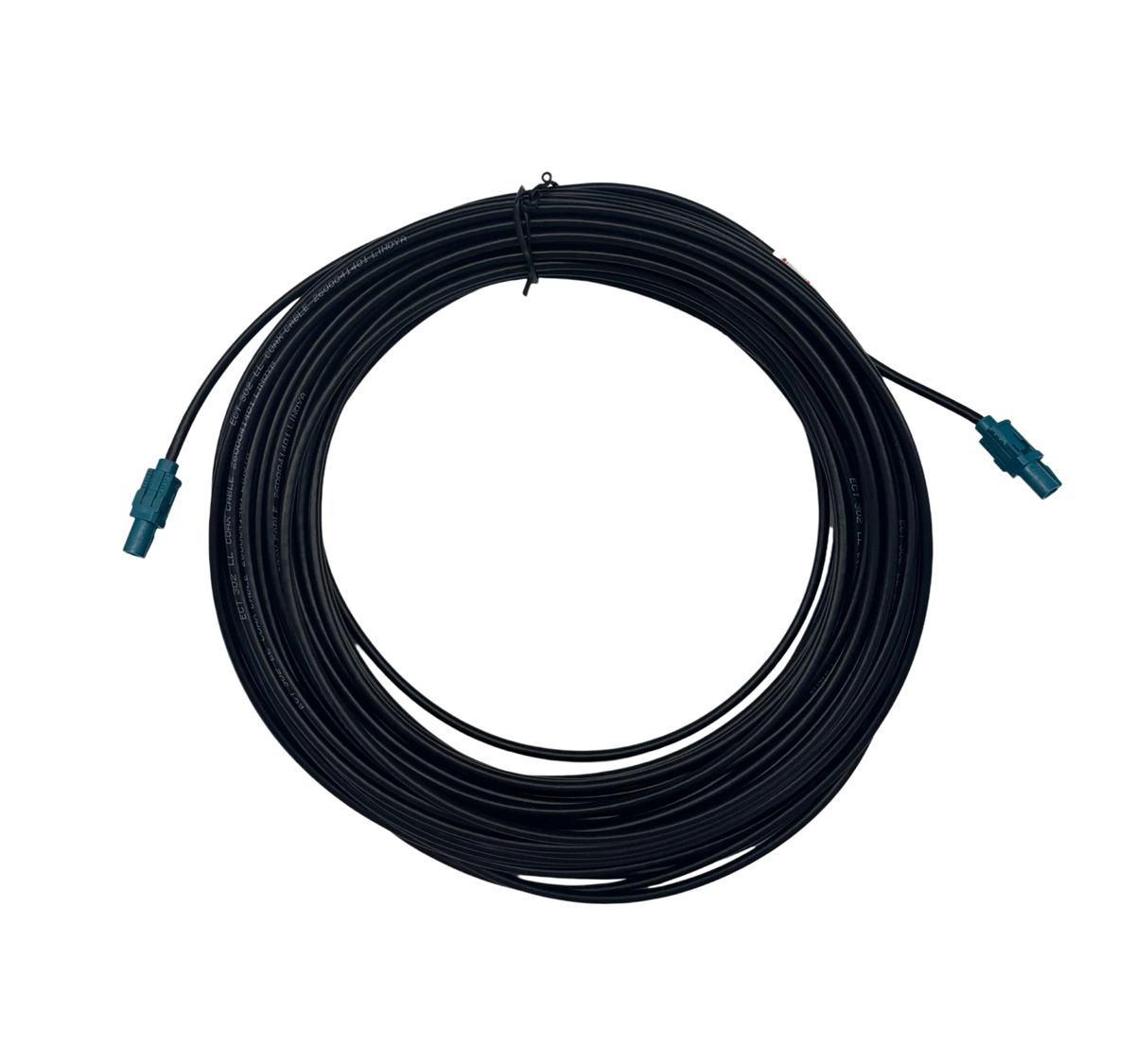

Camera Data Cable, Mini-FAKRA, Z-code to Mini-FAKRA, Z-code, 15 m. The Mini-FAKRA Standard Coaxial Data Cable can be used for data transmission of XoCLink Area Scan Cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0035 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Mini-FAKRA, Z-code |
|---|---|
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 3.3 ± 0.2 mm |
| Cable mechanical | Coaxial |
| Cable color | Black |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 60 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 39.6 mm |
| Shipping weight (estimated) | 0.31 kg |
