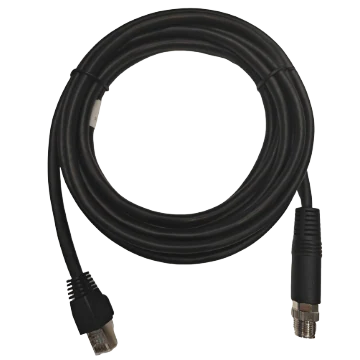

Camera Data Cable, M12 8-pin connector, Male to RJ45, 15 m, drag-chain use (LS-CBL-0071)
Model LS-CBL-0071
- Length15 m
- End AM12 8-pin connector, Male
- End BRJ45
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$69.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, M12 8-pin connector, Male to RJ45, 15 m. M12 8-pin X-coded waterproof high-flex aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0071 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 8-pin connector, Male |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Cable mechanical | 26#*4P+AB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static/drag-chain, Waterproof |
Environment and compliance
| Ingress protection | IP67 (with camera mounted) |
|---|---|
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 78 mm |
| Max. U-type bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
