Cables

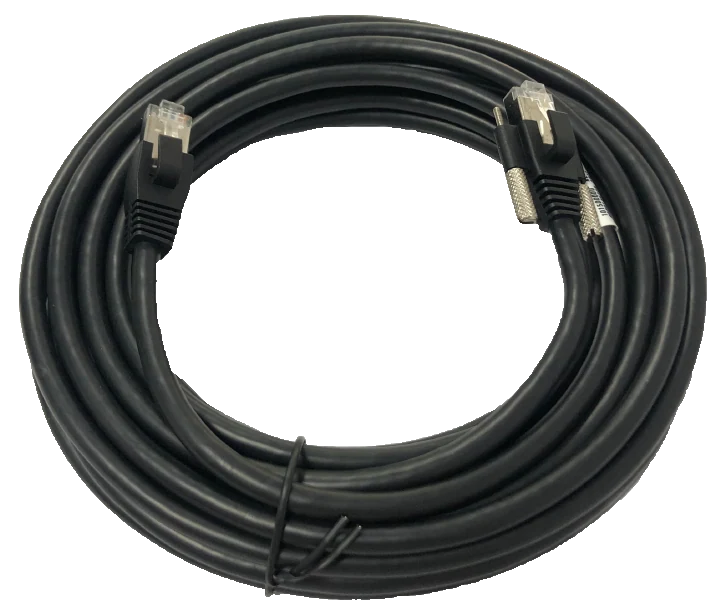

Camera Data Cable, RJ45 (with locking stud) to RJ45, 15 m, drag-chain and robot-arm use (LS-CBL-0106)
Model LS-CBL-0106
- Length15 m
- End ARJ45 (with locking stud)
- End BRJ45
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$69.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, RJ45 (with locking stud) to RJ45, 15 m. The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0106 |
|---|---|
| Jacket | PVC |
| Max. ±180° torsional cycles | 3 million times |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | RJ45 (with locking stud) |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Cable mechanical | 4P*26#+AB |
| Cable color | Black |
| Connector durability | ≥750 cycles |
| Applicable scenario | Tank chain, Robot arm |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 78 mm |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
