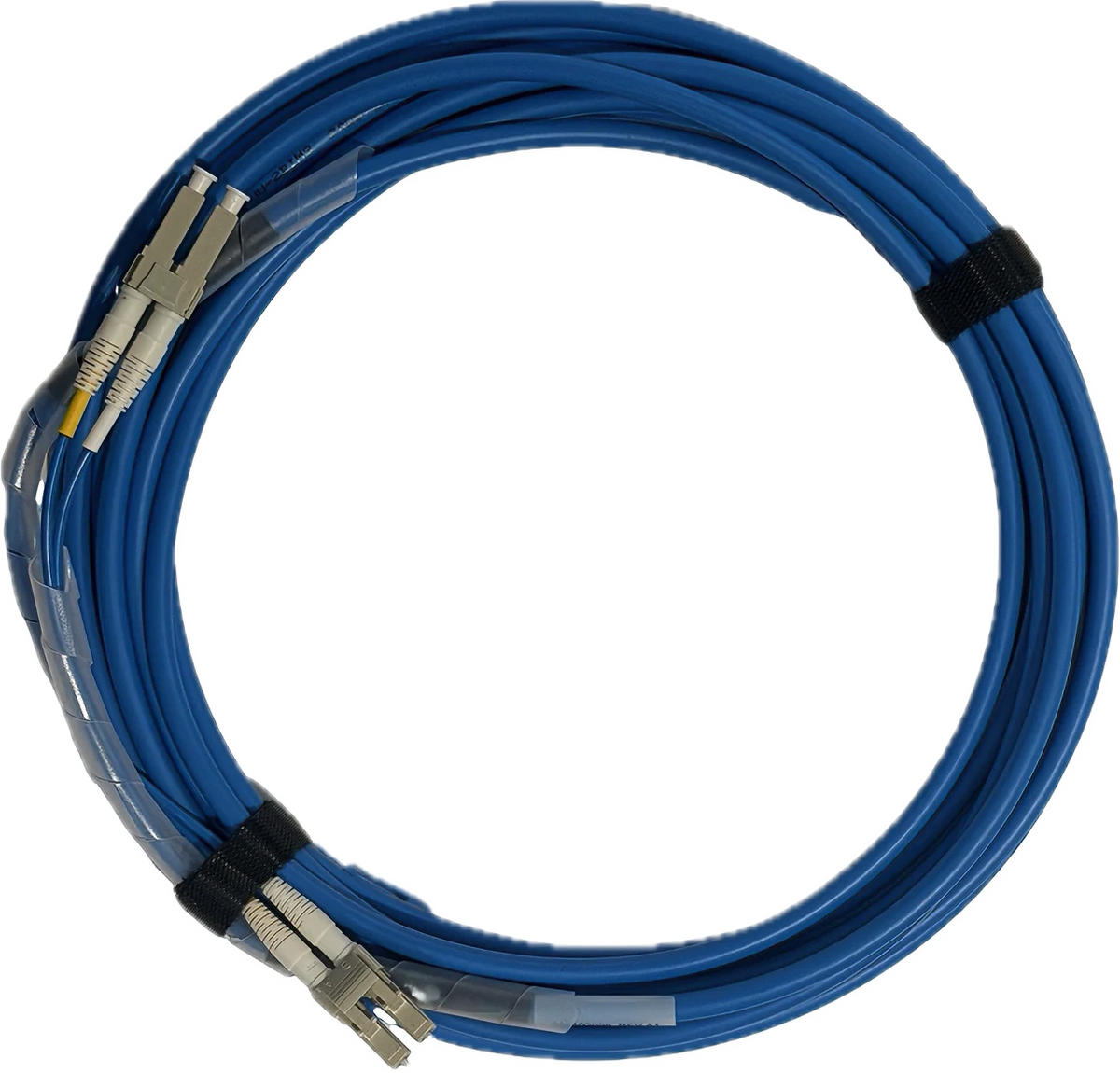

Camera Data Cable, LC (2-core) to LC (2-core), 10 m, drag-chain use (LS-CBL-0004)
  • Camera Data Cable, LC (2-core) to LC (2-core), 10 m, drag-chain use (LS-CBL-0004)

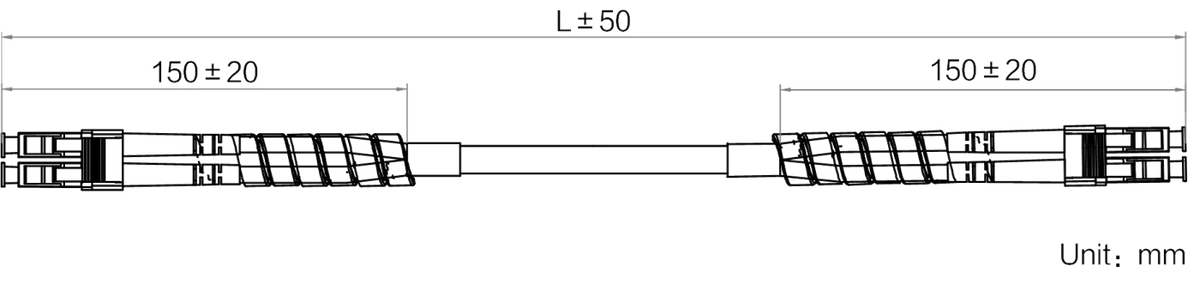

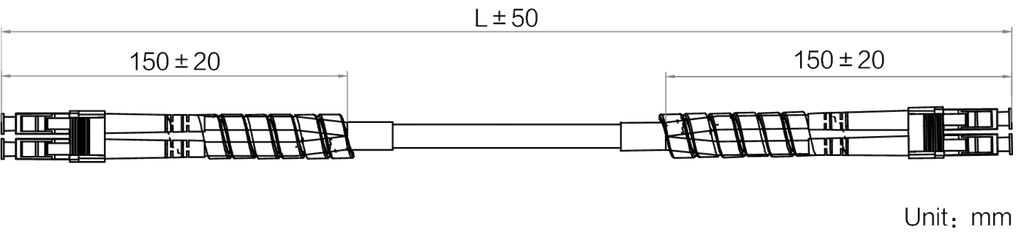

  • LS-CBL-0004 dimensions (mm)

Cables

Camera Data Cable, LC (2-core) to LC (2-core), 10 m, drag-chain use (LS-CBL-0004)

Model LS-CBL-0004

  • Length10 m
  • End ALC (2-core)
  • End BLC (2-core)
  • Diameter5 mm
$79.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Camera Data Cable, LC (2-core) to LC (2-core), 10 m, drag-chain use (LS-CBL-0004)LS-CBL-0004

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Camera Data Cable, LC (2-core) to LC (2-core), 10 m. High-flex 10GigE fiber patch cable, 850 nm center wavelength, multimode 50/125 μm, for 10GigE fiber data transmission in motion applications

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CBL-0004
Fiber typeMultimode 50 μm/125 μm
Insertion loss≤0.30 dB
Return loss≥36 dB
PackagingIndividual package

Interfaces and I/O

End A connectorLC (2-core)
End B connectorLC (2-core)
Cable diameter5 mm
Cable colorBlue
Connector durability200 mating cycles
Applicable scenarioDrag chain

Light

Central wavelength850 nm

Environment and compliance

Working temperature-20°C ~ 75°C
CertificationRoHS

Mechanical

Length10 m
Min. bending radius60 mm
Max. U-type bending cycles5 million times
Shipping weight (estimated)0.31 kg
