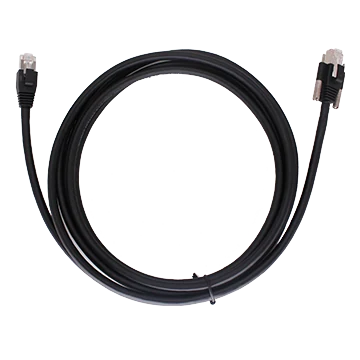

Camera Data Cable, RJ45 (with locking stud) to RJ45, 10 m, drag-chain use, 7.0 mm cable (LS-CBL-0021)
Model LS-CBL-0021
- Length10 m
- End ARJ45 (with locking stud)
- End BRJ45
- Diameter7.0 mm
- Max. voltage30 VDC
- JacketPVC
$79.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, RJ45 (with locking stud) to RJ45, 10 m. RJ45 high-flex 10 GigE cable can be used for data transmission of 10 GigE interface cameras, and it is available in various lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0021 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | RJ45 (with locking stud) |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 7.0 mm |
| Cable mechanical | (26#*1P+AL)*4C+AB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Drag chains |
Environment and compliance
| Working temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 10 m |
|---|---|
| Min. bending radius | 84 mm |
| Max. U-type bending cycles | 5 million |
| Shipping weight (estimated) | 0.31 kg |
