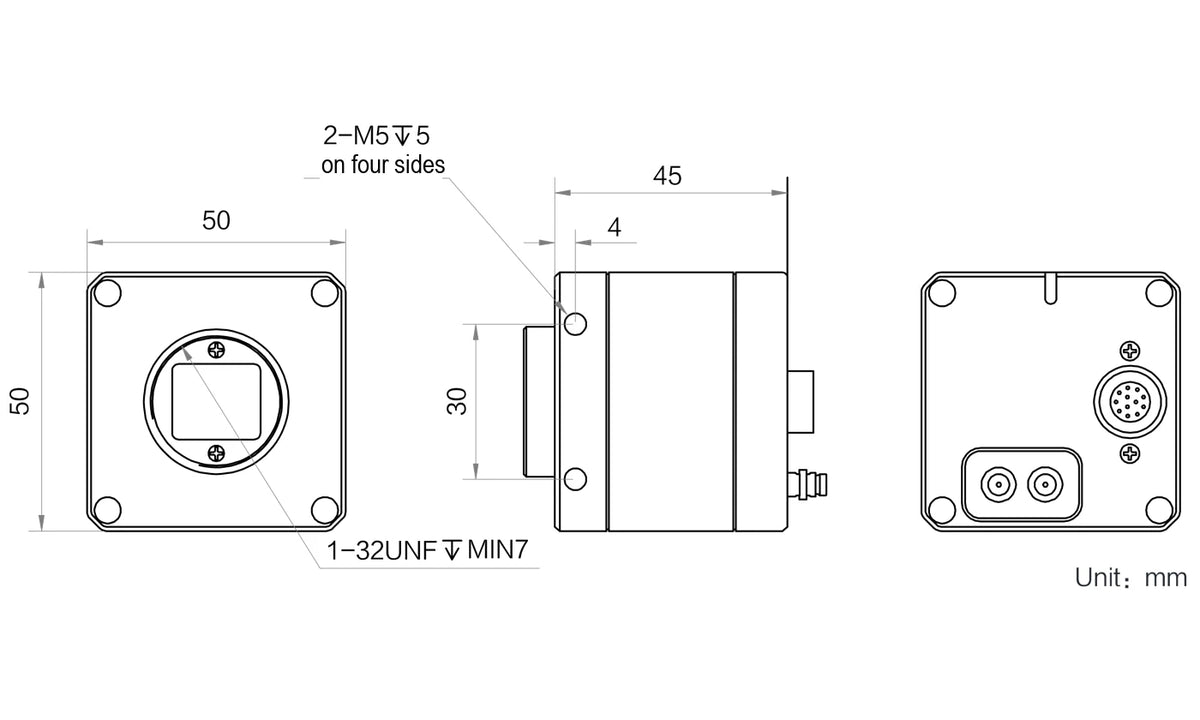

  • MV-CH250-90XN-C-NN dimensions (mm)

Area scan cameras

Hikrobot MV-CH250-90XN-C-NN 25 MP CXP-6 area scan camera, GMAX0505, NIR-enhanced, Type-C port, Fanless

Model MV-CH250-90XN-C-NNHikrobot

  • Resolution5120 × 5120
  • SensorCMOS, global shutter
  • InterfaceCoaXPress with DIN interface
  • Speed41.5 fps @ 5120 × 5120 Mono 8
  • Lens mountC-mount
  • Mono / colourNear-infrared
$10,979.00
List price

Ships in 2-3 weeks

0.39 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CH250-90XN-C-NN: resolution 5120 x 5120; sensor type CMOS, global shutter; sensor size 1.1''; max. frame rate 41.5 fps @ 5120 x 5120 Mono 8.

Hikrobot MV-CH250-90XN-C-NN 25 MP CXP-6 area scan camera, GMAX0505, NIR-enhanced, Type-C port, Fanless. Resolution 5120 × 5120, pixel size 2.5 µm Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH250-90XN-C-NN
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1''
Resolution5120 × 5120
Max. frame rate41.5 fps @ 5120 × 5120 Mono 8
Dynamic range65 dB
SNR41 dB
Gain2.0x ~ 5.0x
Exposure time13 μs ~ 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorNear-infrared
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows XP/7/10/11 32/64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, CXP-1 supports PoCXP
Power consumption7.0 W @ 12 VDC

Mechanical

Lens mountC-Mount
Dimension50 mm × 50 mm × 45 mm
WeightApprox. 207 g (0.5 lb.)
Shipping weight (estimated)0.39 kg

Engineering data

Field of view and resolution with the MV-CH250-90XN-C-NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area12.8 × 12.8 mm1.1" optical format
Lens image circle needed≥ Ø 18.1 mmC-mount
Pixel pitch2.5 µm5120 x 5120 px
Image data at max frame rate1088 MB/sCalculated: 41.5 fps × 5120 × 5120 px at 8 bit
With a 16 mm lens at 500 mm400 × 400 mm0.078 mm per pixel
Dynamic range65 dB
SNR41 dB
Power consumption7.0 Wat 12 V DC
ShutterGlobal
Exposure range13 µs to 10 s
Weight207 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm480 × 480 mm0.094 mm per pixel800 × 800 mm0.156 mm per pixel1600 × 1600 mm0.312 mm per pixel
12 mm320 × 320 mm0.062 mm per pixel533 × 533 mm0.104 mm per pixel1067 × 1067 mm0.208 mm per pixel
16 mm240 × 240 mm0.047 mm per pixel400 × 400 mm0.078 mm per pixel800 × 800 mm0.156 mm per pixel
25 mm154 × 154 mm0.03 mm per pixel256 × 256 mm0.05 mm per pixel512 × 512 mm0.1 mm per pixel
35 mm110 × 110 mm0.021 mm per pixel183 × 183 mm0.036 mm per pixel366 × 366 mm0.071 mm per pixel
50 mm76.8 × 76.8 mm0.015 mm per pixel128 × 128 mm0.025 mm per pixel256 × 256 mm0.05 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
