Machine vision lenses

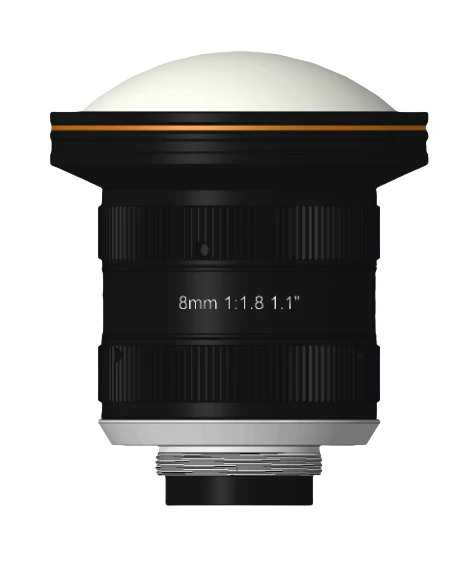

8mm, F1.8, 1.1”, 20 MP, C-mount lens (LS-FFL-1403)

Model LS-FFL-1403

Focal length8 mm
MountC-mount
Sensor1.1"
ApertureF1.8 ~ F16

$239.00

Ships in 2-3 weeks

0.41 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

8mm, F1.8, 1.1”, 20 MP, C-mount lens. High resolving power with sharp images 1.1" format, large F1.8 aperture design

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1403
Minimum object distance	0.1 m

Optics

Focal length	8 mm
F-number	F1.8 ~ F16
Image size	Φ17.6 mm(1.1'')
Distortion	-2.26%
Field of view	D(17.52mm):95.23°; H(14.14mm):82.88°; V(10.35mm):65.22°
Iris control	Manual
Focus control	Manual
Filter thread	External filter adapter attachable (M85 x P0.75)

Interfaces and I/O

Connector type	C-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

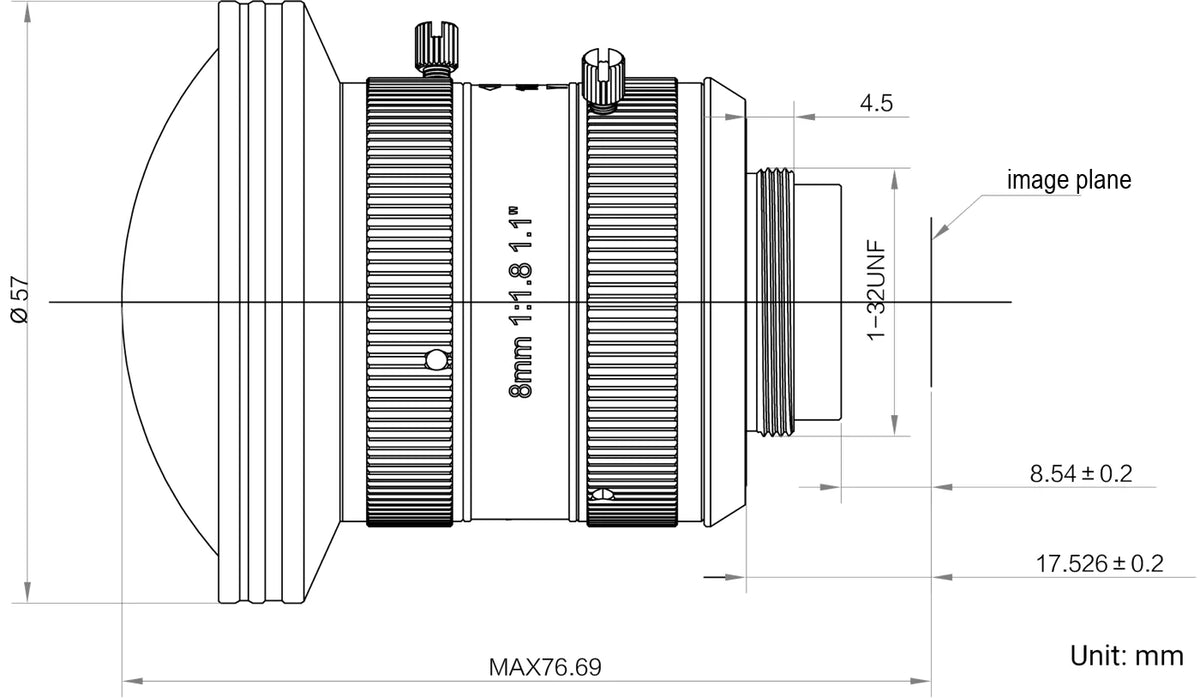

Mechanical

Flange back length	17.526 mm
Dimension	Φ57 × 58.2 ~ 59.2 mm
Weight	220 g
Shipping weight (estimated)	0.41 kg
