Machine vision lenses

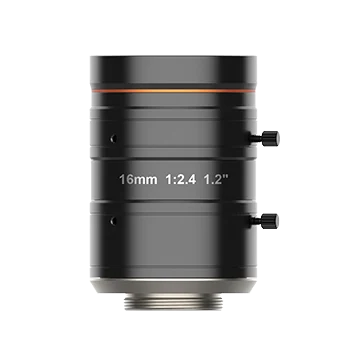

Fixed focal length, Fixed iris, 25 MP, FA lens, 16 mm (LS-FFL-1410)

Model LS-FFL-1410

Focal length16 mm
MountC-mount
Sensor1.2"
ApertureF4.0

$239.00

Ships in 2-3 weeks

0.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Fixed focal length, Fixed iris, 25 MP, FA lens. Ultra-high resolution with highly uniform image sharpness 1.2" large format, large aperture, low distortion, high relative illumination

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1410
Minimum object distance	0.08 m

Optics

Focal length	16 mm
F-number	F4.0
Image size	Φ19.3 mm(1.2")
Distortion	0.04%
Field of view	D (19.3 mm): 61.7°; H (14.6 mm): 48.77°; V (12.63 mm): 42.83°
Iris control	Fixed
Focus control	Manual
Filter thread	M40.5×0.5

Interfaces and I/O

Connector type	C-Mount

Environment and compliance

Temperature	-10 ~ 50°C
Certification	RoHS2.0

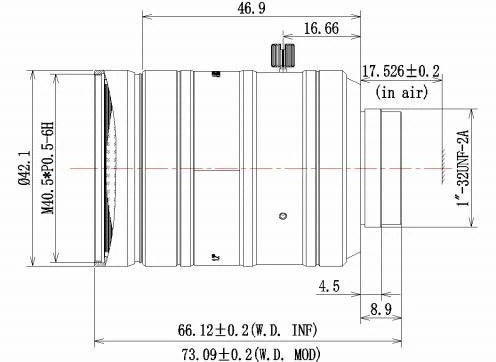

Mechanical

Flange back length	17.526 mm
Dimension	Φ42.1 × 57.22~64.19 mm
Weight	185 g
Shipping weight (estimated)	0.36 kg

Other models in the LS-FFL-S124 series lenses series

See all 8 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1405	16 mm · C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-1406	25 mm · C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-1407	35 mm · C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-1408	50 mm · C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-1409	12 mm · C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-1403	8 mm · C-mount	$239.00	Ships in 2-3 weeks	View
LS-FFL-1404	12 mm · C-mount	$279.00	Ships in 2-3 weeks	View
