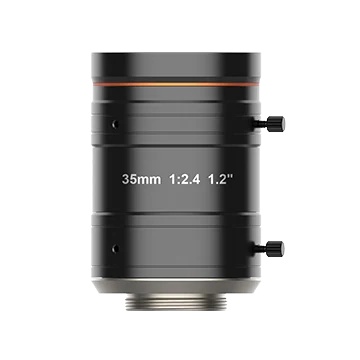

35mm, F2.4, 1.2", 25MP Lens, C-Mount (LS-KF3524M-25MP)

Machine vision lenses

35mm, F2.4, 1.2", 25MP Lens, C-Mount (LS-FFL-1407)

Model LS-FFL-1407

Focal length35 mm
MountC-mount
Sensor1.2"
ApertureF2.4 to F16

$239.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.33 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

35mm, F2.4, 1.2", 25MP Lens, C-Mount. Ultra high resolution and consistency of image clarity 1.2" image circle, bigger aperture, lower distortion, higher illumination relative

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1407
Minimum object distance	0.15 m
Close-up with extension tube	10 mm tube, near focus: WD 66.48 mm, magnification -0.523; 10 mm tube, far focus: WD 104.56 mm, magnification -0.326; 5 mm tube, near focus: WD 91.94 mm, magnification -0.376; 5 mm tube, far focus: WD 187.59 mm, magnification -0.185; 2 mm tube, near focus: WD 119.67 mm, magnification -0.288; 2 mm tube, far focus: WD 349.21 mm, magnification -0.100; 1 mm tube, near focus: WD 133.10 mm, magnification -0.259; 1 mm tube, far focus: WD 487.04 mm, magnification -0.072

Optics

Field of view	D (19.30 mm): 29.48°; H (14.60 mm): 22.51°; V (12.63 mm): 19.54°
Focal length	35 mm
F-number	F2.4 to F16
Image size	Ø19.3 mm (1.2'')
Distortion	0.02%
Iris control	Manual
Focus control	Manual
Filter thread	M40.5 × 0.5
Magnification at working distance (mm)	150: -0.229; 200: -0.172; 250: -0.138; 300: -0.116; 350: -0.099; 400: -0.087; 450: -0.078; 500: -0.070; 550: -0.064; 600: -0.059; 650: -0.054; 700: -0.050; 800: -0.044; 900: -0.039; 1000: -0.035
Field of view H x V (mm) at working distance (mm), 1.2" sensor (14.6 x 12.63 mm)	150: 63.78 x 55.15; 200: 84.82 x 73.36; 250: 105.58 x 91.33; 300: 126.19 x 109.17; 350: 146.72 x 126.93; 400: 167.20 x 144.65; 450: 187.64 x 162.34; 500: 208.05 x 180.00; 550: 228.44 x 197.65; 600: 248.82 x 215.28; 650: 269.19 x 232.90; 700: 289.54 x 250.52; 800: 330.24 x 285.73; 900: 370.92 x 320.93; 1000: 411.58 x 356.12
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	150: 61.76 x 45.18; 200: 82.15 x 60.11; 250: 102.25 x 74.84; 300: 122.22 x 89.46; 350: 142.10 x 104.02; 400: 161.93 x 118.55; 450: 181.73 x 133.05; 500: 201.50 x 147.53; 550: 221.25 x 161.99; 600: 240.99 x 176.45; 650: 260.72 x 190.89; 700: 280.43 x 205.34; 800: 319.85 x 234.20; 900: 359.25 x 263.05; 1000: 398.63 x 291.90
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	150: 36.87 x 30.85; 200: 49.07 x 41.05; 250: 61.09 x 51.11; 300: 73.04 x 61.11; 350: 84.93 x 71.06; 400: 96.79 x 80.99; 450: 108.63 x 90.89; 500: 120.46 x 100.79; 550: 132.27 x 110.68; 600: 144.07 x 120.55; 650: 155.87 x 130.43; 700: 167.66 x 140.29; 800: 191.24 x 160.02; 900: 214.80 x 179.74; 1000: 238.35 x 199.45

Environment and compliance

Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Dimension	Ø42 mm × 59.3 mm (Ø1.65'' × 2.33'')
Weight	163 g (0.359 lb.)
Mount	C-mount
Flange back length	17.526 mm
Shipping weight (estimated)	0.33 kg

Downloads

Features

Ultra high resolution and consistency of image clarity
1.2" image circle, bigger aperture, lower distortion, higher illumination relative
Achromatic optical system design, better imaging performance with color camerab
Maintain excellent optical properties at different object distances
Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
Multilayer and broadband coating design, compatible with visible and near infrared applications
