Machine vision lenses

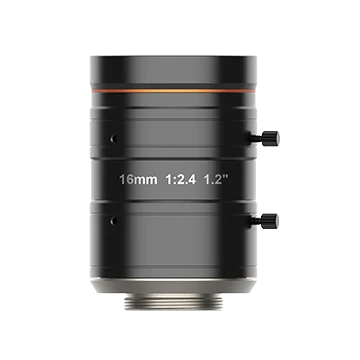

16mm, F2.4, 1.2", 25MP Lens, C-Mount (LS-FFL-1405)
Model LS-FFL-1405
- Focal length16 mm
- MountC-mount
- Sensor1.2"
- ApertureF2.4 to F16
$239.00
Ships in 2-3 weeks
0.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16mm, F2.4, 1.2", 25MP Lens, C-Mount. Ultra high resolution and consistency of image clarity 1.2" image circle, bigger aperture, lower distortion, higher illumination relative
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1405 |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 1 mm tube, near focus: WD 64.71 mm, magnification -0.199; 1 mm tube, far focus: WD 165.05 mm, magnification -0.087 |
Optics
| Focal length | 16 mm |
|---|---|
| F-number | F2.4 to F16 |
| Image size | Ø19.3 mm (1.2'') |
| Distortion | 0.07% |
| Field of view | D (19.30mm): 61.61°; H (14.60mm): 48.82°; V (12.63mm): 42.89° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M40.5 × 0.5 |
| Magnification at working distance (mm) | 100: -0.139; 150: -0.096; 200: -0.074; 250: -0.060; 300: -0.050; 350: -0.043; 400: -0.038; 450: -0.034; 500: -0.031; 550: -0.028; 600: -0.026; 650: -0.024; 700: -0.022; 800: -0.019; 900: -0.017; 1000: -0.016 |
| Field of view H x V (mm) at working distance (mm), 1.2" sensor (14.6 x 12.63 mm) | 100: 106.05 x 91.65; 150: 152.80 x 132.06; 200: 199.38 x 172.33; 250: 245.89 x 212.54; 300: 292.37 x 252.72; 350: 338.83 x 292.87; 400: 385.27 x 333.02; 450: 431.71 x 373.16; 500: 478.14 x 413.29; 550: 524.56 x 453.42; 600: 570.99 x 493.54; 650: 617.40 x 533.67; 700: 663.82 x 573.79; 800: 756.65 x 654.03; 900: 849.48 x 734.26; 1000: 942.30 x 814.49 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm) | 100: 102.69 x 74.97; 150: 147.96 x 108.05; 200: 193.07 x 141.01; 250: 238.12 x 173.91; 300: 283.12 x 206.78; 350: 328.11 x 239.64; 400: 373.09 x 272.49; 450: 418.05 x 305.34; 500: 463.02 x 338.18; 550: 507.97 x 371.01; 600: 552.92 x 403.84; 650: 597.87 x 436.68; 700: 642.82 x 469.50; 800: 732.72 x 535.16; 900: 822.61 x 600.81; 1000: 912.49 x 666.46 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 100: 61.11 x 51.08; 150: 88.08 x 73.62; 200: 114.95 x 96.08; 250: 141.78 x 118.50; 300: 168.58 x 140.91; 350: 195.37 x 163.30; 400: 222.16 x 185.69; 450: 248.93 x 208.07; 500: 275.71 x 230.45; 550: 302.48 x 252.83; 600: 329.25 x 275.20; 650: 356.01 x 297.58; 700: 382.78 x 319.95; 800: 436.31 x 364.69; 900: 489.83 x 409.43; 1000: 543.36 x 454.17 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø42.5 mm× 59.8 mm (Ø1.67'' × 2.35'') |
| Weight | 186 g (0.41 lb.) |
| Shipping weight (estimated) | 0.36 kg |
