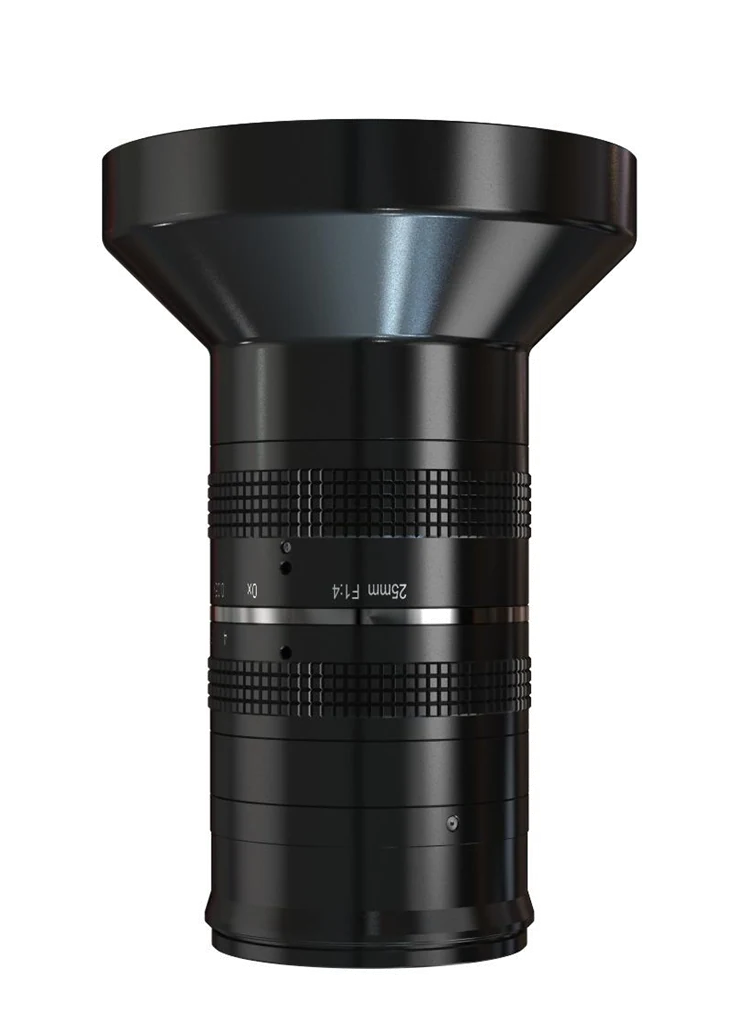

25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-FFL-1425)
  • 25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-FFL-1425)

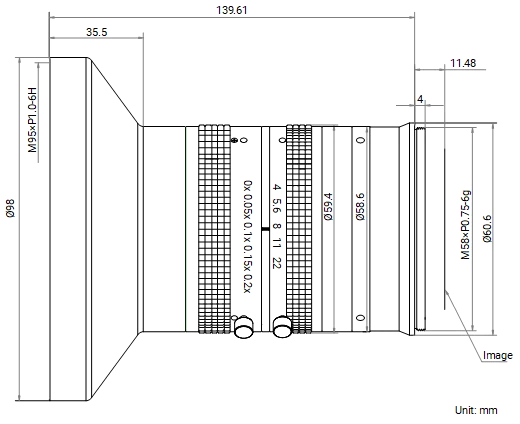

  • LS-FFL-1425 dimensions (mm)

Machine vision lenses

25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-FFL-1425)

Model LS-FFL-1425

  • Focal length25 mm
  • Magnification0.001 x to 0.2 x
  • MountM58
  • SensorFull frame
  • Working distance100mm to inf mm (tolerance: ± 5 mm)
  • ApertureF4.0 to F22
$209.00

Ships in 2-3 weeks

1.64 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-FFL-1425)LS-FFL-1425

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount. Adopts high-precision lens for 65MP area scan cameras. Provides excellent consistency of image clarity and low distortion.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1425

Optics

Focal length25 mm
F-numberF4.0 to F22
Image sizeØ46 mm
Optical distortion0.9%
Magnification range0.001 x to 0.2 x
Working distance range100mm to inf mm (tolerance: ± 5 mm)
Iris controlManual
Focus controlManual
Filter threadM95 × P1.0
Magnification at working distance (mm)100: 0.196; 150: 0.141; 200: 0.110; 250: 0.091; 300: 0.077; 350: 0.067; 400: 0.059; 450: 0.053; 500: 0.048; 550: 0.044; 600: 0.040; 650: 0.037; 700: 0.035; 750: 0.033; 800: 0.0307; 850: 0.029; 900: 0.027; 950: 0.026; 1000: 0.025; 1100: 0.023; 1200: 0.021; 1300: 0.019; 1400: 0.018; 1500: 0.017
Object-to-image distance at working distance (mm)100: 249.27; 150: 299.27; 200: 349.27; 250: 399.29; 300: 449.27; 350: 499.29; 400: 579.27; 450: 599.29; 500: 649.27; 550: 699.29; 600: 749.28; 650: 799.29; 700: 849.28; 750: 899.29; 800: 949.28; 850: 999.28; 900: 1049.29; 950: 1099.29; 1000: 1149.29; 1100: 1249.29; 1200: 1349.29; 1300: 1449.29; 1400: 1549.29; 1500: 1649.28
Field of view H x V (mm) at working distance (mm), sensor 29.9 x 22.4 mm100: 152.6 x 124.5; 150: 212.1 x 173.0; 200: 271.8 x 221.8; 250: 328.9 x 268.4; 300: 388.3 x 316.9; 350: 446.3 x 364.2; 400: 506.8 x 413.6; 450: 564.2 x 460.4; 500: 622.9 x 508.3; 550: 681.1 x 555.8; 600: 740.1 x 604.0; 650: 799.5 x 652.4; 700: 856.7 x 699.1; 750: 917.2 x 748.5; 800: 973.9 x 794.8; 850: 1032.5 x 842.5; 900: 1091.2 x 890.5; 950: 1150.0 x 938.5; 1000: 1210.5 x 987.9; 1100: 1325.9 x 1082.0; 1200: 1444.4 x 1178.7; 1300: 1565.4 x 1277.5; 1400: 1677.9 x 1369.2; 1500: 1794.7 x 1464.6

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountM58 × P0.75
Flange back length11.48 mm
DimensionØ98 × 139.6 mm (Ø3.9" × 5.5")
Weight1.1kg
Shipping weight (estimated)1.64 kg
