Machine vision lenses

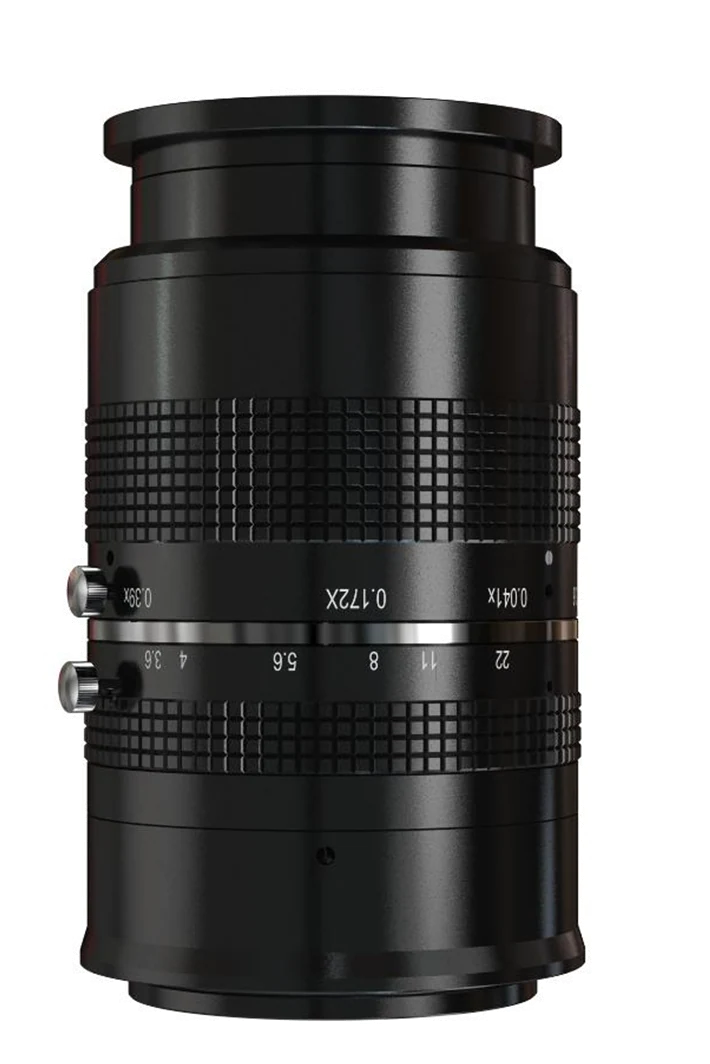

80mm, F3.6, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-FFL-1428)
Model LS-FFL-1428
- Focal length80 mm
- Magnification0.041x to 0.39x
- MountM58
- SensorFull frame
- Working distance235 mm to 2000 mm (tolerance: ±5 mm)
- ApertureF3.6 to F22
$969.00
Ships in 2-3 weeks
1.26 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
80mm, F3.6, Full Frame φ46mm, 65MP Lens, M58-Mount. Adopts high-precision lens for 65MP area scan cameras. Provides excellent consistency of image clarity and low distortion.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1428 |
|---|
Optics
| Focal length | 80 mm |
|---|---|
| F-number | F3.6 to F22 |
| Image size | Ø46 mm |
| Optical distortion | 0.05% |
| Magnification range | 0.041x to 0.39x |
| Working distance range | 235 mm to 2000 mm (tolerance: ±5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M62 × P0.75 |
| Magnification at working distance (mm) | 235: 0.392; 250: 0.365; 300: 0.298; 350: 0.252; 400: 0.218; 450: 0.192; 500: 0.172; 550: 0.155; 600: 0.142; 650: 0.131; 700: 0.121; 750: 0.113; 800: 0.105; 850: 0.099; 900: 0.093; 950: 0.088; 1000: 0.084; 1100: 0.076; 1200: 0.069; 1300: 0.064; 1400: 0.059; 1500: 0.055 |
| Object-to-image distance at working distance (mm) | 235: 376.50; 250: 389.30; 300: 434.30; 350: 480.60; 400: 528.10; 450: 576.10; 500: 624.60; 550: 673.30; 600: 722.30; 650: 771.30; 700: 820.60; 750: 870.00; 800: 919.40; 850: 968.90; 900: 1018.50; 950: 1068.00; 1000: 1117.73; 1100: 1217.10; 1200: 1316.60; 1300: 1416.20; 1400: 1515.80; 1500: 1615.50 |
| Field of view H x V (mm) at working distance (mm), sensor 29.9 x 22.4 mm | 235: 76.3 x 57.1; 250: 81.9 x 61.3; 300: 100.3 x 75.1; 350: 118.8 x 89.0; 400: 137.1 x 102.7; 450: 155.6 x 116.6; 500: 173.9 x 130.3; 550: 192.3 x 144.1; 600: 210.6 x 157.8; 650: 229.0 x 171.6; 700: 247.2 x 185.2; 750: 265.7 x 199.0; 800: 283.9 x 212.7; 850: 302.3 x 226.5; 900: 320.5 x 240.1; 950: 338.9 x 253.9; 1000: 357.2 x 267.6; 1100: 393.8 x 295.0; 1200: 430.4 x 322.5; 1300: 467.0 x 349.9; 1400: 503.6 x 377.3; 1500: 540.2 x 404.7 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | M58 × P0.75 |
|---|---|
| Flange back length | 11.48 mm |

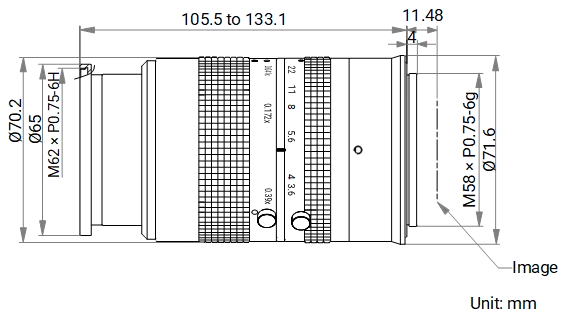

| Dimension | Ø71.6 mm × 105.5 mm to 133.1 mm (Ø2.8" × 4.2" to 5.2") |
| Weight | 827.1 g (1.8 lb.) |
| Shipping weight (estimated) | 1.26 kg |
Other models in the LS-FFL-S128 series lenses series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1425 | 25 mm · 0.001 x to 0.2 x | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-1426 | 35 mm · 0.001 x to 0.2 x | $229.00 | Ships in 2-3 weeks | View |
| LS-FFL-1427 | 50 mm · 0.02x to 0.5x | $419.00 | Ships in 2-3 weeks | View |
