Machine vision lenses

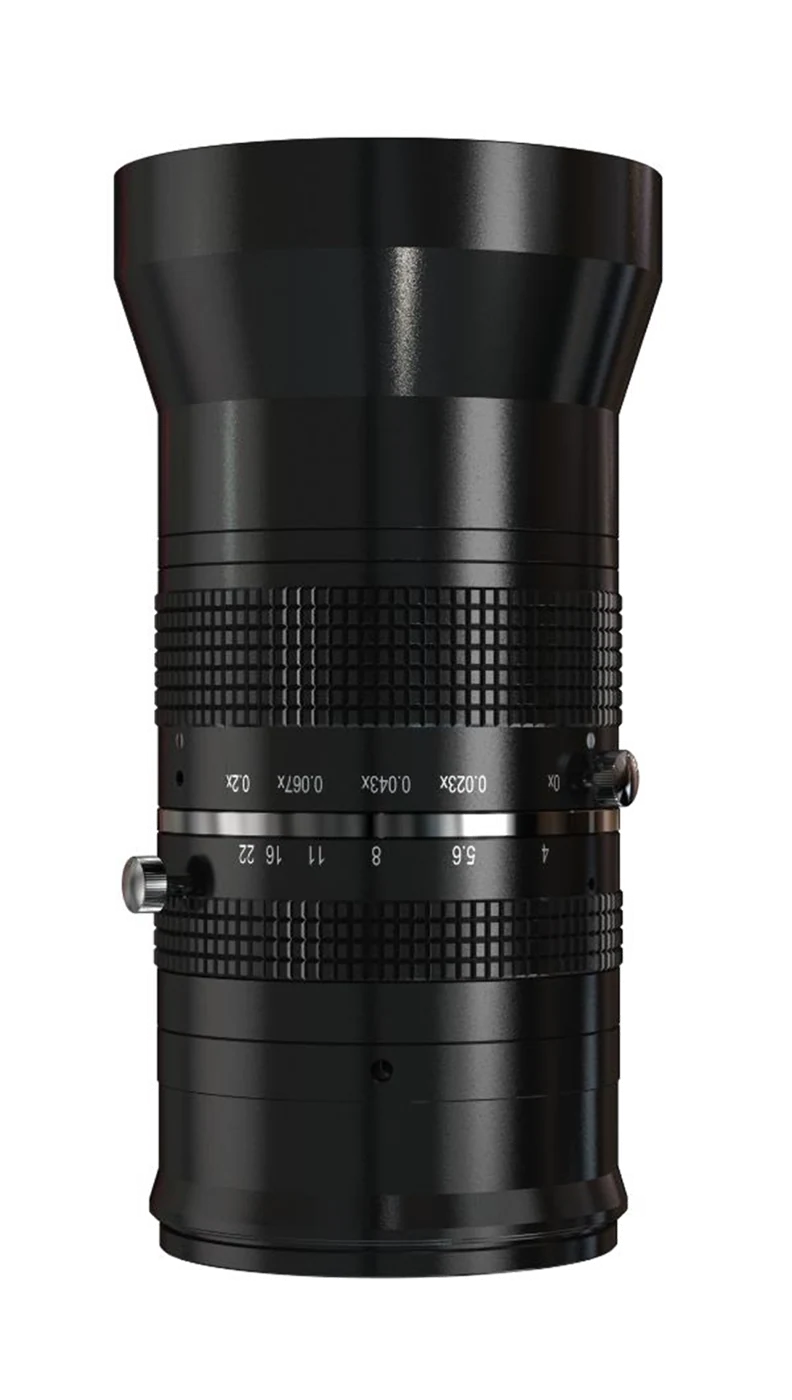

35mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-FFL-1426)
Model LS-FFL-1426
- Focal length35 mm
- Magnification0.001 x to 0.2 x
- MountM58
- SensorFull frame
- Working distance150 mm to inf mm (tolerance: ± 5 mm)
- ApertureF4.0 to F22
$229.00
Ships in 2-3 weeks
1.17 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount. Adopts high-precision lens for 65MP area scan cameras. Provides excellent consistency of image clarity and low distortion.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1426 |
|---|
Optics
| Focal length | 35 mm |
|---|---|
| F-number | F4.0 to F22 |
| Image size | Ø42 mm |
| Optical distortion | 0.5% |
| Magnification range | 0.001 x to 0.2 x |
| Working distance range | 150 mm to inf mm (tolerance: ± 5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M67 × P0.75 |
| Magnification at working distance (mm) | 150: 0.204; 200: 0.158; 250: 0.130; 300: 0.110; 350: 0.095; 400: 0.084; 450: 0.075; 500: 0.068; 550: 0.0621; 600: 0.057; 650: 0.053; 700: 0.049; 750: 0.046; 800: 0.043; 850: 0.041; 900: 0.039; 950: 0.037; 1000: 0.035; 1100: 0.032; 1200: 0.029; 1300: 0.027; 1400: 0.025; 1500: 0.023 |
| Object-to-image distance at working distance (mm) | 150: 287.65; 200: 336.50; 250: 385.77; 300: 435.27; 350: 484.90; 400: 534.61; 450: 584.39; 500: 634.204; 550: 684.06; 600: 733.93; 650: 783.83; 700: 833.73; 750: 883.66; 800: 933.57; 850: 985.52; 900: 1033.464; 950: 1083.47; 1000: 1133.361; 1100: 1233.29; 1200: 1333.23; 1300: 1433.17; 1400: 1533.12; 1500: 1633.08 |
| Field of view H x V (mm) at working distance (mm), sensor 29.9 x 22.4 mm | 150: 146.7 x 109.9; 200: 188.7 x 141.4; 250: 230.6 x 172.8; 300: 272.5 x 204.1; 350: 314.3 x 235.5; 400: 356.1 x 266.8; 450: 397.8 x 298.0; 500: 439.6 x 329.3; 550: 481.3 x 360.6; 600: 523.1 x 391.9; 650: 564.7 x 423.1; 700: 606.5 x 454.4; 750: 648.1 x 485.6; 800: 689.2 x 516.3; 850: 731.5 x 548.0; 900: 773.3 x 579.3; 950: 814.9 x 610.5; 1000: 856.7 x 641.8; 1100: 940.0 x 704.2; 1200: 1023.4 x 766.7; 1300: 1106.8 x 829.2; 1400: 1190.1 x 891.6; 1500: 1273.5 x 954.1 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | M58 × P0.75 |
|---|---|
| Flange back length | 11.48 mm |

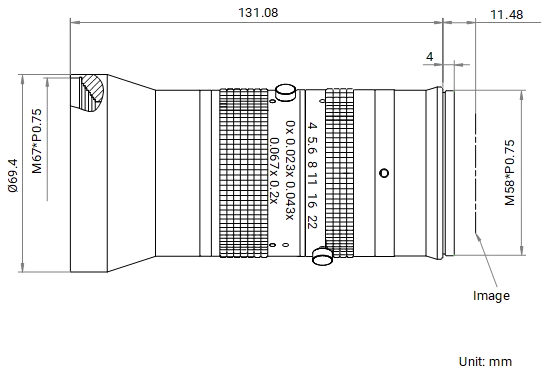

| Dimension | Ø69.4 mm ×131.1 mm (Ø2.7" × 5.2") |
| Weight | 760.84g |
| Shipping weight (estimated) | 1.17 kg |
Other models in the LS-FFL-S128 series lenses series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1425 | 25 mm · 0.001 x to 0.2 x | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-1427 | 50 mm · 0.02x to 0.5x | $419.00 | Ships in 2-3 weeks | View |
| LS-FFL-1428 | 80 mm · 0.041x to 0.39x | $969.00 | Ships in 2-3 weeks | View |
