Area scan cameras

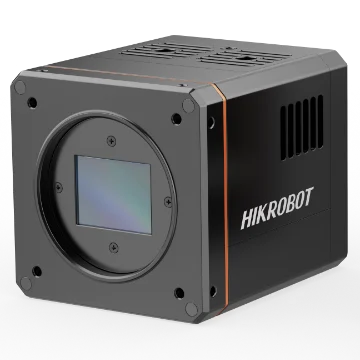

CH Series XoFLink Area Scan Cameras
- 3 models
- from $5,059.00
- Series HIK-CH-XOF
The CH Series XoFLink Area Scan Cameras is a range of 3 area scan cameras from Hikrobot, from $5,059.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 21 MP, XoFLink, Mono, 245.8 MP, XoFLink, Color, 245.8 MP, XoFLink, Mono
- Interface
- XoFLink
- Resolution
- 16-25 MP, 29 MP +
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- M58, M72
- Sensor format
- 4/3" - APS-C, Medium / large
Features
- Resolution of 5120 × 4096, pixel size of 4.5 μm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Supports ISP functions such as Binning and multi-group polling for LSC.
- Supports data transmission through two 50 Gbps fiber ports.
- Features an M58 mount; can be adapted to F-mount lenses via an adapter ring.
- Resolution 19200 × 12800, pixel size 2.81 µm
- ISP functions including binning, multi-set LSC cycling and FFC
- QSFP+ fiber port: up to 150 m with optical modules
All 3 models in the CH Series XoFLink Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CH210-90Q2M-M58S-NF | 21 MP, XoFLink, Mono | 5120 × 4096 | 541 fps @ 5120 × 4096 Mono 8 | QSFP28 × 2 | $5,059.00quote | View |
| MV-CH2450-10Q1M-M72-TF | 245.8 MP, XoFLink, Mono | 19200 × 12800 | 12.4 fps@19200 × 12800 Mono 8 | Camera side: 1 × QSFP+ port | $12,279.00quote | View |
| MV-CH2450-10Q1C-M72-TF | 245.8 MP, XoFLink, Color | 19200 × 12800 | 12.4 fps@19200 × 12800 Bayer RG 8 | Camera side: 1 × QSFP+ port | $12,279.00quote | View |
