Area scan cameras

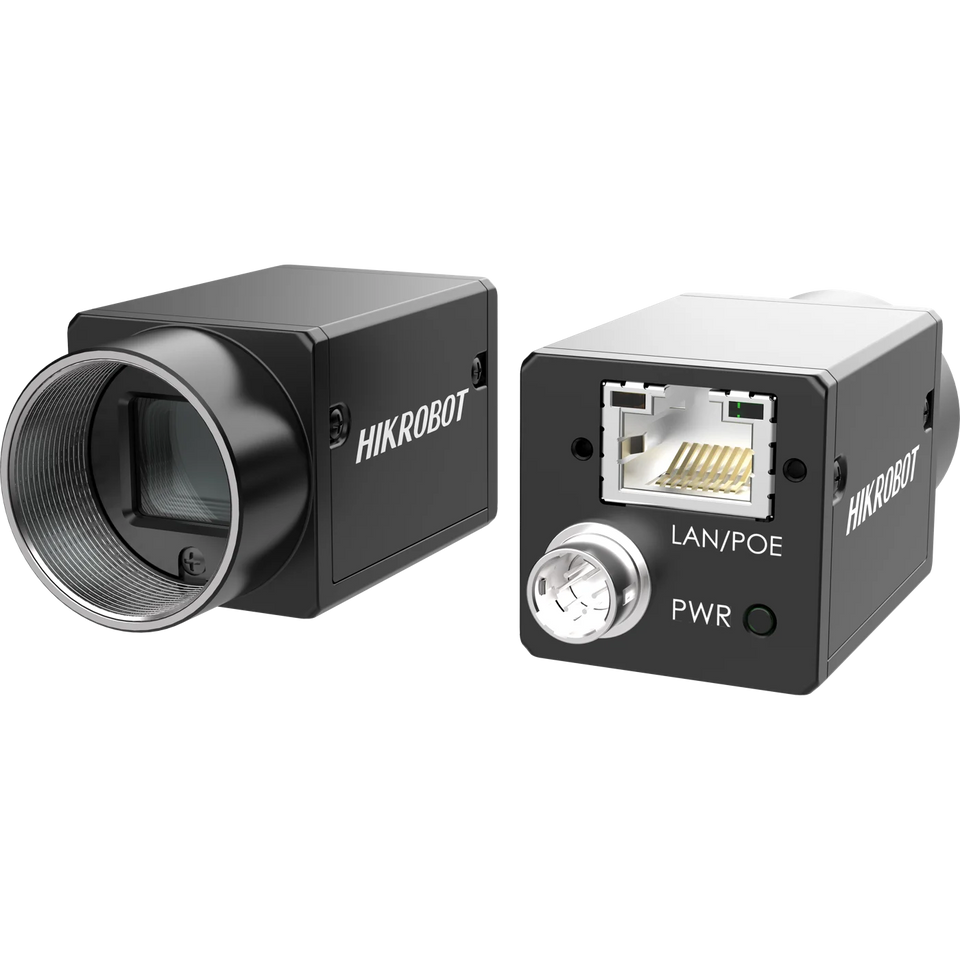

CE Series GigE Area Scan Cameras
- 7 models
- from $239.00
- Series HIK-CE-GIGE
The CE Series GigE Area Scan Cameras is a range of 7 area scan cameras from Hikrobot, from $239.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP, 1/2.7", GigE, Color, 1.3 MP, 1/2.7", GigE, Mono, 5 MP, 1/2.5", GigE, Color, 10.6 MP, 1/2.3", GigE, Color, 12.2 MP, 1/1.7", GigE, Color, 12.2 MP, 1/1.7", GigE, Mono, 20 MP, 1", GigE, Mono
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 1"
Features
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on protocol and standard.
- Up to 128 MB local memory for burst transmission and retransmission.
- Supports auto exposure control, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
All 7 models in the CE Series GigE Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CE013-80GM | 1.3 MP, 1/2.7", GigE, Mono | 1280 × 1024 | 89.9 fps @ 1280 × 1024 | 1/2.7" | $239.00quote | View |
| MV-CE013-80GC | 1.3 MP, 1/2.7", GigE, Color | 1280 × 1024 | 89.9 fps @ 1280 × 1024 | 1/2.7" | $239.00quote | View |
| MV-CE050-31GC | 5 MP, 1/2.5", GigE, Color | 2592 × 1944 | 24 fps @ 2592 × 1944 | 1/2.5" | $479.00quote | View |
| MV-CE100-30GC | 10.6 MP, 1/2.3", GigE, Color | 3840 × 2748 | 7 fps @ 3840 × 2748 | 1/2.3" | $689.00quote | View |
| MV-CE120-10GM | 12.2 MP, 1/1.7", GigE, Mono | 4024 × 3036 | 9.6 fps @ 4024 × 3036 | 1/1.7" | $739.00quote | View |
| MV-CE120-10GC | 12.2 MP, 1/1.7", GigE, Color | 4024 × 3036 | 9.6 fps @ 4024 × 3036 | 1/1.7" | $739.00quote | View |
| MV-CE200-10GM | 20 MP, 1", GigE, Mono | 5472 × 3648 | 5.9 fps @ 5472 × 3648 | 1" | $939.00quote | View |
