Area scan cameras

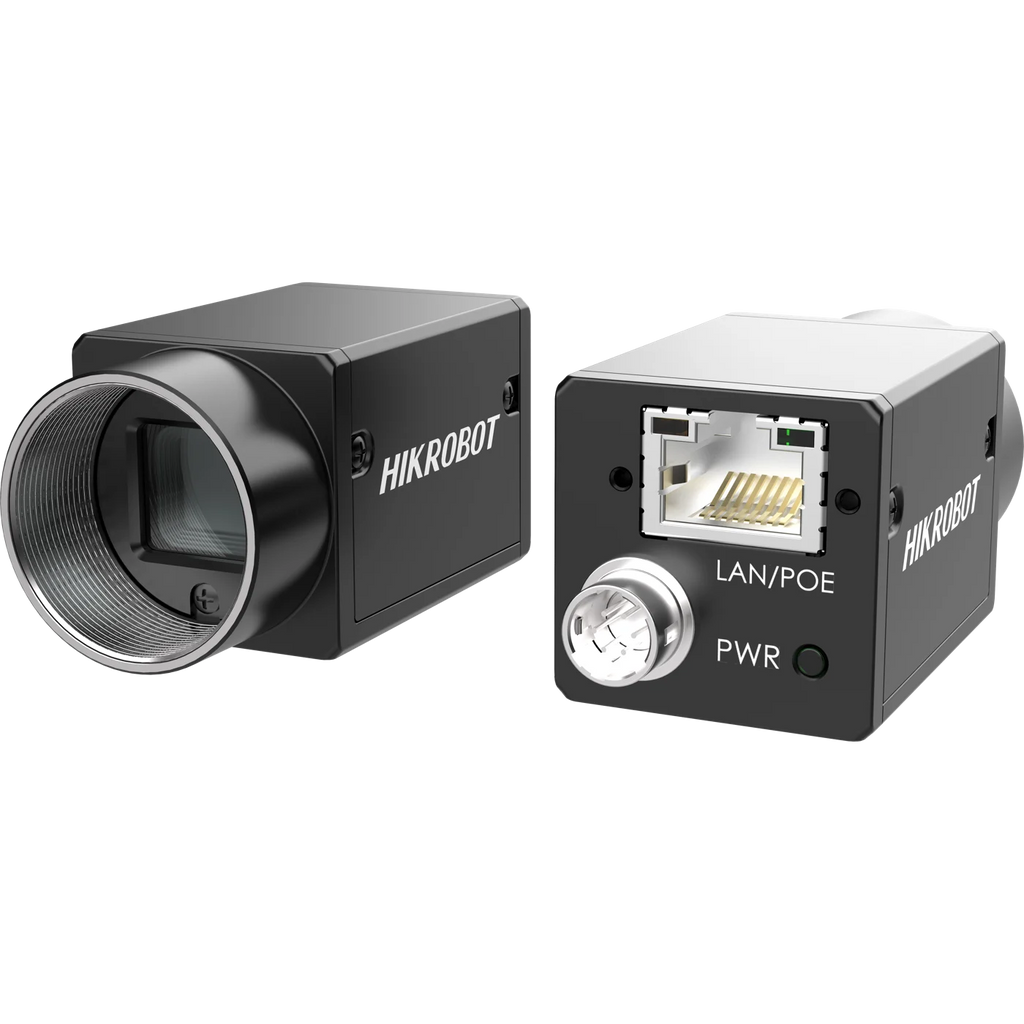

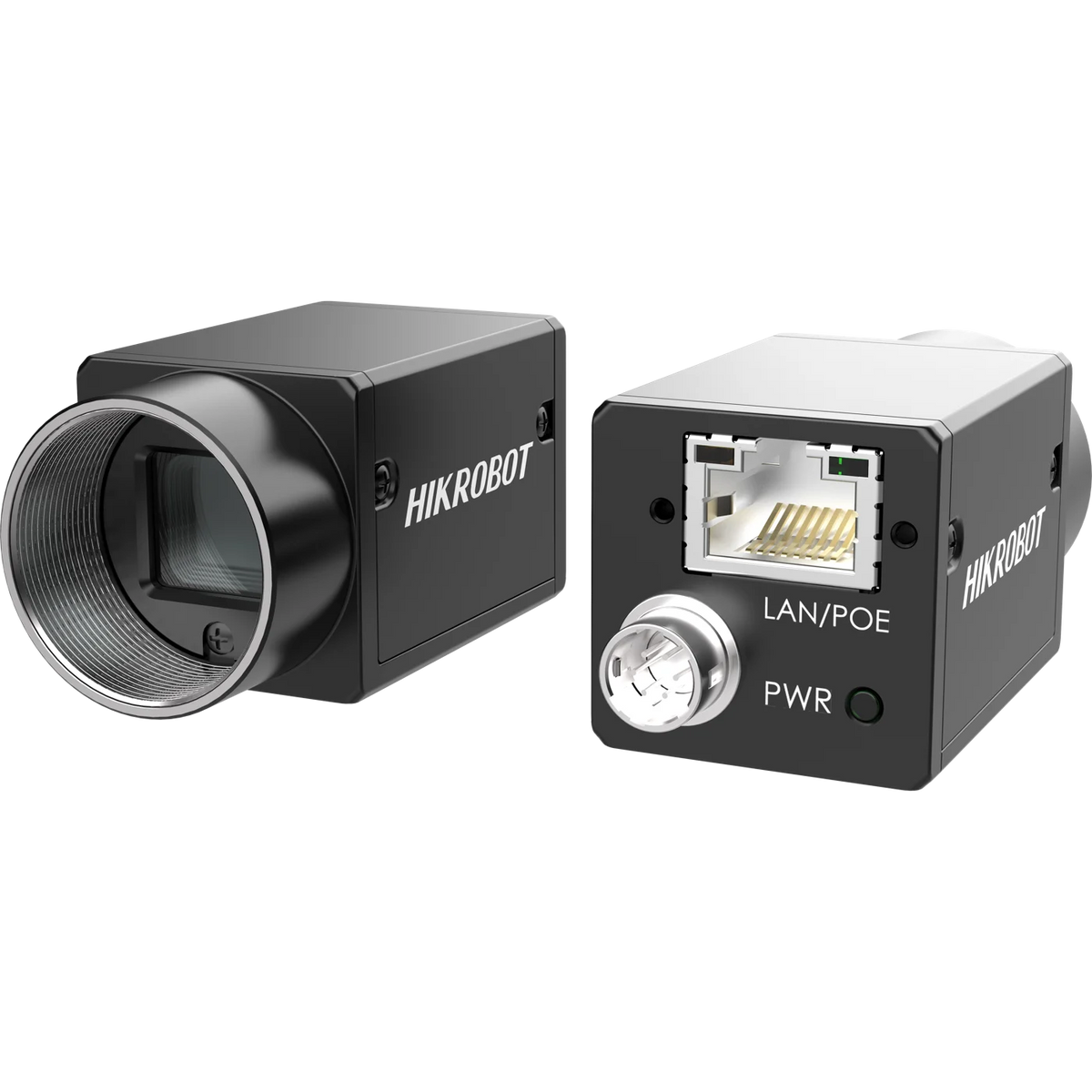

Hikrobot MV-CE013-80GC 1.3MP Area Scan Camera, GigE, SS, Color
Model MV-CE013-80GCHikrobot
- Resolution1280 × 1024
- SensorCMOS, global shutter
- Speed89.9 fps @ 1280 × 1024
- Lens mountC-mount
- Mono / colourColor
- Pixel size4.0 μm × 4.0 μm
$239.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.23 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CE013-80GC 1.3MP Area Scan Camera, GigE, SS, Color. Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CE013-80GC |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenlCam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | SS |
| Pixel size | 4.0 μm × 4.0 μm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 89.9 fps @ 1280 × 1024 |
| Dynamic range | 60 dB |
| SNR | 40 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 31 μs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Pixel format | Mono 8/10/12, Bayer BG 8/10/10p/12/12p, YUV422_YUYV_Packed, YUV422 Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Mono/color | Color |
Interfaces and I/O
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
|---|---|
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 2.6 W@12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 96 g (0.21 lb.) |
| Shipping weight (estimated) | 0.23 kg |
Other models in the CE Series GigE Area Scan Cameras series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-CE013-80GM | 1.3 MP, 1/2.7", GigE, Mono | $239.00 Quote | Ships in 2-3 weeks | View |
| MV-CE050-31GC | 5 MP, 1/2.5", GigE, Color | $479.00 Quote | Ships in 2-3 weeks | View |
| MV-CE100-30GC | 10.6 MP, 1/2.3", GigE, Color | $689.00 Quote | Ships in 2-3 weeks | View |
| MV-CE120-10GM | 12.2 MP, 1/1.7", GigE, Mono | $739.00 Quote | Ships in 2-3 weeks | View |
| MV-CE120-10GC | 12.2 MP, 1/1.7", GigE, Color | $739.00 Quote | Ships in 2-3 weeks | View |
| MV-CE200-10GM | 20 MP, 1", GigE, Mono | $939.00 Quote | Ships in 2-3 weeks | View |
