Area scan cameras

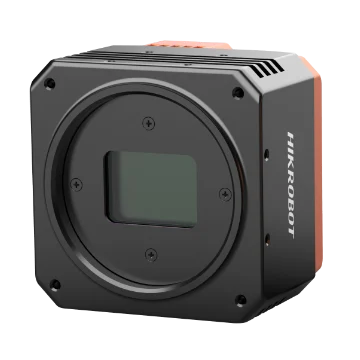

CH Series 10GigE Area Scan Cameras
- 60 models
- from $1,129.00
- Series HIK-CH-10G
The CH Series 10GigE Area Scan Cameras is a range of 60 area scan cameras from Hikrobot, from $1,129.00. It comes in 26 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 5 MP, 2/3", 10GigE, Color, 5 MP, 2/3", 10GigE, Mono, 12.3 MP, 1.1", 10GigE, Color, 12.3 MP, 1.1", 10GigE, Mono, 12.6 MP, 1.1", 10GigE, Color, 12.6 MP, 1.1", 10GigE, Mono, 24.5 MP, 1.2", 10GigE, Mono, 26.2 MP, 1.1", 10GigE, 26.2 MP, 1.1", 10GigE, Color, 26.2 MP, 1.1", 10GigE, Mono, 26.2 MP, 10GigE, Color, 26.2 MP, 10GigE, Mono, 31.4 MP, 10GigE, Color, 31.4 MP, 10GigE, Mono, 45.5 MP, 10GigE, Color, 45.5 MP, 10GigE, Mono and 10 more
- Interface
- 10GigE
- Resolution
- 5 MP, 12 MP, 16-25 MP, 29 MP +
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- M58, M72, C-mount, F-mount
- Sensor format
- 2/3", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large
Features
- 12 MP resolution, 3.45 µm pixel size
- Automatic or manual adjustment of gain, exposure time, gamma correction, LUT and more
- 10GigE interface, compatible with Gigabit Ethernet, transmission distance up to 100 m
- Flexible mounting: holes on the top, bottom and front panels to choose from as needed
- 25 MP resolution, 2.5 µm pixel size
- C-mount lens compatible to reduce optical system cost
- 65 MP resolution, 3.2 µm pixel size
- Automatic or manual adjustment of exposure time, gamma correction, LUT and more
All 60 models in the CH Series 10GigE Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MVGL-AC409G-68TC | 12.3 MP, 1.1", 10GigE, Color | 4096 × 3000 | 68.3 fps @4096 × 3000 Mono 8 | 1.1" | $1,129.00 | View |
| MV-HY2500-00W-BCN | 26.2 MP, 1.1", 10GigE, Color | 5120 × 5120 | 41.5 fps @5120 × 5120 Mono 8 | 1.1" | $1,489.00 | View |
| MV-HH2500-TM | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.5 fps @5120 × 5120 Mono 8 | 1.1" | $1,489.00 | View |
| MV-HY6500-00W-HFN | 65.4 MP, 10GigE, Mono | 9344 × 7000 | 17.2 fps @9344 × 7000 Mono 8 | 29.9 mm × 22.4 mm | $1,919.00 | View |
| MV-HY6500-00W-BFN | 65.4 MP, 10GigE, Color | 9344 × 7000 | 17.2 fps @9344 × 7000 Bayer RG 8 | 29.9 mm × 22.4 mm | $1,919.00 | View |
| MV-HH6500-TM-M-NF | 65.4 MP, 10GigE, Mono | 9344 × 7000 | 17.2 fps @9344 × 7000 Mono 8 | 29.9 mm × 22.4 mm | $1,919.00 | View |
| MV-CH250-90TM-M58S-NF | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.5 fps @ 5120 × 5120 Mono 8 | 1.1" | $2,649.00quote | View |
| MV-CH250-90TC-M58S-NF | 26.2 MP, 1.1", 10GigE, Color | 5120 × 5120 | 41.5 fps @ 5120 × 5120 Bayer BG 8 | 1.1" | $2,649.00quote | View |
| MV-CH250-90TM-M58S-NF V2 | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.6 fps @ 5120 × 5120 Mono 8 | 1.1" | $2,649.00quote | View |
| MV-CH250-90TC-M58S-NF V2 | 26.2 MP, 1.1", 10GigE, Color | 5120 × 5120 | 41.6 fps @ 5120 × 5120 Bayer BG 8 | 1.1" | $2,649.00quote | View |
| MV-CH050-90TM-C-NF | 5 MP, 2/3", 10GigE, Mono | 2448 × 2048 | 163.4 fps @ 2448 × 2048 Mono 8 | 2/3" | $3,599.00quote | View |
| MV-CH050-90TC-C-NF | 5 MP, 2/3", 10GigE, Color | 2448 × 2048 | 163.4 fps @ 2448 × 2048 Bayer GB 8 | 2/3" | $3,599.00quote | View |
| MV-CH120-15TM-M58S-NF | 12.3 MP, 1.1", 10GigE, Mono | 4096 × 3000 | 68.3 fps @ 4096 × 3000 | 1.1" | $3,929.00quote | View |
| MV-CH120-15TC-M58S-NF | 12.3 MP, 1.1", 10GigE, Color | 4096 × 3000 | 68.3 fps @ 4096 × 3000 | 1.1" | $3,929.00quote | View |
| MV-CH120-60TM-C-NF | 12.6 MP, 1.1", 10GigE, Mono | 4096 × 3072 | 80 fps @ 4096 × 3072 Mono 8 | 1.1" | $5,099.00quote | View |
| MV-CH120-60TC-C-NF | 12.6 MP, 1.1", 10GigE, Color | 4096 × 3072 | 80 fps @ 4096 × 3072 Bayer GB 8 | 1.1" | $5,099.00quote | View |
| MV-CH120-90TM-C-NF | 12.6 MP, 1.1", 10GigE, Mono | 4096 × 3072 | 94 fps @ 4096 × 3072 Mono 8 | 1.1" | $5,099.00quote | View |
| MV-CH120-90TC-C-NF | 12.6 MP, 1.1", 10GigE, Color | 4096 × 3072 | 94 fps @4096 × 3072 Bayer GB 8 | 1.1" | $5,099.00quote | View |
| MV-CH240-10TM-C-NN | 24.5 MP, 1.2", 10GigE, Mono | 5328 × 4600 | 35.1 fps @ 5328 × 4600 Mono 8 | 1.2" | $6,999.00quote | View |
| MV-CH240-10TM-M58S-NN | 24.5 MP, 1.2", 10GigE, Mono | 5328 × 4600 | 35.1 fps @5328 × 4600 Mono 8 | 1.2" | $7,109.00quote | View |
| MV-CH250-25TM-M58S-NF | 26.2 MP, 10GigE, Mono | 5120 × 5120 | 40 fps @ 5120 × 5120 Mono 8 | 23 mm × 23 mm | $7,349.00quote | View |
| MV-CH250-25TC-M58S-NF | 26.2 MP, 10GigE, Color | 5120 × 5120 | 40 fps @ 5120 × 5120 Bayer RG 8 | 23 mm × 23 mm | $7,349.00quote | View |
| MV-CH250-25TM-F-NF | 26.2 MP, 10GigE, Mono | 5120 × 5120 | 40 fps @ 5120 × 5120 Mono 8 | 23 mm × 23 mm | $7,349.00quote | View |
| MV-CH250-60TM-M58S-NF | 26.2 MP, 10GigE, Mono | 5120 × 5120 | 31.7 fps @ 5120 × 5120 Mono 8 | 23 mm × 23 mm | $7,349.00quote | View |
| MV-CH250-90TM-C-NF | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.5 fps @ 5120 × 5120 Mono 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-90TC-C-NF | 26.2 MP, 1.1", 10GigE, Color | 5120 × 5120 | 41.5 fps @ 5120 × 5120 Bayer BG 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-90TM-C-NF V2 | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.6 fps @ 5120 × 5120 Mono 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-90TC-C-NF V2 | 26.2 MP, 1.1", 10GigE, Color | 5120 × 5120 | 41.6 fps @ 5120 × 5120 Bayer BG 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-92TM-C-NF V2 | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.5 fps @ 5120 × 5120 Mono 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-92TC-C-NF V2 | 26.2 MP, 1.1", 10GigE, Color | 5120 × 5120 | 41.5 fps @ 5120 × 5120 Bayer BG 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-25TC-F-NF | 26.2 MP, 10GigE, Color | 5120 × 5120 | 40 fps @5120 × 5120 Bayer RG 8 | 23 mm × 23 mm | $7,349.00quote | View |
| MV-CH250-90TN-M58S-NF | 26.2 MP, 1.1", 10GigE | 5120 × 5120 | 41.5 fps @5120 × 5120 Mono 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-92TM-C-NF | 26.2 MP, 1.1", 10GigE, Mono | 5120 × 5120 | 41.5 fps @5120 × 5120 Mono 8 | 1.1" | $7,349.00quote | View |
| MV-CH250-60TM-M58S-NF V2 | 26.2 MP, 10GigE, Mono | 5120 × 5120 | 31.7 fps @5120 × 5120 Mono8 | 23 mm× 23 mm | $7,349.00quote | View |
| MV-CH250-90TN-M58S-NF V2 | 26.2 MP, 1.1", 10GigE | 5120 × 5120 | 41.6 fps @5120 × 5120 Mono 8 | 1.1" | $7,349.00quote | View |
| MV-CH470-10TC-M58S-NN | 45.5 MP, 10GigE, Color | 8192 × 5556 | 24 fps @8192 × 5556 Bayer RG 8 | 1.4” | $9,689.00quote | View |
| MV-CH470-10TM-M58S-NN | 45.5 MP, 10GigE, Mono | 8192 × 5556 | 24 fps @8192 × 5556 Mono 8 | 1.4” | $9,689.00quote | View |
| MV-CH500-90TM-F-NF | 49.1 MP, 10GigE, Mono | 7008 × 7000 | 15.5 fps @ 7008 × 7000 Mono 8 | 22.4 mm × 22.4 mm | $10,059.00quote | View |
| MV-CH500-90TM-F-NF V2 | 49.1 MP, 10GigE, Mono | 7008 × 7000 | 23.3 fps @ 7008 × 7000 Mono 8 | 22.4 mm × 22.4 mm | $10,059.00quote | View |
| MV-CH500-90TM-M58S-NF | 49.1 MP, 10GigE, Mono | 7008 × 7000 | 15.5 fps @ 7008 × 7000 Mono 8 | 22.4 mm × 22.4 mm | $10,059.00quote | View |
| MV-CH500-90TM-M58S-NF V2 | 49.1 MP, 10GigE, Mono | 7008 × 7000 | 23.3 fps @ 7008 × 7000 Mono 8 | 22.4 mm × 22.4 mm | $10,059.00quote | View |
| MV-CH500-90TC-M58S-NF | 49.1 MP, 10GigE, Color | 7008 × 7000 | 15.5 fps @ 7008 × 7000 Bayer BG 8 | 22.4 mm × 22.4 mm | $10,059.00quote | View |
| MV-CH500-90TC-M58S-NF V2 | 49.1 MP, 10GigE, Color | 7008 × 7000 | 23.3 fps @ 7008 × 7000 Bayer BG 8 | 22.4 mm × 22.4 mm | $10,059.00quote | View |
| MV-CH310-10TM-M58S-NN | 31.4 MP, 10GigE, Mono | 6464 × 4852 | 17.2 fps @ 6464 × 4852 Mono 8 | 22.3 mm × 16.7 mm | $10,069.00quote | View |
| MV-CH310-10TC-M58S-NN | 31.4 MP, 10GigE, Color | 6464 × 4852 | 17.2 fps @ 6464 × 4852 Bayer RG 8 | 22.3 mm × 16.7 mm | $10,069.00quote | View |
| MV-CH610-10TM-F-TF | 61 MP, 10GigE, Mono | 9568 × 6380 | 17.9 fps @ 9568 × 6380 Mono 8 | 36 mm × 24 mm | $11,219.00quote | View |
| MV-CH610-10TC-F-TF | 61 MP, 10GigE, Color | 9568 × 6380 | 17.9 fps @ 9568 × 6380 Bayer RG 8 | 36 mm × 24 mm | $11,219.00quote | View |
| MV-CH650-90TM-F-NF | 65.4 MP, 10GigE, Mono | 9344 × 7000 | 17.2 fps @ 9344 × 7000 Mono 8 | 29.9 mm × 22.4 mm | $11,609.00quote | View |
| MV-CH650-90TC-F-NF | 65.4 MP, 10GigE, Color | 9344 × 7000 | 17.2 fps @ 9344 × 7000 Bayer BG 8 | 29.9 mm × 22.4 mm | $11,609.00quote | View |
| MV-CH650-90TM-F-NF V2 | 65.4 MP, 10GigE, Mono | 9344 × 7000 | 17.4 fps @ 9344 × 7000 Mono 8 | 29.9 mm × 22.4 mm | $11,609.00quote | View |
| MV-CH650-90TC-F-NF V2 | 65.4 MP, 10GigE, Color | 9344 × 7000 | 17.4 fps @ 9344 × 7000 Bayer BG 8 | 29.9 mm × 22.4 mm | $11,609.00quote | View |
| MV-CH650-90TM-M58S-NF | 65.4 MP, 10GigE, Mono | 9344 × 7000 | 17.2 fps @ 9344 × 7000 Mono 8 | 29.9 mm × 22.4 mm | $11,789.00quote | View |
| MV-CH650-90TC-M58S-NF | 65.4 MP, 10GigE, Color | 9344 × 7000 | 17.2 fps @ 9344 × 7000 Bayer BG 8 | 29.9 mm × 22.4 mm | $11,789.00quote | View |
| MV-CH650-90TM-M58S-NF V2 | 65.4 MP, 10GigE, Mono | 9344 × 7000 | 17.4 fps @ 9344 × 7000 Mono 8 | 29.9 mm × 22.4 mm | $11,789.00quote | View |
| MV-CH650-90TC-M58S-NF V2 | 65.4 MP, 10GigE, Color | 9344 × 7000 | 17.4 fps @ 9344 × 7000 Bayer BG 8 | 29.9 mm × 22.4 mm | $11,789.00quote | View |
| MV-CH1030-90TM-M58S-NN | 103.6 MP, 10GigE, Mono | 11264 × 9200 | 11 fps @ 11264 × 9200 Mono 8 | 46.6 mm | $14,609.00quote | View |
| MV-CH1030-90TC-M58S-NN | 103.6 MP, 10GigE, Color | 11264 × 9200 | 11 fps @ 11264 × 9200 Bayer GB 8 | 46.6 mm | $14,609.00quote | View |
| MV-CH1510-10FM-TEC-M72 | 151.2 MP, 10GigE, Mono | 14208 × 10640 | 6.2 fps @14208 × 10640 Mono 8 | 66.7 mm | $17,649.00quote | View |
| MV-CH1510-10FM-M72-TF | 151.2 MP, 10GigE, Mono | 14208 × 10640 | 6.2 fps @ 14208 × 10640 Mono 8 | 66.7 mm | $34,369.00quote | View |
| MV-CH1510-10FC-M72-TF | 151.2 MP, 10GigE, Color | 14208 × 10640 | 6.2 fps @14208 × 10640 Bayer RG 8 | 66.7 mm | $34,369.00quote | View |
