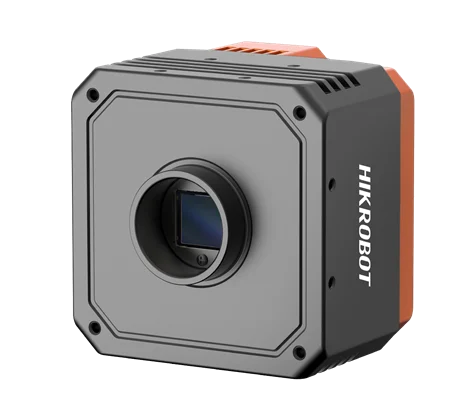

Hikrobot MV-CH250-90TM-C-NF V2 25MP Area Scan Camera, 10GigE, GMAX0505, Mono, C-mount, with fan, V2
  • Hikrobot MV-CH250-90TM-C-NF V2 25MP Area Scan Camera, 10GigE, GMAX0505, Mono, C-mount, with fan, V2

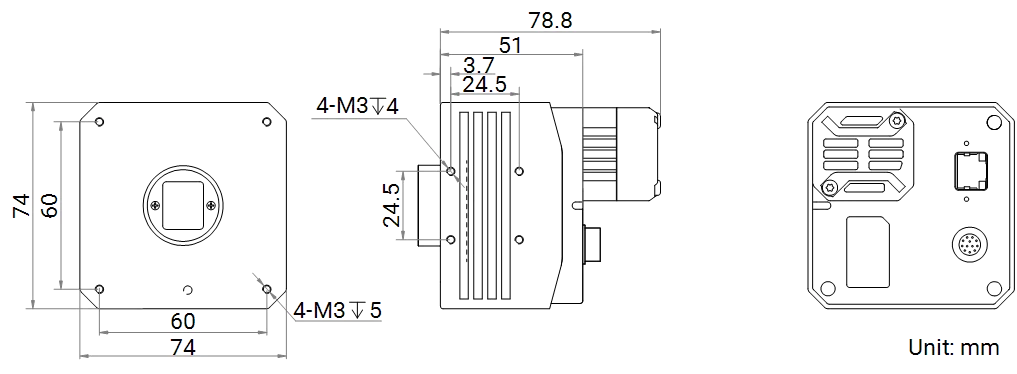

  • MV-CH250-90TM-C-NF V2 dimensions (mm)

Area scan cameras

Hikrobot MV-CH250-90TM-C-NF V2 25MP Area Scan Camera, 10GigE, GMAX0505, Mono, C-mount, with fan

Model MV-CH250-90TM-C-NF V2Hikrobot

  • Resolution5120 × 5120
  • SensorCMOS, global shutter
  • Speed41.6 fps @ 5120 × 5120 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
  • Pixel size2.5 μm × 2.5 μm
$7,349.00
List price

Ships in 2-3 weeks

0.93 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Area scan cameras

MV-CH250-90TM-C-NF V2: resolution 5120 x 5120; sensor type CMOS, global shutter; sensor size 1.1"; max. frame rate 41.6 fps @ 5120 x 5120 Mono 8; mono/color Mono.

Hikrobot MV-CH250-90TM-C-NF V2 25MP Area Scan Camera, 10GigE, GMAX0505, Mono, C-mount, with fan, V2. Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm. Compatible with C-mount lenses to reduce costs.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH250-90TM-C-NF V2
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Max. frame rate41.6 fps @ 5120 × 5120 Mono 8
Dynamic range63 dB
SNR36 dB
Gain1.0x to 5.0x
Exposure timeUltraShort exposure mode: 3 μs to 8 μs; Standard exposure mode: 9 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 ( under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC
Power consumptionTyp. 9.9 W @ 12 VDC

Mechanical

Lens mountC-mount; M58*0.75, flange back length 11.48 mm
Dimension74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
WeightC-mount: Approx. 590 g (1.3 lb.); M58-mount: Approx. 550 g (1.2 lb.)
Shipping weight (estimated)0.93 kg

Engineering data

Field of view and resolution with the MV-CH250-90TM-C-NF V2

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area12.8 × 12.8 mm1.1" optical format
Lens image circle needed≥ Ø 18.1 mmC-mount
Pixel pitch2.5 µm5120 x 5120 px
Image data at max frame rate1091 MB/sCalculated: 41.6 fps × 5120 × 5120 px at 8 bit · 10GigE carries 1250 MB/s nominal
With a 16 mm lens at 500 mm400 × 400 mm0.078 mm per pixel
Dynamic range63 dB
SNR36 dB
Power consumption9.9 Wtyp. at 12 V DC
ShutterGlobal
Exposure range9 µs to 10 sstandard mode
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm480 × 480 mm0.094 mm per pixel800 × 800 mm0.156 mm per pixel1600 × 1600 mm0.312 mm per pixel
12 mm320 × 320 mm0.062 mm per pixel533 × 533 mm0.104 mm per pixel1067 × 1067 mm0.208 mm per pixel
16 mm240 × 240 mm0.047 mm per pixel400 × 400 mm0.078 mm per pixel800 × 800 mm0.156 mm per pixel
25 mm154 × 154 mm0.03 mm per pixel256 × 256 mm0.05 mm per pixel512 × 512 mm0.1 mm per pixel
35 mm110 × 110 mm0.021 mm per pixel183 × 183 mm0.036 mm per pixel366 × 366 mm0.071 mm per pixel
50 mm76.8 × 76.8 mm0.015 mm per pixel128 × 128 mm0.025 mm per pixel256 × 256 mm0.05 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 19.3 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 19.3 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 19.3 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 19.3 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 19.3 mm diagonal; this camera's sensor is 18.1 mm

Covers up to 19.3 mm diagonal; this camera's sensor is 18.1 mm

Cables and frame grabbers

Other models in the CH Series 10GigE Area Scan Camera series

See all 60 models
ModelResolutionSensorSpeedPriceAvailabilityLink
MV-CH250-90TM-C-NF V2This model5120 × 5120CMOS, global shutter41.6 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks
MV-CH120-60TM-C-NF4096 × 3072CMOS, global shutter80 fps @ 4096 × 3072 Mono 8$5,099.00 Quote Ships in 2-3 weeks View
MV-CH120-60TC-C-NF4096 × 3072CMOS, global shutter80 fps @ 4096 × 3072 Bayer GB 8$5,099.00 Quote Ships in 2-3 weeks View
MV-CH120-90TM-C-NF4096 × 3072CMOS, global shutter94 fps @ 4096 × 3072 Mono 8$5,099.00 Quote Ships in 2-3 weeks View
MV-CH120-90TC-C-NF4096 × 3072CMOS, global shutter94 fps @ 4096 × 3072 Bayer GB 8$5,099.00 Quote Ships in 2-3 weeks View
MV-CH240-10TM-C-NN5328 × 4600CMOS, global shutter35.1 fps @ 5328 × 4600 Mono 8$6,999.00 Quote Ships in 2-3 weeks View
MV-CH240-10TM-M58S-NN5328 × 4600CMOS, global shutter35.1 fps @ 5328 × 4600 Mono 8$7,109.00 Quote Ships in 2-3 weeks View
MV-CH250-25TM-M58S-NF5120 × 5120CMOS, global shutter40 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-25TC-M58S-NF5120 × 5120CMOS, global shutter40 fps @ 5120 × 5120 Bayer RG 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-25TM-F-NF5120 × 5120CMOS, global shutter40 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-60TM-M58S-NF5120 × 5120CMOS, global shutter31.7 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-90TM-C-NF5120 × 5120CMOS, global shutter41.5 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-90TC-C-NF5120 × 5120CMOS, global shutter41.5 fps @ 5120 × 5120 Bayer BG 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-90TC-C-NF V25120 × 5120CMOS, global shutter41.6 fps @ 5120 × 5120 Bayer BG 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-92TM-C-NF V25120 × 5120CMOS, global shutter41.5 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-92TC-C-NF V25120 × 5120CMOS, global shutter41.5 fps @ 5120 × 5120 Bayer BG 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-25TC-F-NF5120 × 5120CMOS, global shutter40 fps @ 5120 × 5120 Bayer RG 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-90TN-M58S-NF5120 × 5120CMOS, global shutter41.5 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-92TM-C-NF5120 × 5120CMOS, global shutter41.5 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-60TM-M58S-NF V25120 × 5120CMOS, global shutter31.7 fps @ 5120 × 5120 Mono8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH250-90TN-M58S-NF V25120 × 5120CMOS, global shutter41.6 fps @ 5120 × 5120 Mono 8$7,349.00 Quote Ships in 2-3 weeks View
MV-CH470-10TC-M58S-NN8192 × 5556CMOS, rolling shutter24 fps @ 8192 × 5556 Bayer RG 8$9,689.00 Quote Ships in 2-3 weeks View
MV-CH470-10TM-M58S-NN8192 × 5556CMOS, rolling shutter24 fps @ 8192 × 5556 Mono 8$9,689.00 Quote Ships in 2-3 weeks View
MV-CH500-90TM-F-NF7008 × 7000CMOS, global shutter15.5 fps @ 7008 × 7000 Mono 8$10,059.00 Quote Ships in 2-3 weeks View
MV-CH500-90TM-F-NF V27008 × 7000CMOS, global shutter23.3 fps @ 7008 × 7000 Mono 8$10,059.00 Quote Ships in 2-3 weeks View
