Area scan cameras

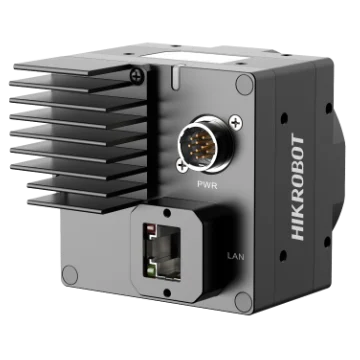

Hikrobot MV-CH470-10TM-M58S-NN 47 MP 10GigE area scan camera, IMX492, Mono, M58 mount, Fanless
Model MV-CH470-10TM-M58S-NNHikrobot
- Resolution8192 × 5556
- SensorCMOS, rolling shutter
- Speed24 fps @8192 × 5556 Mono 8
- Lens mountM58
- Mono / colourMono
- Pixel size2.315 μm × 2.315 μm
$9,689.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.53 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CH470-10TM-M58S-NN 47 MP 10GigE area scan camera, IMX492, Mono, M58 mount, Fanless. Resolution 8192 × 5556, pixel size 2.315 μm Rolling-shutter CMOS with high dynamic range, good SNR and excellent image quality
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CH470-10TM-M58S-NN |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, rolling shutter |
|---|---|
| Sensor model | Sony IMX492 |
| Pixel size | 2.315 μm × 2.315 μm |
| Sensor size | 1.4” |
| Resolution | 8192 × 5556 |
| Max. frame rate | 24 fps @8192 × 5556 Mono 8 |
| Dynamic range | 66.6 dB |
| SNR | 41.9 dB |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 8 μs ~ 10 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-shot exposure mode, Global Reset and Rolling supported |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
Interfaces and I/O
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
|---|---|
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
|---|
Electrical
| Power supply | 9 ~ 24 VDC |
|---|---|
| Power consumption | 9.6 W@12 VDC |

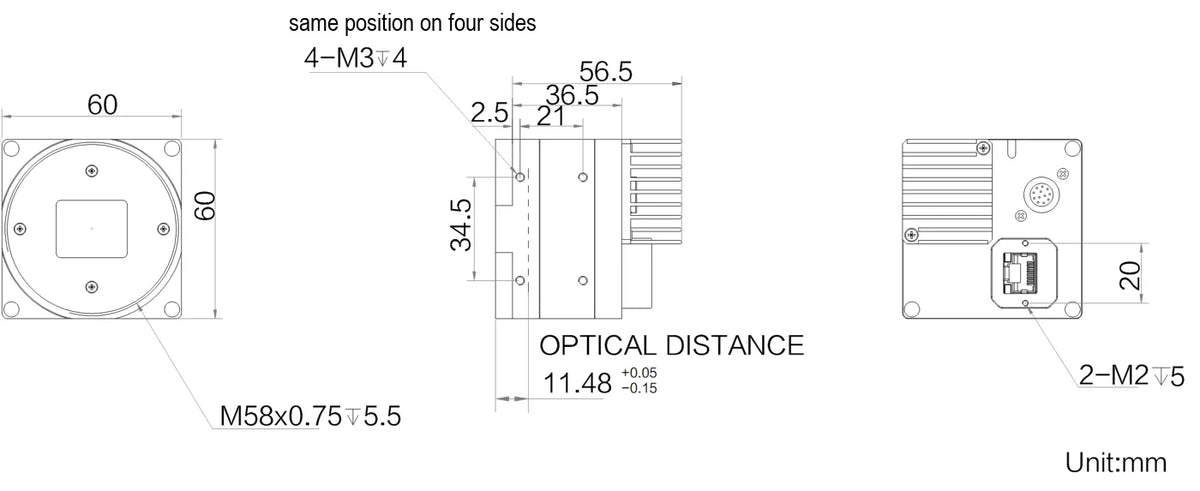

Mechanical
| Lens mount | M58*0.75, flange back length 11.48 mm |
|---|---|
| Dimension | 60 mm × 60 mm × 56.5 mm |
| Weight | Approx. 308.4 g |
| Shipping weight (estimated) | 0.53 kg |
