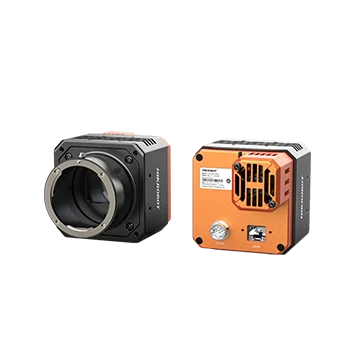

Hikrobot MV-CH650-90TC-F-NF 65MP Area Scan Camera, 10GigE, GMAX3265, Color, F-mount, with fan

Model MV-CH650-90TC-F-NFHikrobot

  • Resolution9344 × 7000
  • SensorCMOS, global shutter
  • Speed17.2 fps @ 9344 × 7000 Bayer BG 8
  • Lens mountF-mount
  • Mono / colourColor
  • Pixel size3.2 μm × 3.2 μm
$11,609.00
List price

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.94 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CH650-90TC-F-NF: resolution 9344 x 7000; sensor type CMOS, global shutter; sensor size 29.9 mm x 22.4 mm; dynamic range 66 dB; mono/color Color.

Hikrobot MV-CH650-90TC-F-NF 65MP Area Scan Camera, 10GigE, GMAX3265, Color, F-mount, with fan. Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm. Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH650-90TC-F-NF
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3265
Pixel size3.2 μm × 3.2 μm
Sensor size29.9 mm × 22.4 mm
Resolution9344 × 7000
Max. frame rate17.2 fps @ 9344 × 7000 Bayer BG 8
Dynamic range66 dB
SNR40 dB
Gain1.25× to 6×
Exposure time18 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12, Bayer 8/10/10p/12/12p, YUV422 8, YUV422_8_YUYV, RGB 8, BGR 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC
Power consumptionTyp. 11.6 W @ 12 VDC

Mechanical

Lens mountF-mount, flange back length 46.5 mm
DimensionF-mount with fan: 74 mm × 74 mm × 84.8 mm (2.9" × 2.9" × 3.3")
WeightF-mount with fan: approx. 600 g (1.3 lb.)
Shipping weight (estimated)0.94 kg

Engineering data

Field of view and resolution with the MV-CH650-90TC-F-NF

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area29.9 × 22.4 mmLarge format optical format
Lens image circle needed≥ Ø 37.4 mmF-mount
Pixel pitch3.2 µm9344 x 7000 px
Image data at max frame rate1125 MB/sCalculated: 17.2 fps × 9344 × 7000 px at 8 bit · 10GigE carries 1250 MB/s nominal
With a 35 mm lens at 500 mm427 × 320 mm0.046 mm per pixel
Dynamic range66 dB
SNR40 dB
Power consumption11.6 Wtyp. at 12 V DC
ShutterGlobal
Exposure range18 µs to 10 s
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
16 mm561 × 420 mm0.06 mm per pixel934 × 700 mm0.1 mm per pixel1869 × 1400 mm0.2 mm per pixel
25 mm359 × 269 mm0.038 mm per pixel598 × 448 mm0.064 mm per pixel1196 × 896 mm0.128 mm per pixel
35 mm256 × 192 mm0.027 mm per pixel427 × 320 mm0.046 mm per pixel854 × 640 mm0.091 mm per pixel
50 mm179 × 134 mm0.019 mm per pixel299 × 224 mm0.032 mm per pixel598 × 448 mm0.064 mm per pixel
75 mm120 × 89.6 mm0.013 mm per pixel199 × 149 mm0.021 mm per pixel399 × 299 mm0.043 mm per pixel
100 mm89.7 × 67.2 mm0.01 mm per pixel150 × 112 mm0.016 mm per pixel299 × 224 mm0.032 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

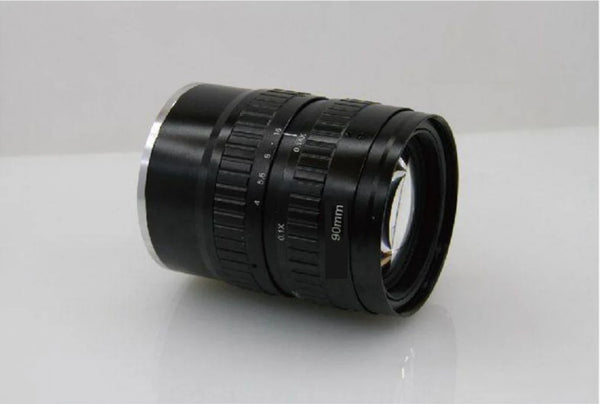

Lenses for this F-mount camera

Covers up to 46 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 60 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 56 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 46 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 43.2 mm diagonal; this camera's sensor is 37.4 mm

Covers up to 64 mm diagonal; this camera's sensor is 37.4 mm

Cables and frame grabbers

Other models in the CH Series 10GigE Area Scan Camera series

See all 60 models
ModelResolutionSensorSpeedPriceAvailabilityLink
MV-CH650-90TC-F-NFThis model9344 × 7000CMOS, global shutter17.2 fps @ 9344 × 7000 Bayer BG 8$11,609.00 Quote Ships in 2-3 weeks
