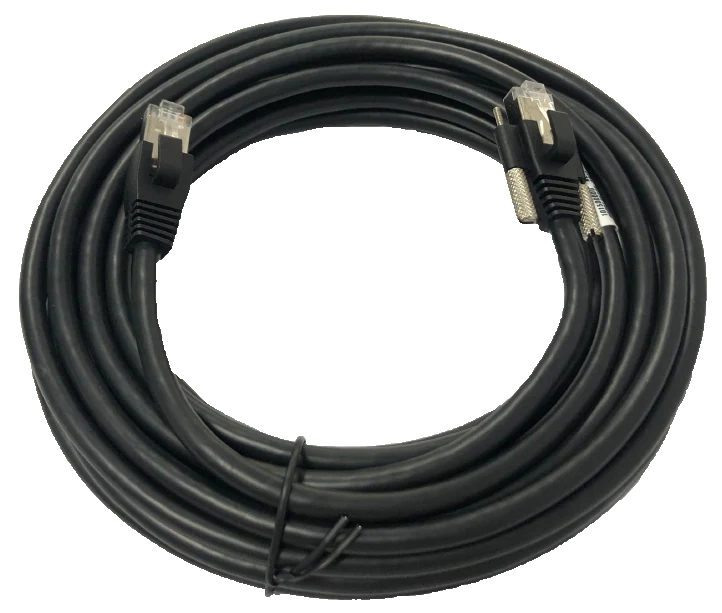

Camera Data Cable, RJ45 (with locking stud) to RJ45, 1 m (LS-CBL-0107)
Model LS-CBL-0107
- Length1 m
- End ARJ45 (with locking stud)
- End BRJ45
- Diameter6.2 mm
- Max. voltage30 VDC
- JacketPVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, RJ45 (with locking stud) to RJ45, 1 m. The RJ45 Standard Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0107 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | RJ45 (with locking stud) |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.2 mm |
| Cable mechanical | 4P*26#+AB |
| Cable color | Black |
| Connector durability | ≥750 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 1 m |
|---|---|
| Min. bending radius | 74.4 mm |
| Shipping weight (estimated) | 0.31 kg |
